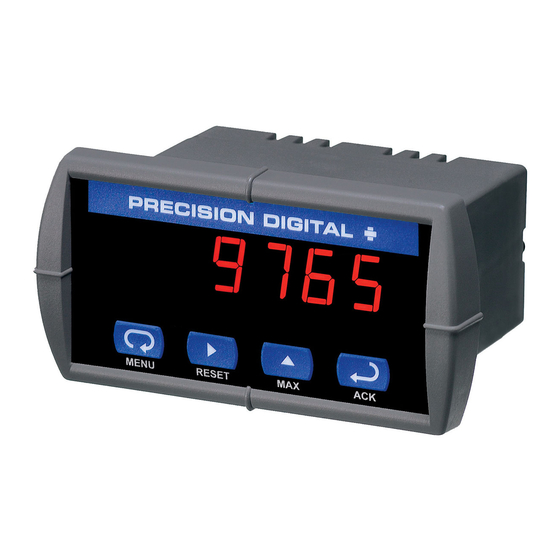

Trident Series Process & Temperature Meters
TRIDENT
•
4-20 mA, ± 10 V, TC & RTD Inputs
•
4-Digit Display, 0.56" (14.2 mm) or 1.20" (30.5 mm)
•
Linear or Square Root with Low-Flow Cutoff
•
Operating temperature range of between -40°C and 65°C
•
Max/Min Display
•
Type 4X, NEMA 4X, IP65 Front
•
Universal Power Supply 85-265 VAC
•
12-36 VDC/12-24 VAC Power Option
•
2 Relays + 4-20 mA Output Option
•
24 VDC @ 200 mA Transmitter Power Supply Options
•
USB, RS-232, & RS-485 Serial Communication Options
•
Shallow Depth Case 3.6" Behind Panel
•
Free Modbus
®
RTU & LabVIEW™ Driver
•
Copy Meter Settings to Other Meters
•
®
Free MeterView
•
Sunlight Readable Display
Precision Digital corPoration
Software - Configuration & Data Acquisition
PROCESS & TEMP
www.predig.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PRECISION DIGITAL Trident PD765
Summary of Contents for PRECISION DIGITAL Trident PD765
- Page 1 • Shallow Depth Case 3.6" Behind Panel • Free Modbus ® RTU & LabVIEW™ Driver • Copy Meter Settings to Other Meters • ® Free MeterView Software - Configuration & Data Acquisition • Sunlight Readable Display Precision Digital corPoration www.predig.com...
- Page 2 Trident meter. A serial adapter and to 30 feet! Both meters are available with all Trident features. Precision Digital’s free MeterView software allows the Trident to be programmed from a computer and to connect to a PC The intensity of the display on both versions of the Trident can be for data acquisition.
- Page 3 The Trident is easily setup and programmed using the simple four- button programming method. The meter can also be programmed using a PC and Precision Digital’s free MeterView software or “cloned” with the Copy function. There is only one switch on the entire meter, no jumpers, and no need to ever open the case.
-
Page 4: Data Acquisition
Process inputs can be scaled with or without applying an input provide a local display of the process. Precision Digital has the for virtually any engineering units. Temperature inputs can be... -
Page 5: Quick Installation
PD765 Trident Series Process & Temperature Meters NEMA 4 & 4X ENCLOSURES SPECIFICATIONS Thermoplastic and stainless steel NEMA 4X, and painted steel Except where noted all specifications apply to operation at +25°C. NEMA 4 enclosures for up to 10 Trident meters are available. General Please visit our Enclosure Selection Utility at www.predig.com/ Display: Trident: 0.56"... -
Page 6: Isolated 4-20 Ma Transmitter Output
