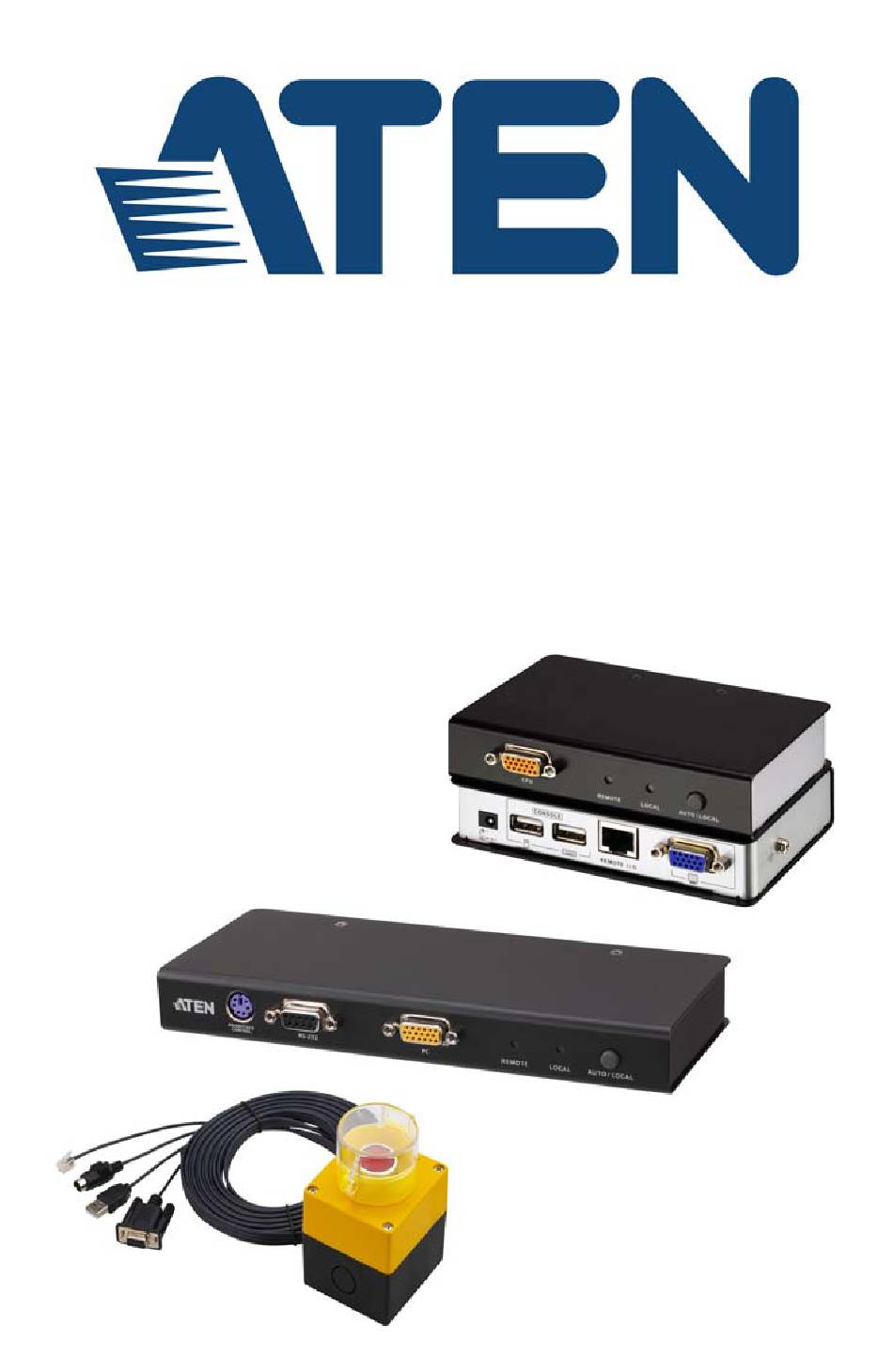

- Page 1 USB-PS/2 KVM Adapter Module KA7171 / KA7171AK User Manual www.aten.com...
-
Page 2: Emc Information
KA7171 / KA7171AK User Manual EMC Information FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 3: User Information
KA7171 / KA7171AK User Manuall User Information Online Registration Be sure to register your product at our online support center: International http://eservice.aten.com Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-400-810-0-810 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America... -
Page 4: Package Contents
Copyright © 2019 ATEN® International Co., Ltd. Manual Date: 2019-08-21 Altusen and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. All other brand names and trademarks are the registered property of their respective owners. -
Page 5: Table Of Contents
KA7171 / KA7171AK ........ - Page 6 KA7171 / KA7171AK User Manual International ..........18 North America .
-
Page 7: About This Manual
KA7171 / KA7171AK User Manuall About This Manual This User Manual is provided to help you get the most from your KVM over IP Console Station. It covers all aspects of installation, configuration and operation. An overview of the information found in the manual is provided below. -
Page 8: Conventions
For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com... -
Page 9: Chapter 1. Introduction
KVM over IP Switch or Matrix KVM installation. The KA7171 / KA7171AK allows a PS/2 or USB server to be connected to the switch via Cat 5e/6 cable and provides an extra console via USB keyboard, USB mouse, and monitor to use for extended local operations. -
Page 10: Features
KA7171 / KA7171AK User Manual eatures KA7171 / KA7171AK Cat 5e/6 cable connects the device and KVM switch Supports computers with PS/2 or USB keyboards and mice Local console operation - control your system from the extended USB keyboard, USB mouse, and monitor via local console ... -
Page 11: Requirement
Remote LED Lights green to indicate that the local console access is active. Local LED Lights green to indicate that the KA7171 link to the KVM switch is active. Flashing indicates that the KVM switch is sending/receiving data to/from the console. -
Page 12: Ka7171Ak Front View
KA7171 / KA7171AK User Manual KA7171AK Front View Component Description PRIORITIZED Connects the 2XRT-0015G for access control. CONTROL Port RS-232 Serial Port Currently not functional, reserved for future expansion. PC Port Plug the appropriate connectors on the USB- PS/2 KVM cables set to a local computer. -
Page 13: Ka7171Ak Rear View
RS-232 Serial Port Currently not functional, reserved for future expansion. PRIORITIZED Currently not functional, reserved for future CONTROL Port expansion. 5V Port The power supply for 2XRT-0015G. KA7171 / KA7171AK Side View Component Description Grounding Terminal The wire used to ground the unit connects here. -
Page 14: 2Xrt-0015G Kvm Over Ip Access Control Box Front View
KA7171 / KA7171AK User Manual 2XRT-0015G KVM over IP Access Control Box Front View Note: 2XRT-0015G KVM over IP Access Control Box only comes in the KA7171AK package. Component Description Indication Control Button / LED Press the button to enable or disable Lights red remote over IP control access. -
Page 15: Chapter 2. Hardware Setup
Chapter 2. Hardware Setup Chapter 2 Hardware Setup Overview This chapter outlines different ways of mounting your KVM over IP Console Station as well as a quick hardware connection summary in the form of single stage installation. Before You Begin 1. -
Page 16: Grounding
To prevent damage to your installation, it is important that all connected devices are properly grounded. 1. Use a grounding wire to ground the KA7171 / KA7171AK by con- necting one end of the wire to the grounding terminal, and the other end of the wire to a suitable ground object. - Page 17 Chapter 2. Hardware Setup 2. The second method is to use the STP cable shielding for grounding. In this case, make sure that the shielding makes tight contact with the top inside of the RJ-45 connector as shown here: In either case, make sure that the sides of the RJ-45 Connector make tight contact with the grounding contacts on the sides of the RJ-45 socket.
-
Page 18: Installation
Console section on the rear of the KA7171 / KA7171AK Unit. Note: The KA7171 rear panel is similar to the KA7171AK, except that it does not have the (no.4) PRIORITIZED CONTORL Port, (no.5) the RS- 232 Serial Port, and the (no.6) 5V Port. -
Page 19: Hot Plugging
4. Plug one end of the Cat 5e cable into the KA7171 / KA7171AK ’s I/ O port. Plug the other end of the Cat 5e cable into the port of the KVM switch. - Page 20 KA7171 / KA7171AK User Manual This Page Intentionally Left Blank...
-
Page 21: Chapter 3. Operation
LED Display for KA7171 / KA7171AK The KA7171 / KA7171AK has two LEDs to indicate the operating status, as shown in the table below: Indication Local (Green) Lights to indicate that the local console access is active. -
Page 22: 2Xrt-0015G Basic Function
KA7171 / KA7171AK User Manual 2XRT-0015G Basic Function Note: 2XRT-0015G KVM over IP Access Control Box only comes in the KA7171AK package. 2XRT-0015G is a control button accessory to enable / disable remote KVM over IP access. Two statuses: Button Status... -
Page 23: Appendix
Appendix Safety Instructions General This product is for indoor use only. Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. Do not place the device on any unstable surface (cart, stand, table, etc.). - Page 24 KA7171 / KA7171AK User Manual The device is equipped with a 3-wire grounding type plug. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not attempt to defeat the purpose of the grounding-type plug.
- Page 25 Appendix The device exhibits a distinct change in performance, indicating a need for service. The device does not operate normally when the operating instructions are followed. Only adjust those controls that are covered in the operating instructions. Improper adjustment of other controls may result in damage that will require extensive work by a qualified technician to repair.
-
Page 26: Technical Support
KA7171 / KA7171AK User Manual Technical Support International For online technical support – including troubleshooting, documentation, and software updates: http://eservice.aten.com For telephone support, see Telephone Support on page iii. North America Email Support support@aten-usa.com Online Troubleshooting http://eservice.aten.com Technical... -
Page 27: Specifications
Appendix Specifications Function KA7171 KA7171AK Connectors Console Ports 2 x USB Type A Female 2 x USB Type A Female (White) (White) 1 x HDB-15 Female 1 x HDB-15 Female (Blue) (Blue) KVM Ports 1 x SPHD-18 Female 1 x SPHD-18 Female... - Page 28 KA7171 / KA7171AK User Manual Function KA7171 KA7171AK Operating Temperature 0 - 50 ºC 0 - 50 ºC Storage Temperature -20 - 60 ºC -20 - 60 ºC Physical Properties Housing Metal Metal Weight 0.33 kg (0.73 lb) 0.49 kg (1.08 lb) Dimensions (L x W x H) 12.70 x 8.65 x 2.50 cm...
-
Page 29: Troubleshooting
Appendix Troubleshooting General Operation Problem Resolution Sudden loss of network Close your connection to the KVM over IP console connection. station. Wait approximately 30 seconds, and log in again. The display on the client Switch ports to a port with a different resolution, then computer is distorted and switch back. -
Page 30: Limited Warranty
ATEN will provide a repair service, without charge, during the Warranty Period. If a product is detective, ATEN will, at its discretion, have the option to (1) repair said product with new or repaired components, or (2) replace the entire product with an identical product or with a similar product which fulfills the same function as the defective product.
