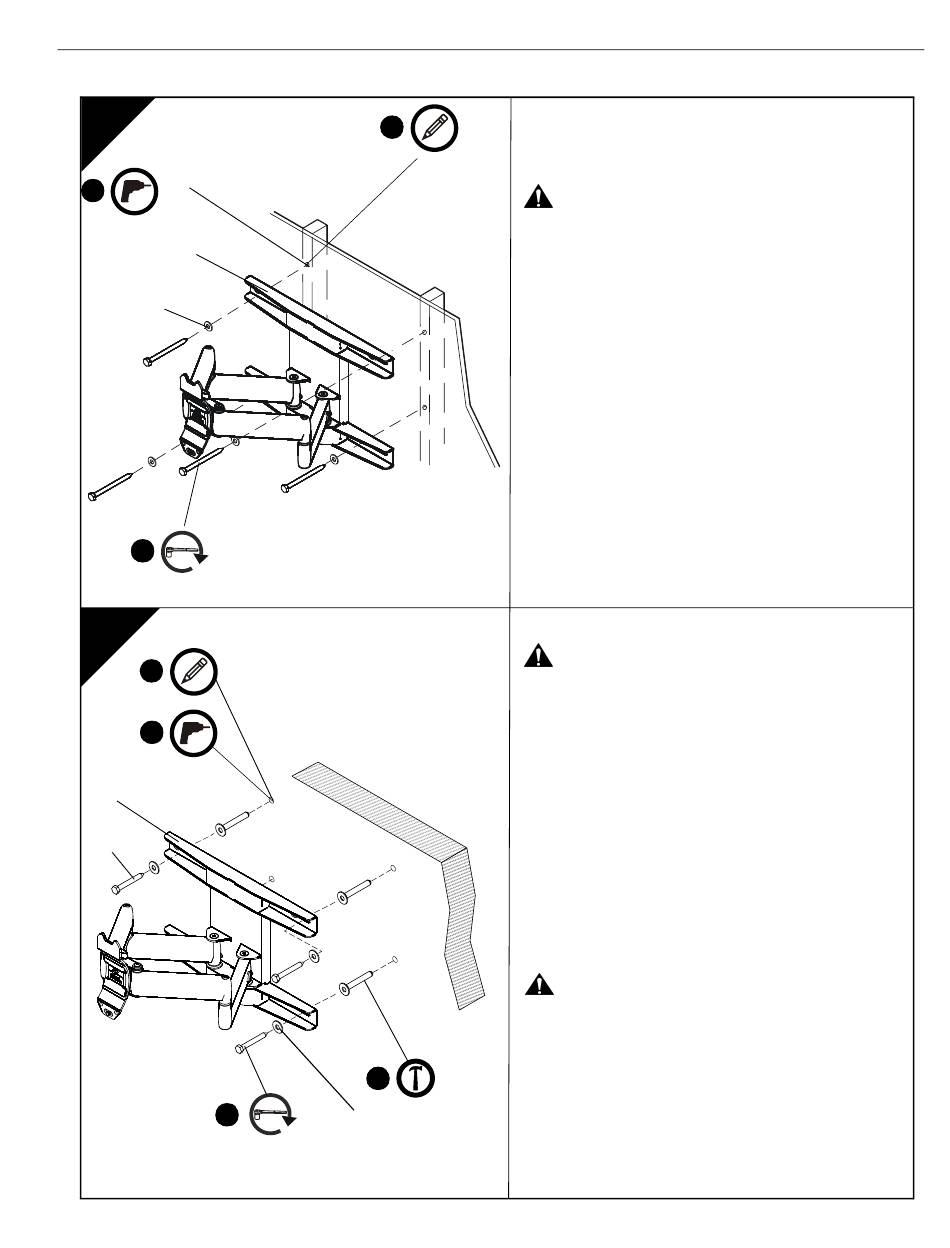

INSTALL ARM ASSEMBLY/WALL PLATE
x4
TO WALL
Wood Installation
WARNING:
strength for this component can result in serious personal
injury or damage to equipment! It is the installer's
responsibility to make sure the structure to which this
component is attached can support five times the
combined weight of all equipment. Reinforce the structure
as required before installing the component.
1. Level arm assembly (B) and mark locations of pilot
holes.
2. Drill four 1/4" (6.4mm) diameter pilot holes into wood
supports.
3. Install four lag screws (R) through flat washers (Q), arm
assembly (B), and into wood supports.
Concrete Installation
WARNING:
STRUCTURAL STRENGTH FOR THIS COMPONENT
CAN RESULT IN SERIOUS PERSONAL INJURY OR
DAMAGE TO EQUIPMENT! It is the installer's
responsibility to make sure the structure to which this
component is attached can support five times the
combined weight of all equipment. Reinforce the
structure as required before installing the component.
1. Level base plate (B) and mark locations of pilot holes.
2. Drill four 3/8" (9.5mm) diameter pilot holes into mounting
surface.
3. Install four anchors (S) into pilot holes.
4. Using 9/16" socket wrench, install four screws (R)
through four flat washers (Q) and wall plate (B) into four
anchors (S).
CAUTION:
S x4
Failure to provide adequate structural
FAILURE TO PROVIDE ADEQUATE
Do NOT overtighten screws!
