Introduction

1.2 Board Details

The PSoC 4 M-Series Pioneer Kit consists of the following blocks, as shown in Figure 1-2. It also shows the pin mapping of
all headers.

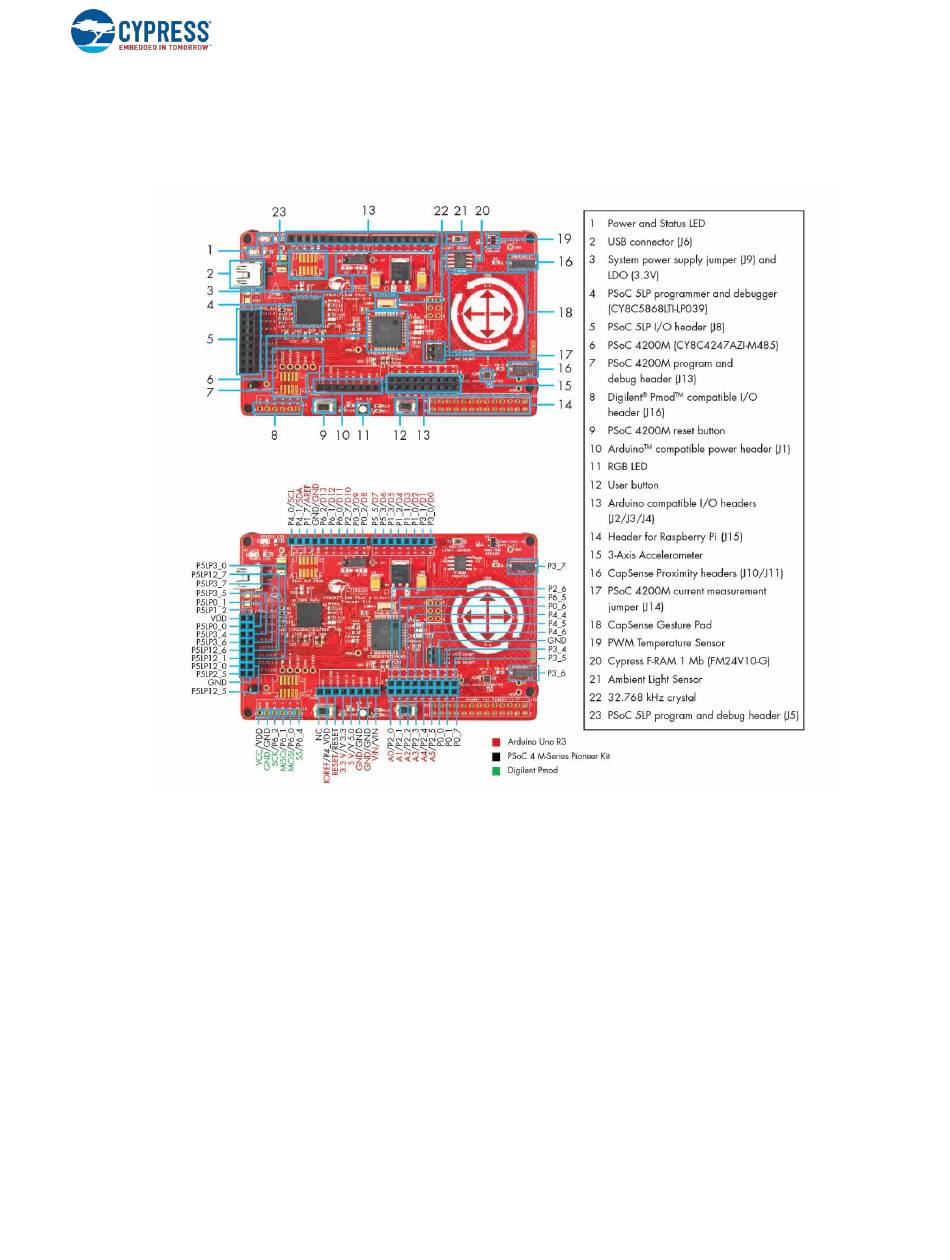

Figure 1-2. PSoC 4 M-Series Pioneer Kit Markup
