1.2

CYW954907AEVAL1F Board Details

The CYW954907AEVAL1F board consists of the blocks shown in
1. Reset Switch (SW2)
2. RJ45 Connector (J14)
3. Micro USB (Programming and Debugging) (J5)
4. 5-12V Power Input (J8)
5. WICED Header (J6)
6. Arduino Header (J13)
7. User Switch 1 (SW3)
8. User Switch 2 (SW1)
9. Arduino Header (J9)
10. PCB Antenna-Main (ANT1)
11. Connector for External Antenna 1 (J1)
12. CYW54907 Type 1PS Module (Murata) (U14)
13. PCB Antenna-Diversity (ANT0)
14. Connector for External Antenna 0 (J2)
15. On-board /External JTAG Switch (SW4)
16. External JTAG Header (J3)
17. Arduino Header (J10)
18. Arduino Header (J12)
19. External PHY chip(U12) - BCM5241
20. External ADC Chip (U3)
21. Micro SD Connector/slot (J7)

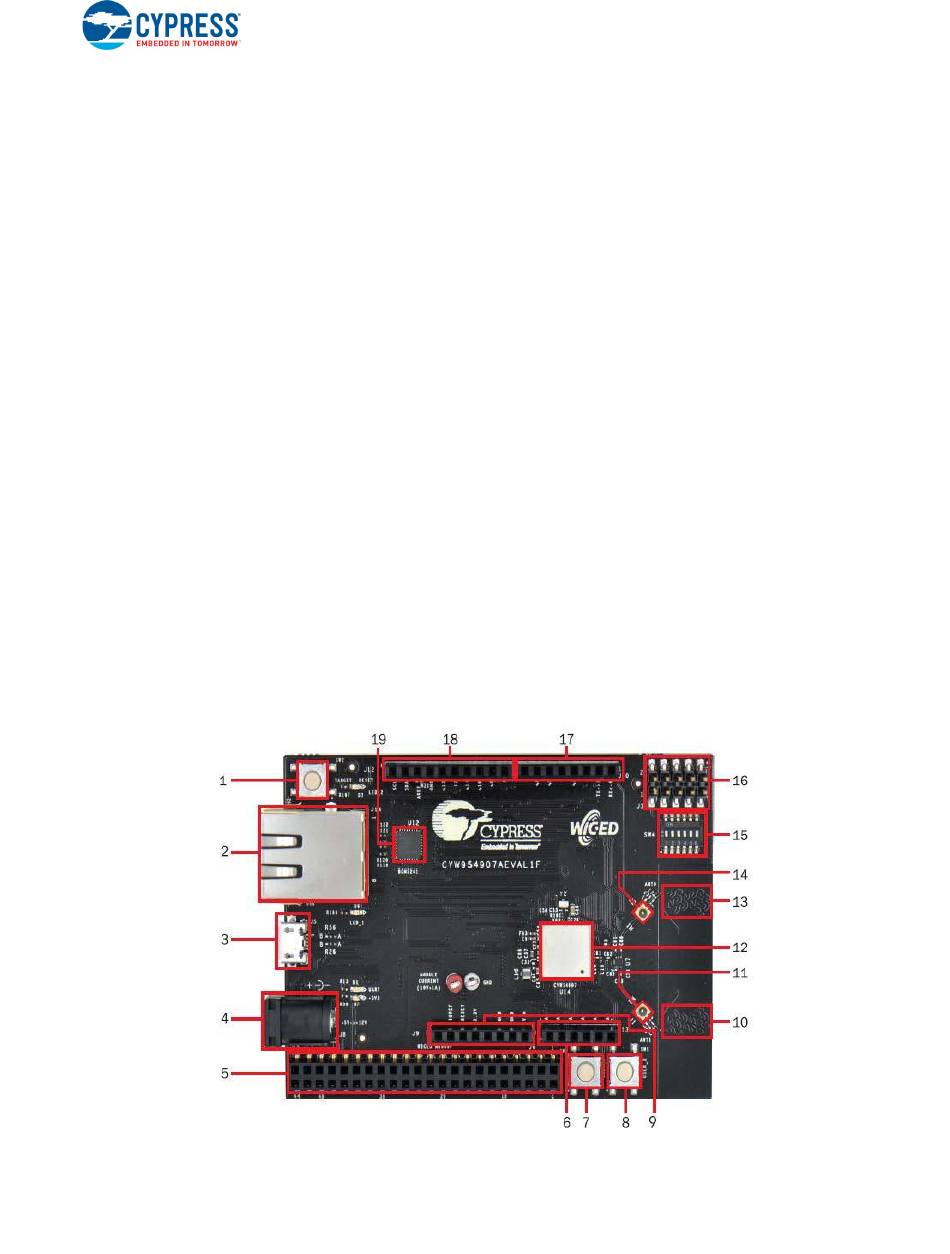

Figure 1-2. CYW954907AEVAL1F Evaluation Board
CYW954907AEVAL1F Evaluation Kit User Guide, Doc. No. 002-22338 Rev. **
Introduction
Figure 1-2 and Figure 1-3.
