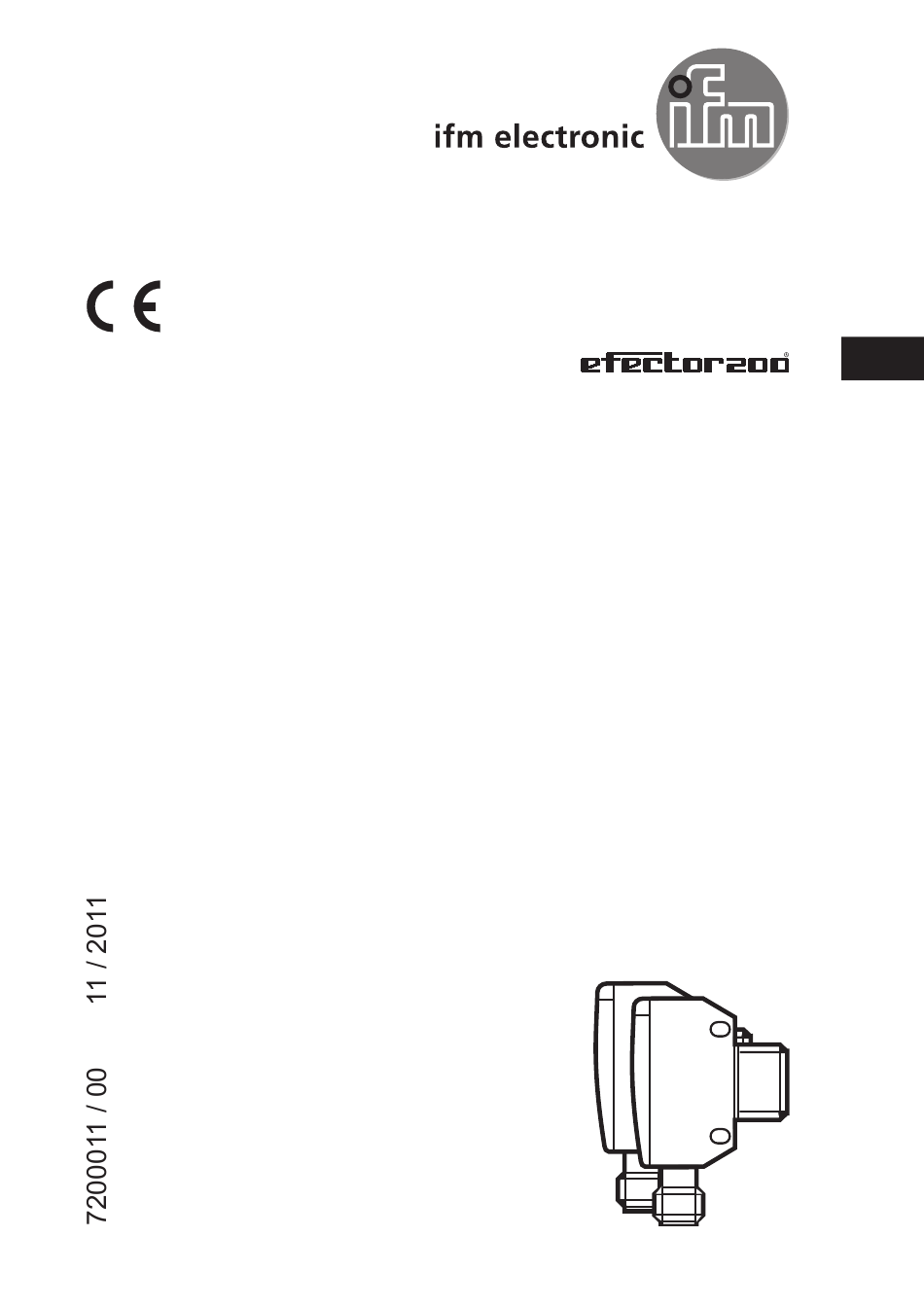

- Page 1 Operating instructions Through-beam sensor OGE38x OGS38x...
-
Page 2: Functions And Features
1 Functions and features The through-beam sensor detects objects and materials without contact and indicates their presence by a switching signal. For the range see the type label. 2 Installation ► Install the receiver (OGE38x) and secure it to a bracket. ►... - Page 3 3 Receiver pin 1 = L+ (10...30 V DC) pin 3 = L- pin 4 = load (PNP, 200 mA) (pin 2 = not connected) pin 1 = L+ (10...30 V DC) pin 3 = L- pin 4 = load (NPN, 200 mA) (pin 2 = not connected) 4 Operation Check whether the sensor operates correctly.
