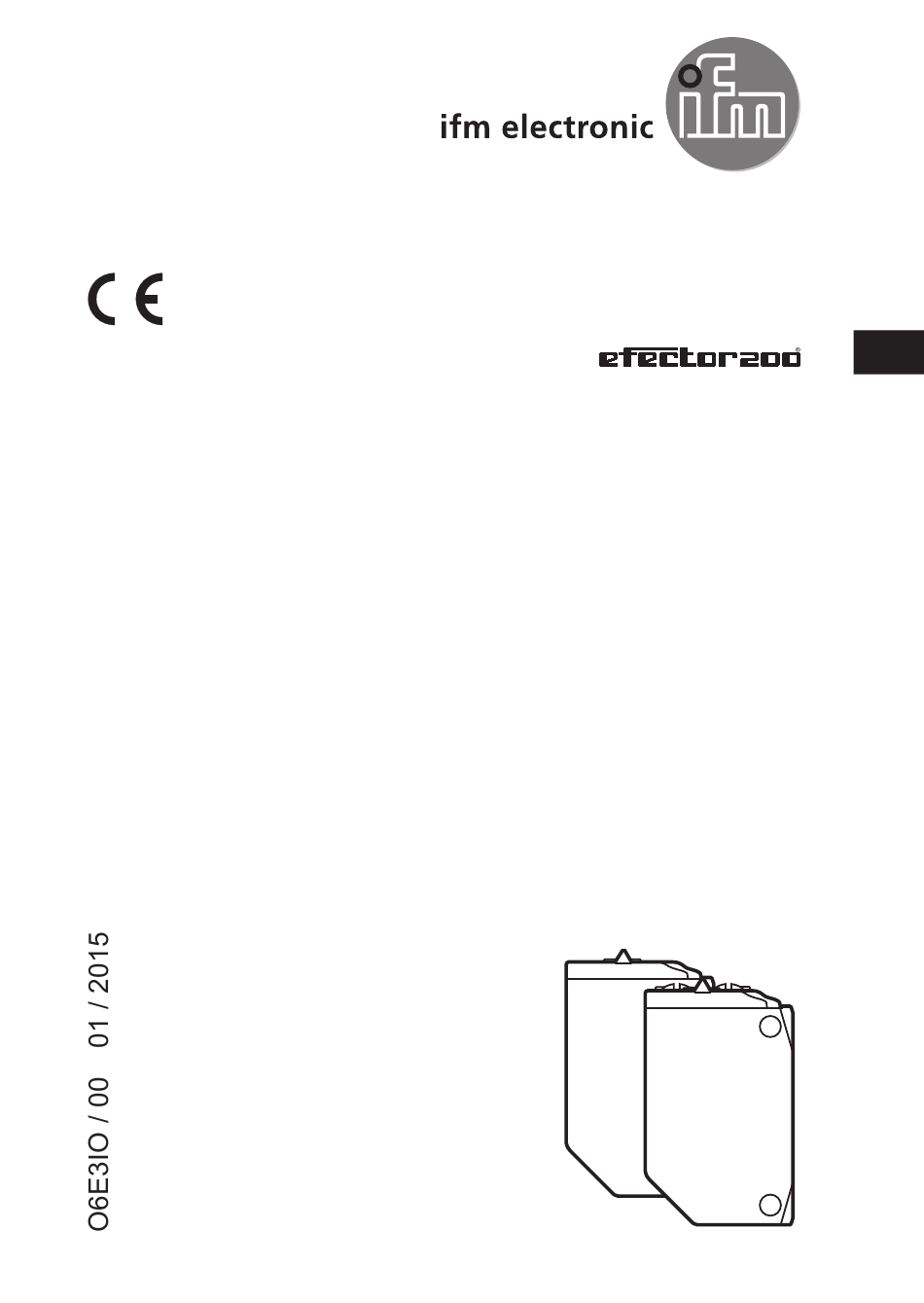

- Page 1 Operating instructions Through-beam sensor O6E3 / O6S3...
- Page 2 1 Preliminary note 1.1 Symbols used ► Instruction > Reaction, result […] Designation of pushbuttons, buttons or indications → Cross-reference Important note Non-compliance can result in malfunctions or interference. 2 Functions and features The through-beam sensor detects objects and materials without contact and indicates their presence by a switching signal.
- Page 3 4 Operating and display elements 1: LED green - operation Transmitter 1: LED yellow - switching output active 2: Setting potentiometer „sensitivity“ 3: LED green - operation, stability indication 4: Selector „output function“ Receiver 4.1 Stability indication The green LED on the receiver is lit when the supply voltage is applied and there is sufficient excess gain.
- Page 4 5 Electrical connection The unit must be connected by a qualified electrician. ► The national and international regulations for the installation of electri- cal equipment must be adhered to. ► Ensure voltage supply to EN 50178. ► Disconnect power. ► Connect the unit as follows: 5.1 Transmitter Connector M12 pigtail Cable *...
- Page 5 5.2.2 NPN Connector M12 pigtail Cable * Connector M8 3-pin Connector M8 4-pin * Core colours: BN = brown, BU = blue, BK = black 6 Settings 6.1 Set the output function ► Setting D: dark-on mode ► Setting L: light-on mode Receiver 6.2 Set the sensitivity ►...
- Page 6 In addition communication is possible via a point-to-point connection with a USB adapter cable. You will find more detailed information about IO-Link at www.ifm.com/uk/io-link. 8.2 Device-specific information You will find the IODDs necessary for the configuration of the IO-Link unit and detailed information about sensor values, diagnostic information and parameters in the overview table at www.ifm.com/uk/io-link.
- Page 7 ► For cleaning do not use any solvents or cleaning agents which could damage the plastic parts. ► After use dispose of the unit in an environmentally friendly way in accordance with the applicable national regulations. Faulty sensors must only be repaired by the manufacturer. Technical data and further information at unter www.ifm.com...
