IFM O1D100 series Manual

Display
Display Unit LED's
PWR mm m inch
Mode/
Enter
Programming Mode
Press
1
2
Press
To change the setting, press and hold the set button
for 5 seconds until the flashing value is continuously
incremented. After this time, the value may be increased
3
continuously (by holding down the set button) or incre-
mented (by pressing and releasing the button repeatedly)
until the desired value is reached.
4
Press
The desired value is set. If no button is pressed for 15
5
seconds, the sensor returns to the operating mode.
6
Repeat these steps to set other values as required.

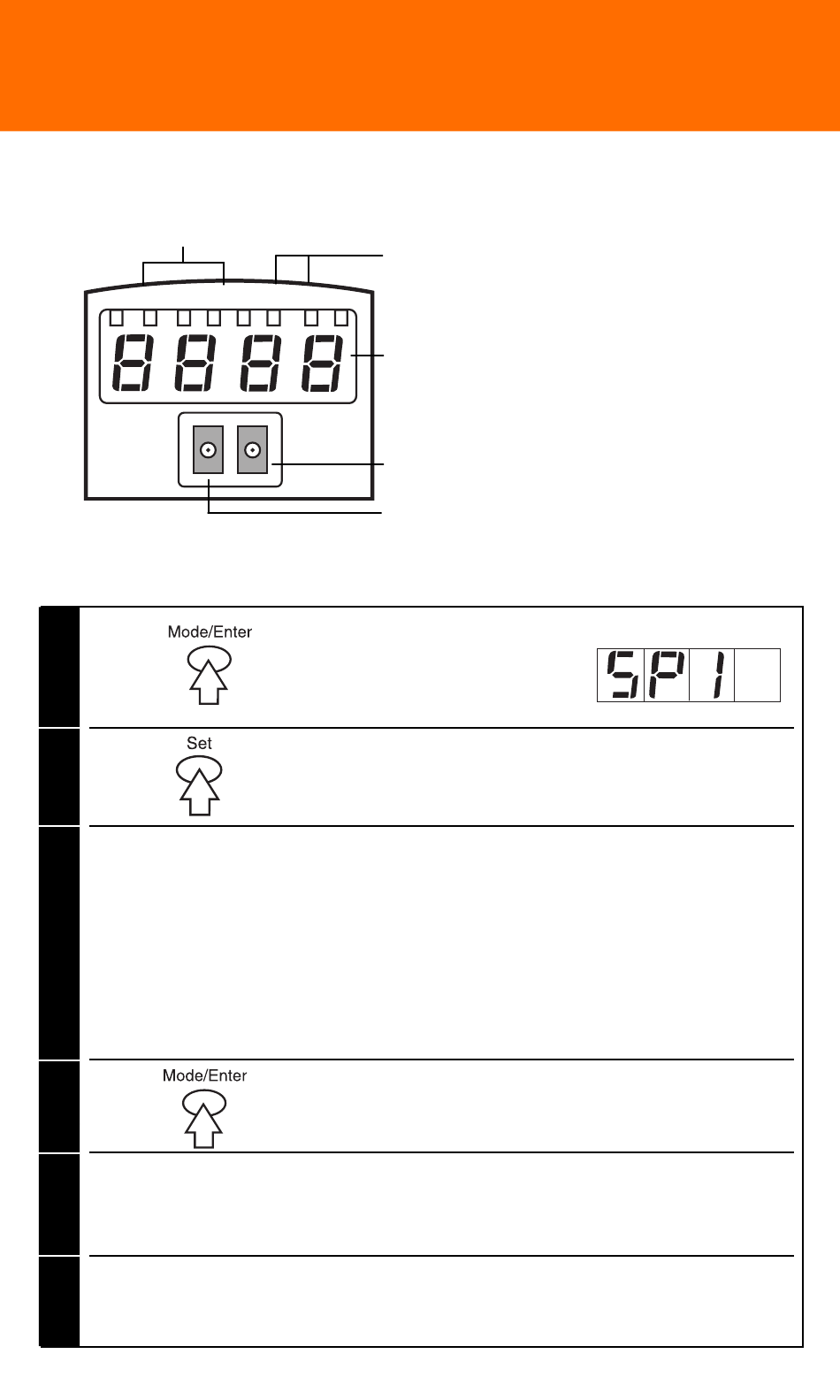

O1D100 Series
Distance Sensor
OUT1 OUT2
Set
until desired menu item is
displayed. (See distance
sensor menu items)
to display the current setting.
once to enter desired value.
Output LED's
4 digit numeric display
Setting of the parameters
Mode: Selecting the mode
Enter: Acknowledging the setting
