Summary of Contents for IFM Efector 200 OGH2 Series

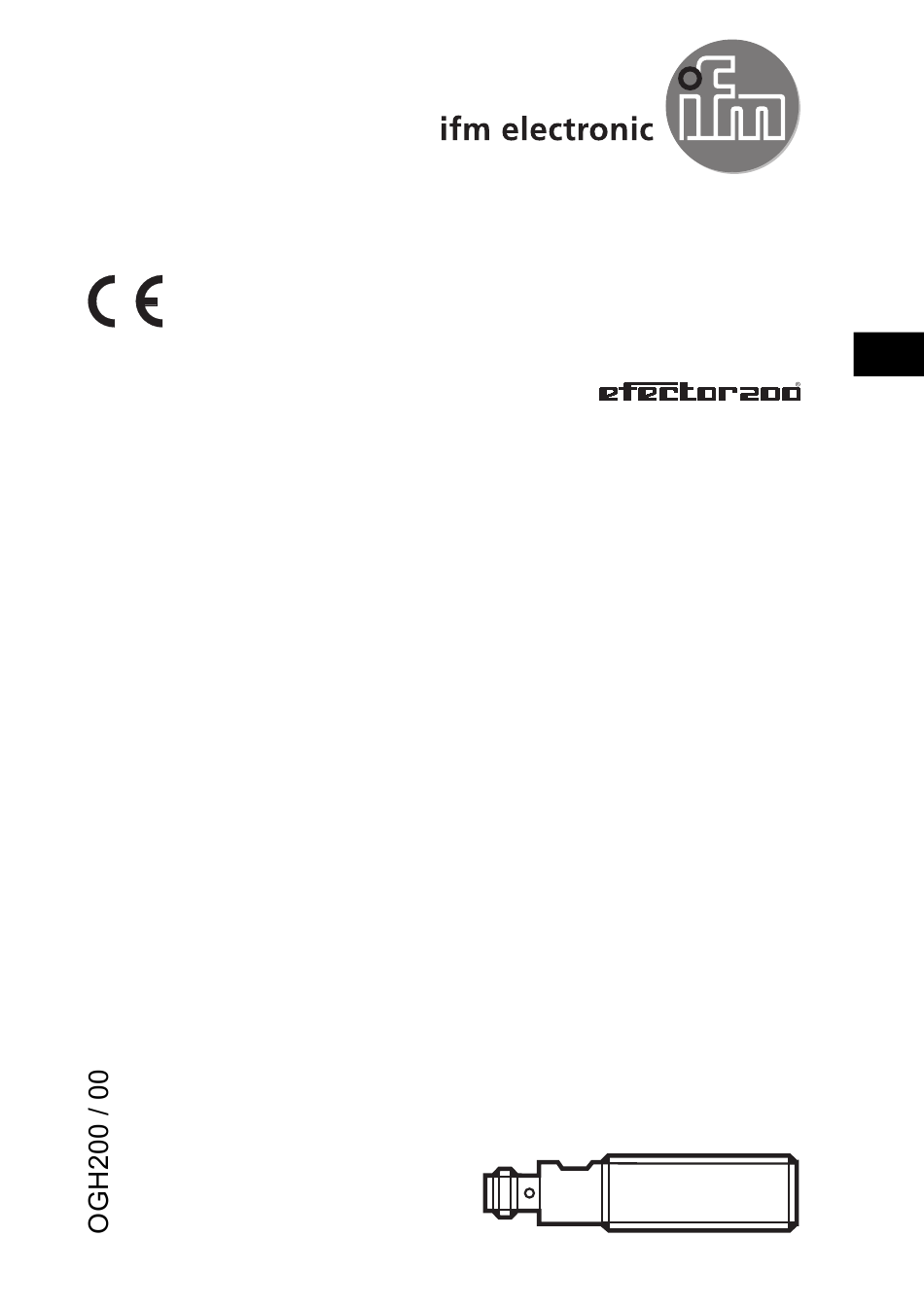

- Page 1 Operating instructions Diffuse reflection sensor with background suppression OGH2xx...
-
Page 2: Functions And Features
Functions and features The diffuse-reflection sensor detects objects and materials without contact and indicates their presence by a switched signal. Range: see type label. Installation Align the photocell and fasten to a mounting device. Setting potentiometer The objects to be detected are to move tranversally to the lens of the unit. In case of other directions of movement it should be tested before whether safe function- ing is guaranteed. - Page 3 Adjustment Setting potentiometer ► Set the potentiometer to the smallest sensing range. ► Place the object to be detected within the sensing range. ► Increase the sensing range until the LED lights (= minimum value; object detected). ► Remove the object from the sensing range (LED goes off). ►...
