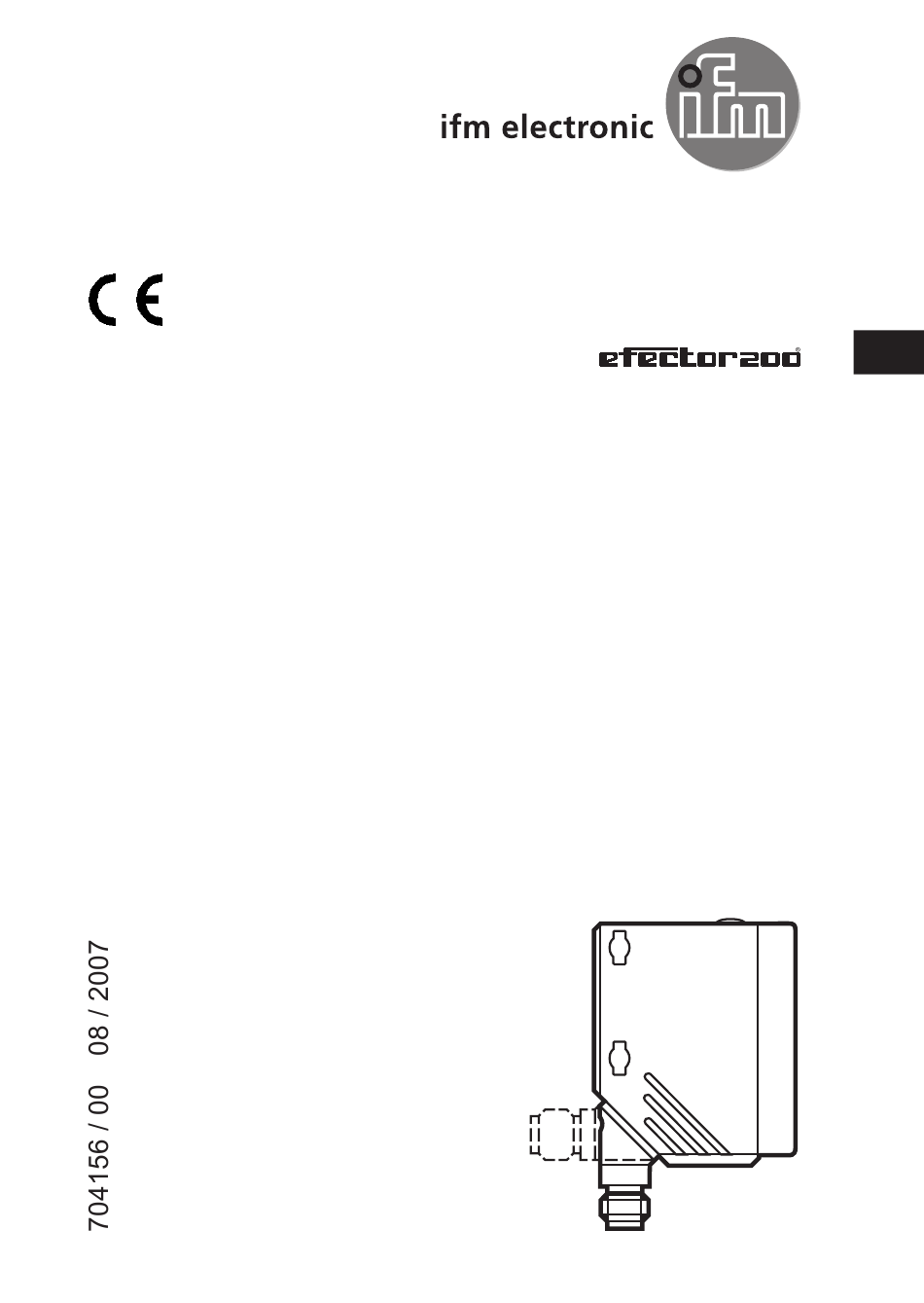

- Page 1 Operating instructions Retro-reflective sensor O5PG...
-
Page 2: Table Of Contents
Contents Functions and features �������������������������������������������������������������������� 3 Installation ��������������������������������������������������������������������������������������� 3 Operating and display elements ������������������������������������������������������ 3 Electrical connection������������������������������������������������������������������������ 4 Set-up ���������������������������������������������������������������������������������������������� 4 Sensitivity setting (1-point teach)����������������������������������������������������� 5 a) Output switched ON when object detected ��������������������������������� 5 Sensitivity setting unsuccessful: ������������������������������������������������������ 5 b) Output switched OFF when object detected �������������������������������... -
Page 3: Functions And Features
When selecting the prismatic reflector ensure that the surface area is greater than the light spot� Maximum range only with accurate alignment� Optimum excess gain is reached if the excess gain graph on the ifm homepage is adhered to: → “Data sheet direct” > “Additional data”... -
Page 4: Electrical Connection
Electrical connection Disconnect the power supply� Connect the unit� n.c. n.c. 1: L+ 2: function check output 3: L- 4: switching output 5: not connected On power up, the unit recognises automatically if the switching output is con- nected to L- (= PNP) or to L+ (= NPN)� The polarity of the function check output is set according to the polarity of the switching output�... -
Page 5: Sensitivity Setting (1-Point Teach)
Sensitivity setting (1-point teach) Useful if the object is highly transparent or with thin film� However, excess gain is less than using the 2-point teach� a) Output switched ON when object detected ► Remove object ► Press [OUToff] for 2 s� >... -
Page 6: Sensitivity Setting (2-Point Teach)
Sensitivity setting (2-point teach) Useful when the object has high contrast as compared to the reflector or light and dark objects need to be differentiated� This results in a higher excess gain� a) Output switched ON when object detected ► Position object ►... -
Page 7: Electronic Lock
Electronic lock ► To lock press [OUTon] and [OUToff] together for 10���20 s� > Acknowledgement: LED status (yellow) inverted� ► To unlock repeat procedure� Operation Check whether the unit operates correctly� Display by LEDs� Yellow LED on OUT output is switched Limit of the switch point compensation reached: Red LED on e�g�...
