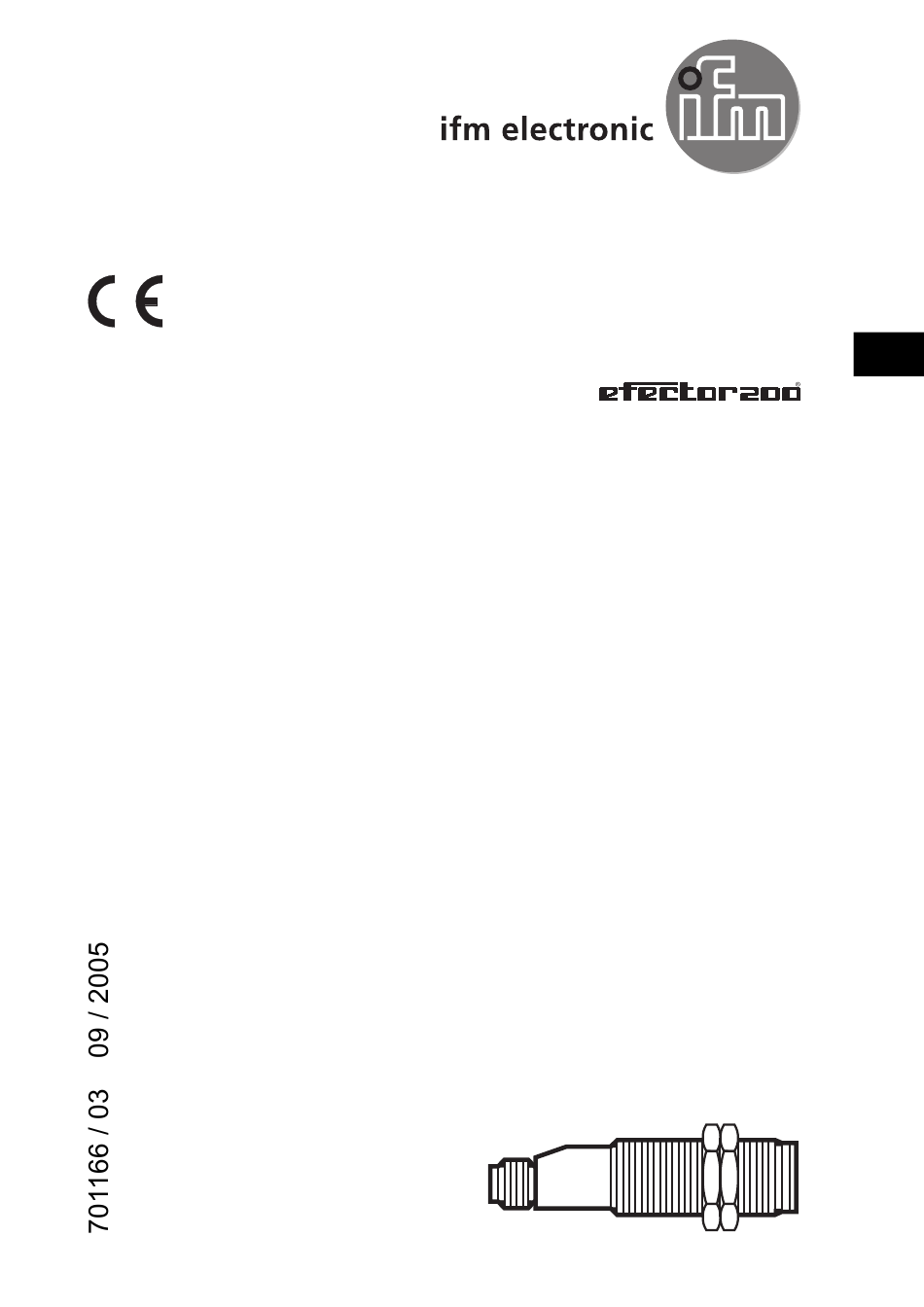

- Page 1 Operating instructions Diffuse reflection sensor with background suppression...
-
Page 2: Electrical Connection
Function and features The diffuse reflection sensor detects objects and materials without contact and indicates their presence by a switched signal. Range (r): see type label (value referred to white paper 200mm x 200mm). Electrical connection The device shall be supplied from an isolating source and protected by an overcurrent device such that the limited voltage circuit requirements in accordance with UL 508 are met. - Page 3 Setting of the sensitivity with stationary objects Activate the programming mode of the unit without object. Press for about 2s until the red LED flashes. The red LED goes out; the yellow and green LEDs flash alternately. The unit is in the programming mode. If in addition the red LED is lit, the reflection of the background is too intensive (e.g.
- Page 4 If the setting of the sensitivity is not possible (e.g. object signal and background signal are about the same), the red LED flashes after step 3 for approx. 2s. The unit then passes into the operating mode with the sensitivity being unchanged. Setting of the maximum sensitivity •...
- Page 5 Wiring DC PNP DC NPN...
