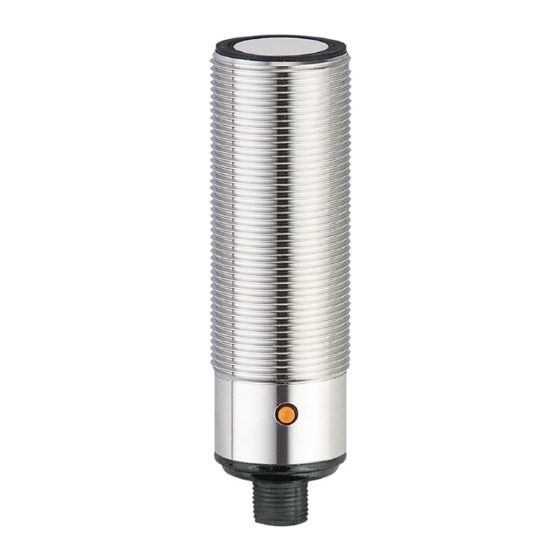

Ultrasonic diffuse-reflection sensor with io-link

Advertisement

Quick Links

Operating instructions
Ultrasonic diffuse-reflection sensor
with IO-Link
UK
UIT501
UIT502
UIT504
UIT505
UIT507
UIT508

Advertisement

loading
Need help?

Need help?

Do you have a question about the UIT501 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for IFM UIT501

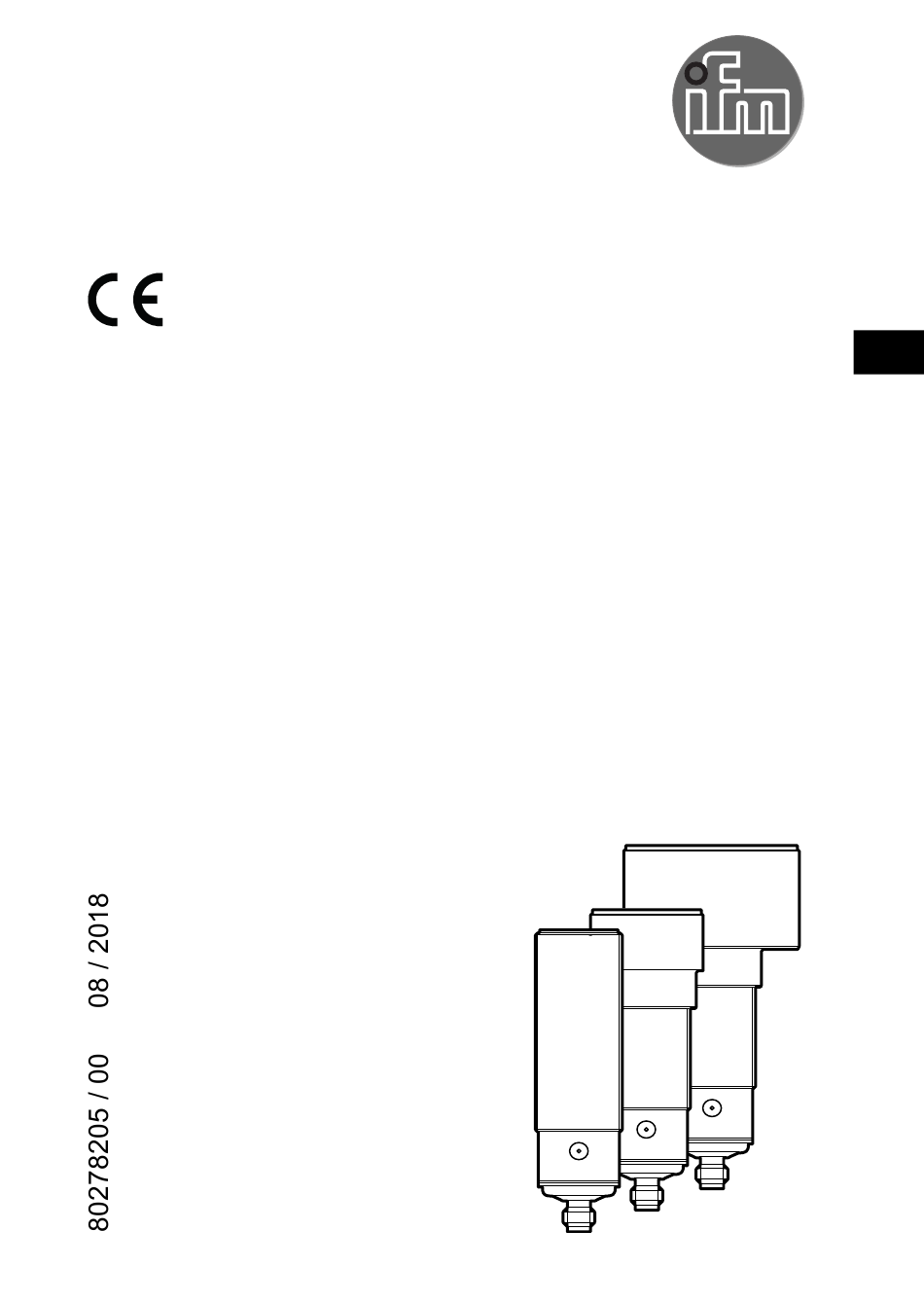

  • Page 1 Operating instructions Ultrasonic diffuse-reflection sensor with IO-Link UIT501 UIT502 UIT504 UIT505 UIT507 UIT508...
