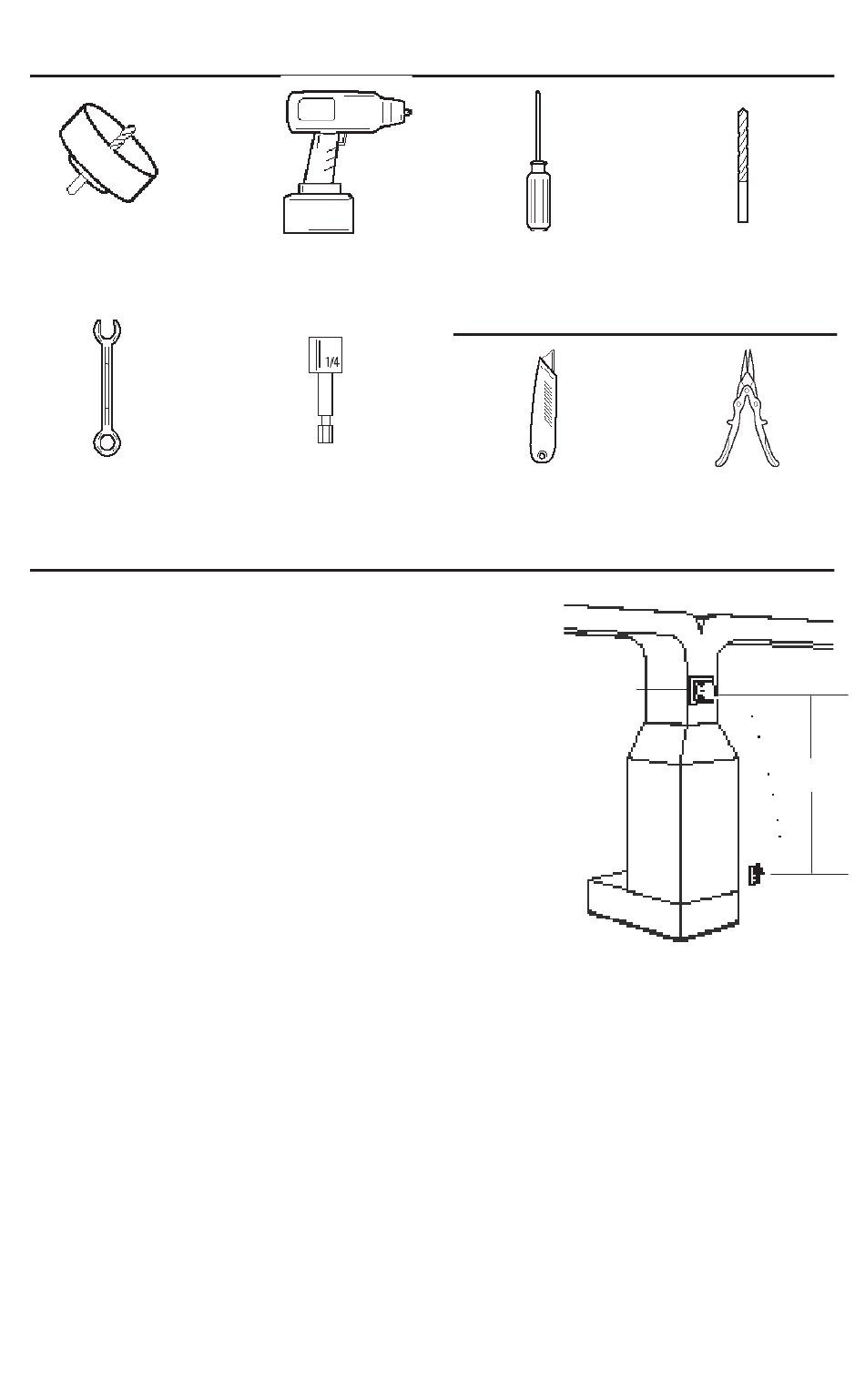

RECOMMENDED INSTALLATION TOOLS

3 1/2" Hole Saw
for wood or metal
(recommended)
11/32" Open-End Wrench

INSTALLATION REQUIREMENTS

Installation Requirements
1. Unit should be installed after the air handler in the
HVAC system.
2. The duct work around the installation area should be
clean and dry to insure proper adhesion of the gasket
materials and any tape used.
3. An approximate 3.5" (8.89 cm) opening will need to
be cut into the existing duct work to install the unit
properly.
ELECTRICAL REQUIREMENTS (110 VOLT UNITS ONLY)
• To use the 120 volt plug, be sure to locate the unit within 6 ft. of a standard 120 volt
grounded outlet. Long term use of an extension cord is not recommended due to safety
considerations.
HARDWIRING REQUIREMENTS
For 110 volt units: Black = L1, White = Neutral, Green = Ground
Drill/Power Driver
1/4" Nut Driver Bit
Phillips Screwdriver
You may also need:
Utility Knife
Min. 8" x 8"
Air
Handler
3/8" Drill Bit
(if installing into fiberglass ducting
with toggle bolts)
Tin Snips
(for metal ductwork)
Max. 6 ft.
120 volt
grounded
outlet
