Summary of Contents for Marcy CL103

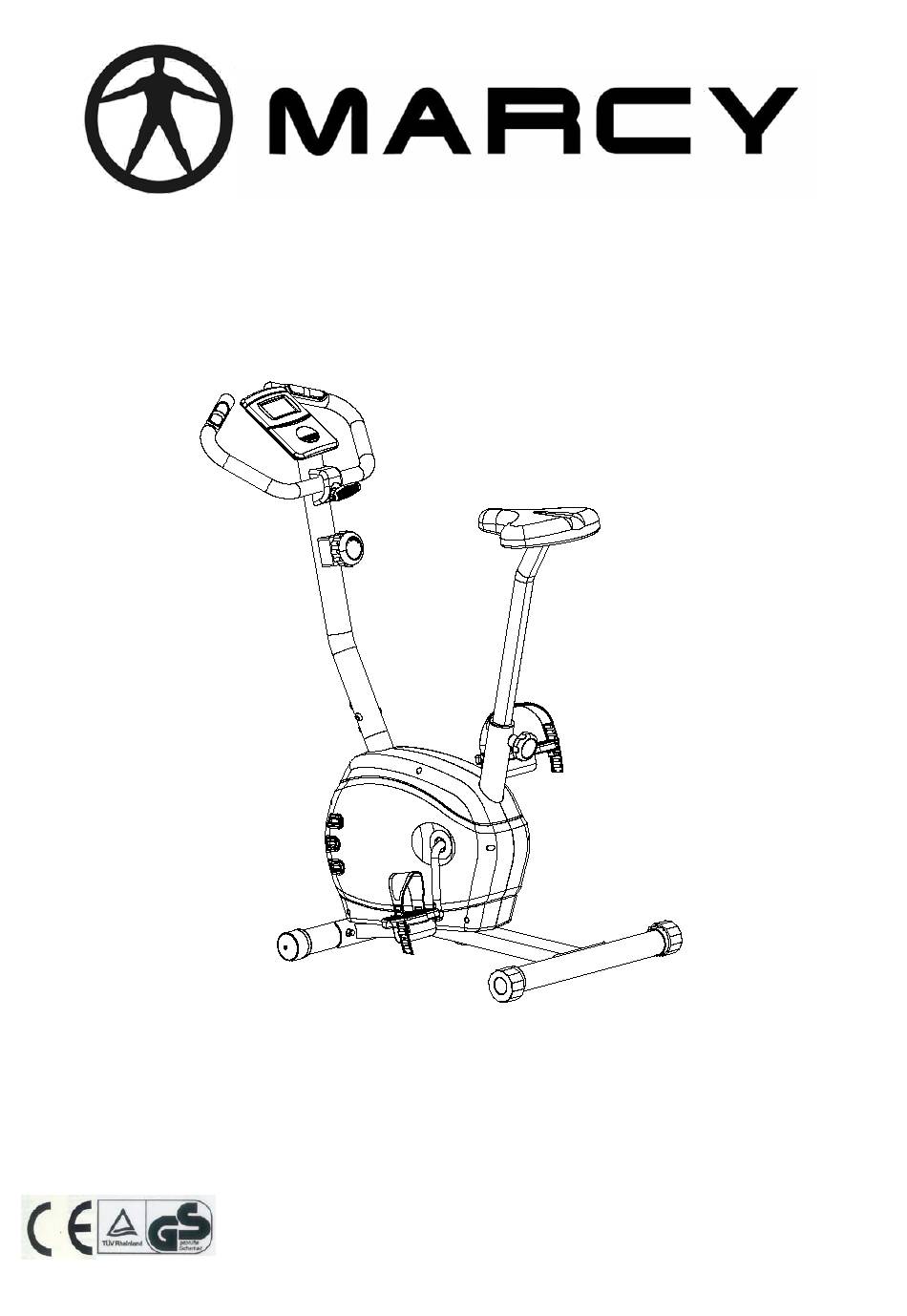

- Page 1 Magnetic Cycle Product Code: CL103 12-04-2010-1...
-
Page 2: Table Of Contents
Contents Important Safety Information Weight Limit Capacities Hardware Parts List Pre Assembly Check List Assembly Instructions 6 - 12 User Guide Computer Instructions Exercise Instructions Fault Finding Chart Exploded Diagram Parts List Additional Information Care Maintenance Limited Warranty Supplied by Escalade International Ltd Pleasant Road Penllergaer... -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THIS OWNER’S MANUAL CONTAINS ASSEMBLY, OPERATION, MAINTENANCE AND SAFETY INFORMATION. IN THE INTEREST OF SAFETY, PLEASE MAKE CERTAIN THAT YOU READ AND UNDERSTAND ALL THE INFORMATION BELOW. 1. This cycle is intended for class H (H=Domestic) use only. It is not designed for commercial use. -
Page 4: Hardware Parts List
HARDWARE PARTS LIST #30 M8*63L 4PCS #35 M8 4PCS #33 M8*16 4PCS 1PCS #07 M8 1PCS #10 M7 1PCS #011 8* 1PCS S13-14-15 S13-15... -
Page 5: Pre Assembly Check List
PRE-ASSEMBLY CHECK LIST N O . 27 N O . 23 N O . 24 N O . 13 N O . 37 N O . 42 N O . 31 N O . 03 N O . 01 Part No. Description Handlebar Post Handlebar... -
Page 6: Assembly Instructions
ASSEMBLY INSTRUCTION STEP 1 Assemble the front and rear stabilizers (42 & 31) to the main frame using 4 carriage bolts (30), curved washers (33) and acorn nut (35). #30 M 8* 63L 4PC S #35 M 8 4PC S #33 M 8 4PC S... - Page 7 STEP 2 The left and right pedal (23R & 23L) are marked "L" and "R". Assemble the left and right pedals to their appropriate crank arm. The right pedal is on the right hand side of the cycle as you sit on it. Note that the right pedal should be threaded on clockwise and the left pedal counter-clockwise.
- Page 8 STEP 3 Ensure the Tension Control Knob is set to number 1. Connect the tension cable upper (55) to the tension cable lower (52). Please see the next page for a detailed description of this part of the assembly. Connect the upper sensor wire (54) to the lower sensor wire (53). Assemble the handlebar post (1) to the main frame and secure into position using 4 allan head bolts and curved washer (33).
- Page 9 HOW TO CONNECT TENSION CONNECTOR Slide the Cable wire from the Upper Tension Connector between the opening on the wire holder on the Lower Tension Connector. Pull the Upper Tension Connector backward and slide the wire through the slot on the bracket. Drop the Connector down so the fitting sits firmly on top of the bracket.
- Page 10 STEP 4 Assemble the Handlebar (3) onto the bracket at the top of the Handlebar Post using plastic cover (9), flat washer (8), spring washer (7), steel tube (11) and T Knob (10). 8* 12 * 25 1PC S #10 M 8 1PC S #08 M8 1PC S #07 M 8 1PC S...
- Page 11 STEP 5 Assemble the saddle (24) onto the seat post (27) using 3 flat washers (25) and nylon lock nuts (26). Remove the seat adjustment knob (20) from the main frame and insert the seat post into the main frame. Select desired height and secure into position using the seat adjustment knob. #26 M 8 3PC S #25 M 8 3PC S...
- Page 12 STEP 6 Assemble the computer (13) onto the top of the handlebar post and secure into position using 2 screws (28). Connect the upper sensor cable (54) into the back of the computer marked ‘SENSOR INPUT’ and the pulse sensor cable (2) into the rear of the computer marked ‘PULSE INPUT’. #28 M 5* 12L 2PC S...
-
Page 13: User Guide
USER GUIDE TRANSPORT TENSION CONTROL Decrease Increase... - Page 14 LEVELLING Adjustable End Caps are located on the end o the Rear Stabilizer. These can be adjusted to compensate for floors which are uneven.
-
Page 15: Computer Instructions
COMPUTER INSTRUCTIONS UT8325-7 FUNCTION SCAN Scans through each function’s values every 6 seconds. TIME 0:00~99:59 Minutes and Seconds SPEED 0.0~99.9 km/h DISTANCE 0.00~99.99 km CALORIES 0.0~9999 CAL PULSE 30~ 240 BPM OPERATION STEP SCAN: Press MODE button until SCAN appears on the screen;... -
Page 16: Exercise Instructions
used for medical purposes EXERCISE INSTRUCTIONS Using your MAGNETIC CYCLE will provide you with several benefits, it will improve your physical fitness, tone muscle and in conjunction with a calorie controlled diet help you loose weight. 1. The Warm Up Phase This stage helps get the blood flowing around the body and the muscles working properly. -
Page 17: Fault Finding Chart
This stage should last for a minimum of 12 minutes though most people start at about 15-20 minutes 3. The Cool Down Phase This stage lets your Cardio-vascular System and muscles wind down. This is a repeat of the warm up exercise e.g. -
Page 18: Exploded Diagram
EXPLODED DIAGRAM... -
Page 19: Parts List
PARTS LIST Description Q’ty Description Q’ty HANDLEBAR POST SCREW FOR CHAIN COVER PULSE CABLE SCREW FOR CHAIN COVER HANDLEBAR FRONT STABILIZER FOAM GRIP TRANSPORTATION WHEEL PULSE SCREW FOR FRONT STABILIZER END CAP M10 SCREW SPRING WASHER M8 SMALL PULLEY FOR BELT FLAT WASHER M8 IDLE WHEEL PLASTIC COVER FOR HANDLEBAR... -
Page 20: Additional Information
ADDITIONAL INFORMATION Packaging Disposal Government guidelines ask that we reduce the amount of waste material disposed of in land fill sites. We therefore ask that you dispose of all packaging waste responsibly at public recycling centres. End of Life Disposal We at Escalade hope you enjoy many years of enjoyable use from your Cycle. -
Page 21: Limited Warranty
LIMITED WARRANTY Escalade warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of one year from the date of purchase. This warranty extends only to the original purchaser. Escalade’s obligation under this Warranty is limited to replacing damaged or faulty parts at Escalade’s option.
