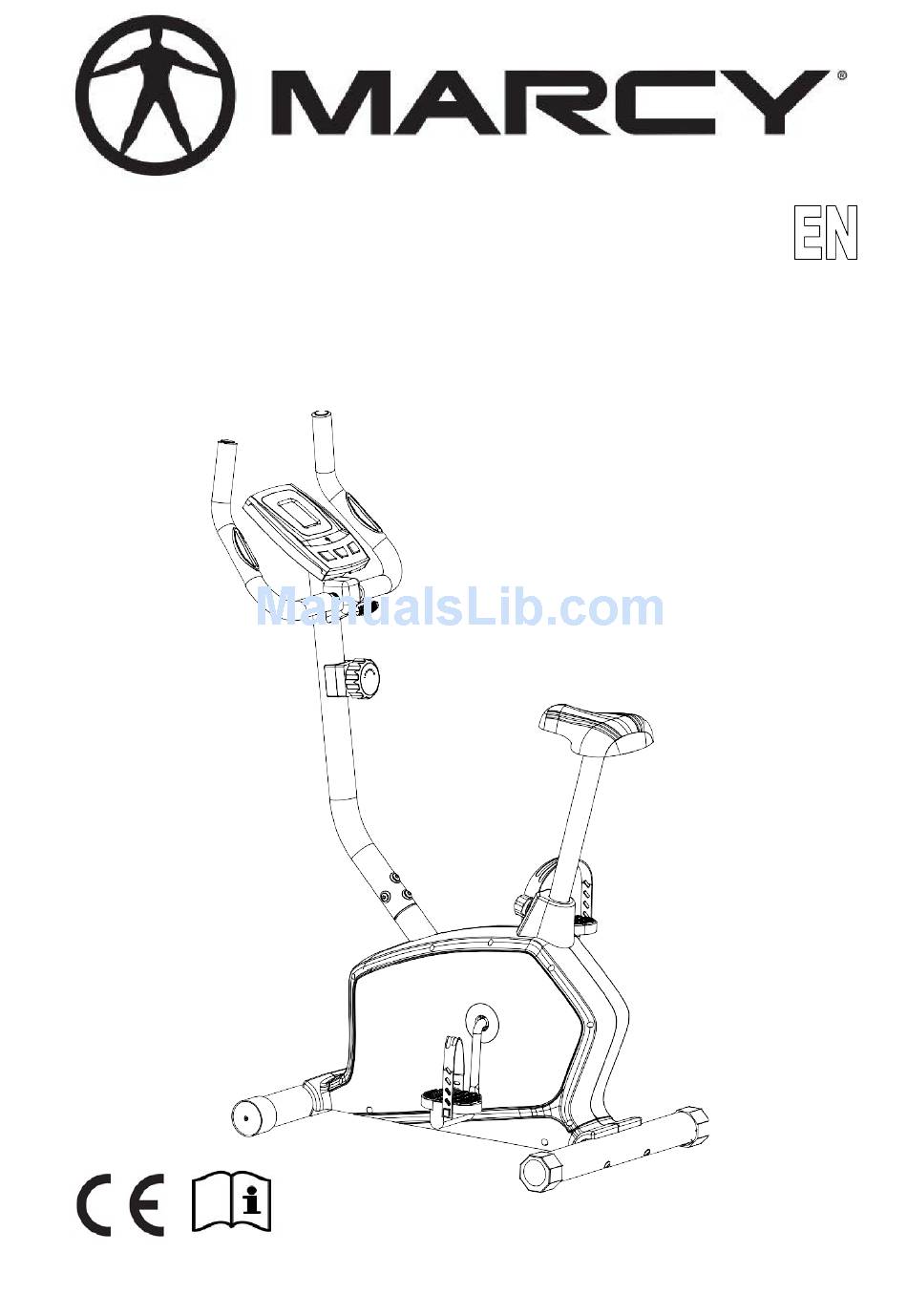

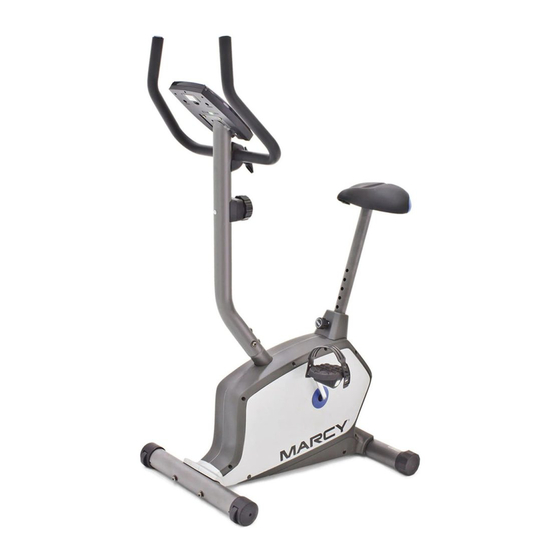

- Page 1 1201U UPRIGHT BIKE USER MANUAL istributed By: Pure-Tec Limited www.puretecfitness.com www.puretecfitness.com...
-
Page 2: Table Of Contents
Exercise Instructions Exploded Diagram 15-16 Parts List Additional Information Warranty Information BEFORE YOU BEGIN Thank you for selecting the MARCY 1201U Upright Bike. your safety and benefit, read this manual carefully before using the equipment. As the official distributor for Marcy,... -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THIS OWNER’S MANUAL CONTAINS ASSEMBLY, OPERATION, MAINTENANCE AND SAFETY INFORMATION. IN THE INTEREST OF SAFETY, PLEASE MAKE CERTAIN THAT YOU READ AND UNDERSTAND ALL THE INFORMATION BELOW. 1. This Bike is intended for class H (H=Domestic) use only. It is not designed for commercial use. -
Page 4: Hardware Packing List
HARDWARE PACKING LIST DESCRIPTION DRAWING Quick Release Lock Knob Spring Washer Allen Bolt M8*75 Φ Φ Curved Washer Allen Bolt M8*16 T-shaped Lock Knob Decorative Cover Bushing Allen key L6 Box Wrench www.puretecfitness.com... -
Page 5: Pre Assembly Check List
PRE-ASSEMBLY CHECK LIST PART NO. DESCRIPTION Q’TY Main frame Front support Seat support Meter 9/10 Pedal ( L/R ) Front support cover Seat Handlebar Front stabilizer Rear stabilizer www.puretecfitness.com... -
Page 6: Assembly Instructions
ASSEMBLY INSTRUCTION STEP 1 Attach the front stabilizer (2) to the main frame (1), Secure using two curved washer (16), two Spring Washer (13) and Allen Bolt (15). Attach the rear stabilizer (3) to the main frame (1), Secure using two curved washer (16), two Spring Washer (13) and Allen Bolt (15). - Page 7 HOW TO CONNECT TENSION CONNECTOR Slide the Cable wire from the extension sensor wire Connector in between the opening on the wire holder on sensor wire Connector. Pull the extension sensor wire Connector backward and slide the wire through the slot on the bracket.
- Page 8 STEP 3 Attach the handlebar (05) to front of the front post (4), secure using one clip (25), one allen bolt (22), one cover for clamp (37), one bushing(19) and one T Type Knob (21). Insert the lower pulse (20) through Grommet (32) on front post (04) and pull the hand pulse wire (20) out of front post (04).
- Page 9 STEP 5 Attach the left and right pedal straps to the left and right pedals (9/10). Attach the left and right pedals (9/10) to the left and right crank arms. Note: The pedals and crank arms are marked with "R" and "L". The left pedal (L) should be threaded on clockwise and the right pedal (R) should be threaded on counter-clockwise.
-
Page 10: Computer Instructions
COMPUTER INSTRUCTIONS FUNCTIONAL BUTTONS: MODE - Push down for selecting functions. - To set the values of time、distance、calories and pulse when not in scan mode. RESET - Push down for resetting time、distance and calories. FUNCTION AND OPERATIONS: 1. SCAN: Press “MODE” button until “SCAN” appears, monitor will rotate through all the 5 functions: Time、speed、distance、calorie and pulse. - Page 11 SPECIFICATIONS: AUTO SCAN Every 4 seconds TIME 00:00’~99:59’ CURRENT The maximum signal can be pickup is FUNCTION SPEED 99.9KM/H TRIP DISTANCE 0.00~99.99KM or 0.00~9999KM CALORIES 0.1~999.9kCAL PULSE RATE 40~206BPM BATTERY TYPE 2pcs of SIZE –AA or UM –3 OPERATING TEMPERATURE 0°C ~ +40°C STORAGE TEMPERATURE -10°C ~ +60°C...
-
Page 12: Exercise Instructions
EXERCISE INSTRUCTIONS Using your UPRIGHT BIKE will provide you with several benefits, it will improve your physical fitness, tone muscle and in conjunction with a calorie controlled diet help you lose weight. 1. The Warm Up Phase This stage helps get the blood flowing around the body and the muscles working properly. It will also reduce the risk of cramp and muscle injury. - Page 13 3. The Cool Down Phase This stage is to let your Cardio-vascular System and muscles wind down. This is a repeat of the warm up exercise e.g. reduce your tempo, continue for approximately 5 minutes. The stretching exercises should now be repeated, again remembering not to force or jerk your muscles into the stretch.
-
Page 14: Exploded Diagram
EXPLODED DIAGRAM www.puretecfitness.com... -
Page 15: Parts List
PARTS LIST PART NO. DESCRIPTION Q’TY Main frame Front stabilizer Rear stabilizer Front post Handlebar Computer Seat post Seat Pedal (Left) Pedal (Right) Quick release Knob Washer Φ8*Φ17 Spring washer Φ8 Nylon Nut M8 Allen bolt M8*75 Curved washer Φ8*Φ20 Decorative cover Allen bolt M8*16 Bushing... - Page 16 PARTS LIST PART NO. DESCRIPTION Q’TY Self tapping screw ST 5*15 Magnet assembly Chain cover (L/R) Crank cover) Powder bushing Self tapping screw Hex head bolt M8*105 Idler wheel Sensor bracket Hex head bolt M6*25 Hex head Nut M6 French Nut Belt BB parts 1 set...
-
Page 17: Additional Information
ADDITIONAL INFORMATION Packaging Disposal Government guidelines ask that we reduce the amount of waste material disposed of in land fill sites. We therefore ask that you dispose of all packaging waste responsibly at public recycling centres. End of Life Disposal We at Pure-Tec Limited hope you enjoy many years of enjoyable use from your Bike. -
Page 18: Pure-Tec Limited
LIMITED WARRANTY Pure-Tec warrants this product to be free from defects in workmanship and material, under normal use and service conditions. Please refer to www.puretecfitness.com for warranty terms. This warranty extends only to the original purchaser and is valid for home use only. Pure-Tec’s obligation under this Warranty is limited to replacing damaged or faulty parts at Pure-Tec’s option.
