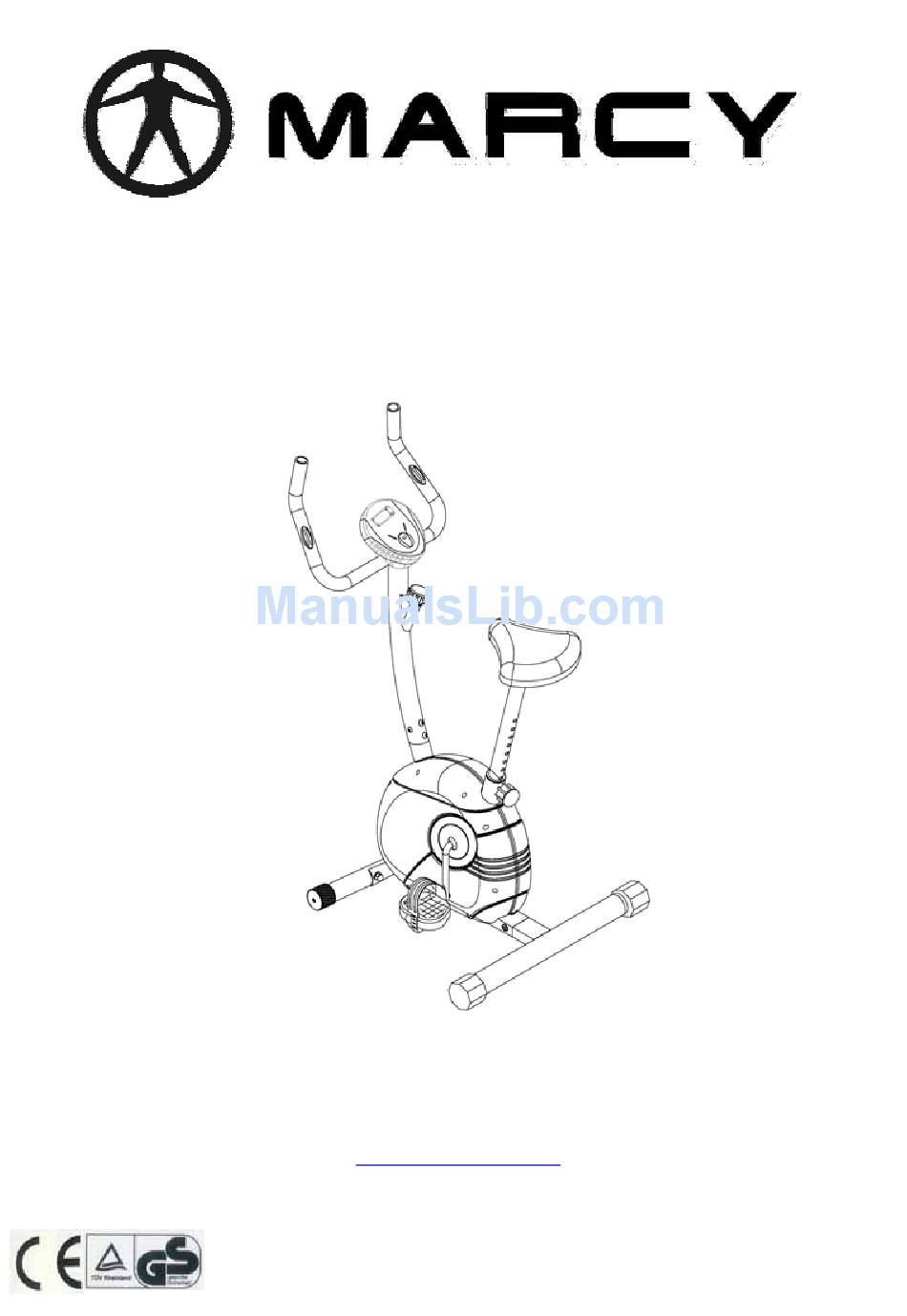

- Page 1 Motion Cycle Product Code: CL203 Escalade International Limited Pleasant Road, Penllergaer, Swansea. SA4 9GE Tel: 00 44 1792 222 550 Fax 00 44 1792 895 781 www.escaladesports.co.uk info@escaladesports.co.uk 16/09/2009-3...
-
Page 2: Table Of Contents
Contents Important Safety Information Weight Limit Capacities Hardware Parts List Pre Assembly Check List Assembly Instructions 6 - 9 User Guide Computer Instructions Exercise Instructions Fault Finding Chart Exploded Diagram Parts List Additional Information Care Maintenance Limited Warranty Supplied by Escalade International Ltd Pleasant Road Penllergaer... -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THIS OWNER’S MANUAL CONTAINS ASSEMBLY, OPERATION, MAINTENANCE AND SAFETY INFORMATION. IN THE INTEREST OF SAFETY, PLEASE MAKE CERTAIN THAT YOU READ AND UNDERSTAND ALL THE INFORMATION BELOW. 1. This cycle is intended for class H (H=Domestic) use only. It is not designed for commercial use. -
Page 4: Hardware Parts List
HARDWARE PARTS LIST PART NO. DESCRIPTION Q’TY Knob Carriage Bolt M8*L65mm Curve WasherΦ22 Domed Nut M8 Allen Bolt M8*15mm Flat Washer Φ25 Screw for Handlebar Flat Washer Φ17 Allen Key L6 Allen Wrench S13-15-19 Above described parts are all the parts you need to assemble this machine. Before you start to assemble, please check the hardware packing to make sure they are included. -
Page 5: Pre Assembly Check List
PRE-ASSEMBLY CHECK LIST PART NO. DESCRIPTION Q’TY Main Frame Front Stabilizer Rear Stabilizer Front Post Handlebar Computer Seat Post Seat Left Pedal Right Pedal User Manual Please note that some items of hardware may already be pre assembled onto your cycle. -
Page 6: Assembly Instruction
ASSEMBLY INSTRUCTION STEP 1 (a) Attach the front stabilizer (2) to the main frame (1), and tighten using 2 carriage bolts (15), curve washer (16) and domed nut (17). (b) Then, attach the rear stabilizer (3) to the main frame (1), using 2 allen bolts (18), and flat washer (19) for the bottom of rear stabilizer, then tighten 2 sets of allen bolt (18), and flat washer (27) for each side of the rear stabilizer. - Page 7 HOW TO CONNECT TENSION CONNECTOR Slide the Cable wire from the Upper Tension Connector in between the opening on the wire holder on the Lower Tension Connector Pull Upper Tension Connector backward and slide the wire through the slot on the bracket.
- Page 8 STEP 3 Assemble the computer with the computer holder (6) onto the top of front post (4). Plug the computer sensor wire (21) into the rear of the computer marked “sensor input”. Assemble the handlebar (5) to the front post (4) and tighten using 2 screws (26). Plug hand pulse wire (24) into the rear of the computer marked “pulse input”.
- Page 9 STEP 5 The left and right pedal (9) & (10) are marked "L" and "R". Connect them to their appropriate crank arm (25). The right pedal is on the right hand side of the cycle as you sit on it. Note that the right pedal should be threaded on clockwise and the left pedal on counter-clockwise.
-
Page 10: User Guide
USER GUIDE Transport Tension Control Decrease InIncrease... -
Page 11: Computer Instructions
COMPUTER INSTRUCTIONS FUNCTION MARK: SCAN: Auto scan ODO: Total distance SPEED: Speed CAL: Calorie DIST: Trip distance ♥ Pulse Riding time TIME: FUNCTIONS: 1. Reset: Pressing the button for more than 3 seconds will reset all functional values to zero except Odometer. -
Page 12: Exercise Instructions
EXERCISE INSTRUCTIONS Using your UPRIGHT MAGNETIC CYCLE will provide you with several benefits, it will improve your physical fitness, tone muscle and in conjunction with a calorie controlled diet help you lose weight. 1. The Warm Up Phase This stage helps get the blood flowing around the body and the muscles working properly. It will also reduce the risk of cramp and muscle injury. -
Page 13: Fault Finding Chart
3. The Cool Down Phase This stage is to let your Cardio-vascular System and muscles wind down. This is a repeat of the warm up exercise e.g. reduce your tempo, continue for approximately 5 minutes. The stretching exercises should now be repeated, again remembering not to force or jerk your muscles into the stretch. -
Page 14: Exploded Diagram
EXPLODED DIAGRAM... -
Page 15: Parts List
PARTS LIST PART NO. DESCRIPTION Q’TY Main Frame Front Stabilizer Rear Stabilizer Front Post Handlebar Computer Seat Post Seat Left Pedal Right Pedal Knob Flat Washer Φ17 Spring Washer Φ12.5 Nylon Nut M8 Carriage Bolt M8*L65mm Curve WasherΦ22 Domed Nut M8 Allen Bolt M8*15mm Flat Washer Φ25 Tension Knob and Upper Tension Cable... -
Page 16: Additional Information
ADDITIONAL INFORMATION Packaging Disposal Government guidelines ask that we reduce the amount of waste material disposed of in land fill sites. We therefore ask that you dispose of all packaging waste responsibly at public recycling centres. End of Life Disposal We at Escalade hope you enjoy many years of enjoyable use from your Cycle. -
Page 17: Limited Warranty
LIMITED WARRANTY Escalade warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of one year from the date of purchase. This warranty extends only to the original purchaser. Escalade’s obligation under this Warranty is limited to replacing damaged or faulty parts at Escalade’s option.
