SATEL
COBALT • COBALT Plus • COBALT Pro
3

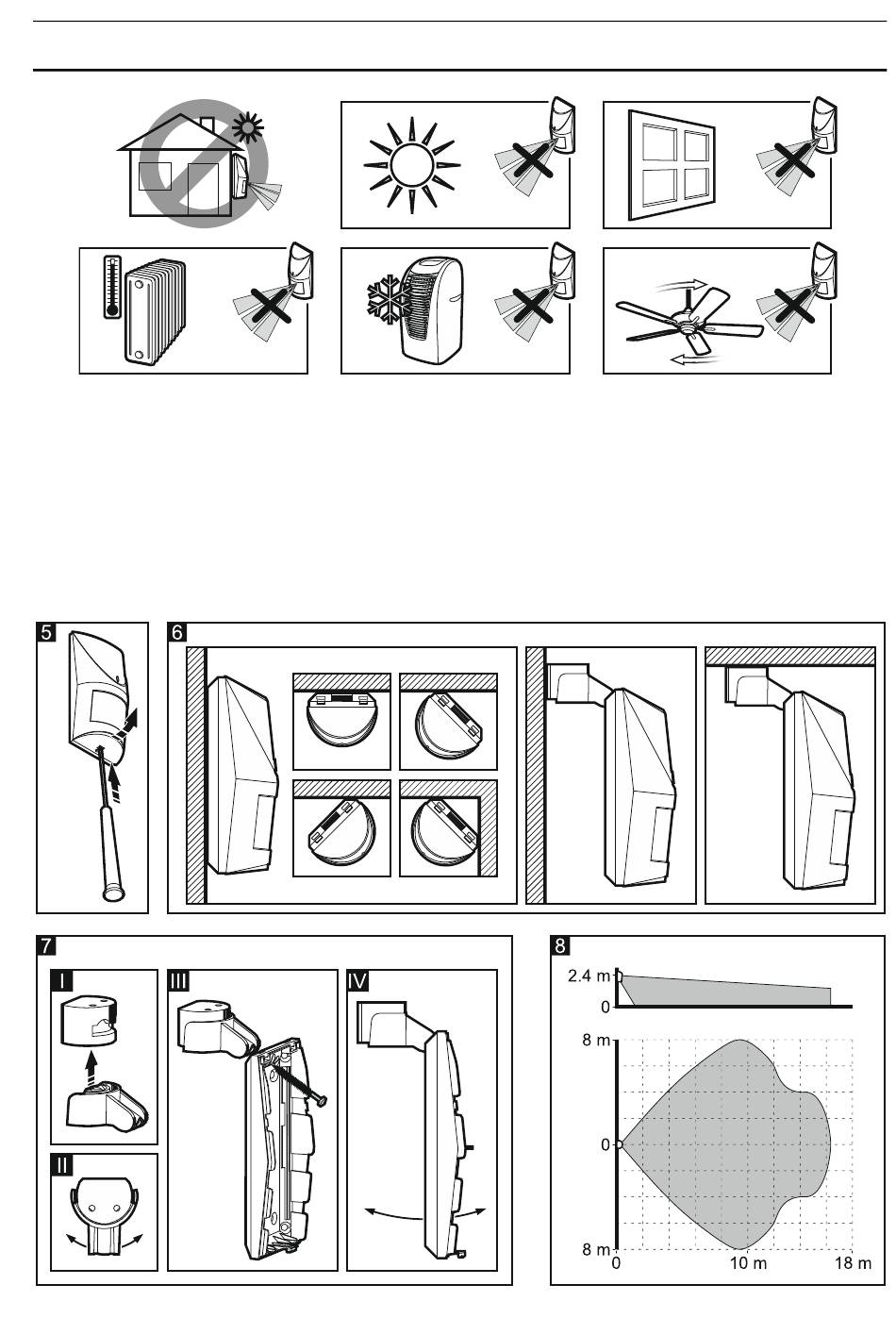

4. Installation
1. Remove the front cover (Fig. 5).
2. Remove the electronics board.
3. Make the openings for screws and cable in the enclosure base.
4. Pass the cable through the prepared opening.
5. Secure the enclosure base directly to the wall or to the bracket screwed down to the
wall/ceiling (Fig. 6 and 7).
6. Fasten the electronics board.
7. Connect the wires to the corresponding terminals.
8. Using potentiometer and jumpers, set the detector working parameters.
