Summary of Contents for Satel CD-2
- Page 1 CD-2 Curtain detector Firmware version 1.00 cd-2_en 10/21 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.eu...
- Page 2 The rating plate of the device is located on the enclosure base. SATEL aims to continually improve the quality of its products, which may result in changes in their technical specifications and software. Current information about the changes being introduced is available on our website.
- Page 3 CONTENTS Features ........................... 2 Specifications ........................2 Description ........................2 Supervision features ......................2 LED........................... 3 Electronics board ......................3 Selecting a mounting location ................... 4 Installation ........................4 Start-up and walk test ....................... 5...
- Page 4 CD-2 SATEL The CD-2 detector detects motion in the protected area. Its coverage area is shaped like a curtain which makes it suitable as a component of parameter protection. This manual applies to the detector with electronics version 1.0. 1 Features ...
- Page 5 SATEL CD-2 The red LED indicates: warm-up – flashing for about 30 seconds; alarm – ON for 2 seconds; trouble – ON for entire duration of the trouble. You can enable / disable the alarm indication by using the LED pins (Fig. 1). Put a jumper across the pins to enable the alarm indication.
- Page 6 CD-2 SATEL 5 Selecting a mounting location Do not install the detector outdoors (A). Do not point the detector towards heat sources (B), air conditioners (C) or fans (D). Install the detector in a place where the expected direction of the intruder movement will be across the coverage pattern (Fig.

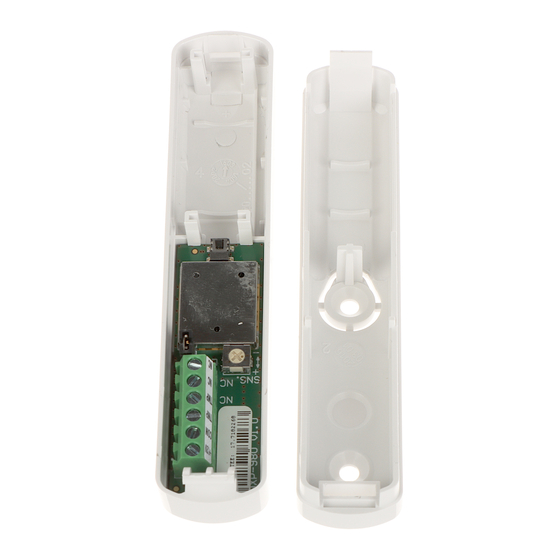

- Page 7 SATEL CD-2 1. Remove the detector cover (Fig. 3). The enclosure opening tool, shown in the illustration, is included in the detector delivery set. 2. Make a screw hole in the enclosure base. 3. Pass the cable through the prepared hole (Fig. 4).
- Page 8 CD-2 SATEL...
