4

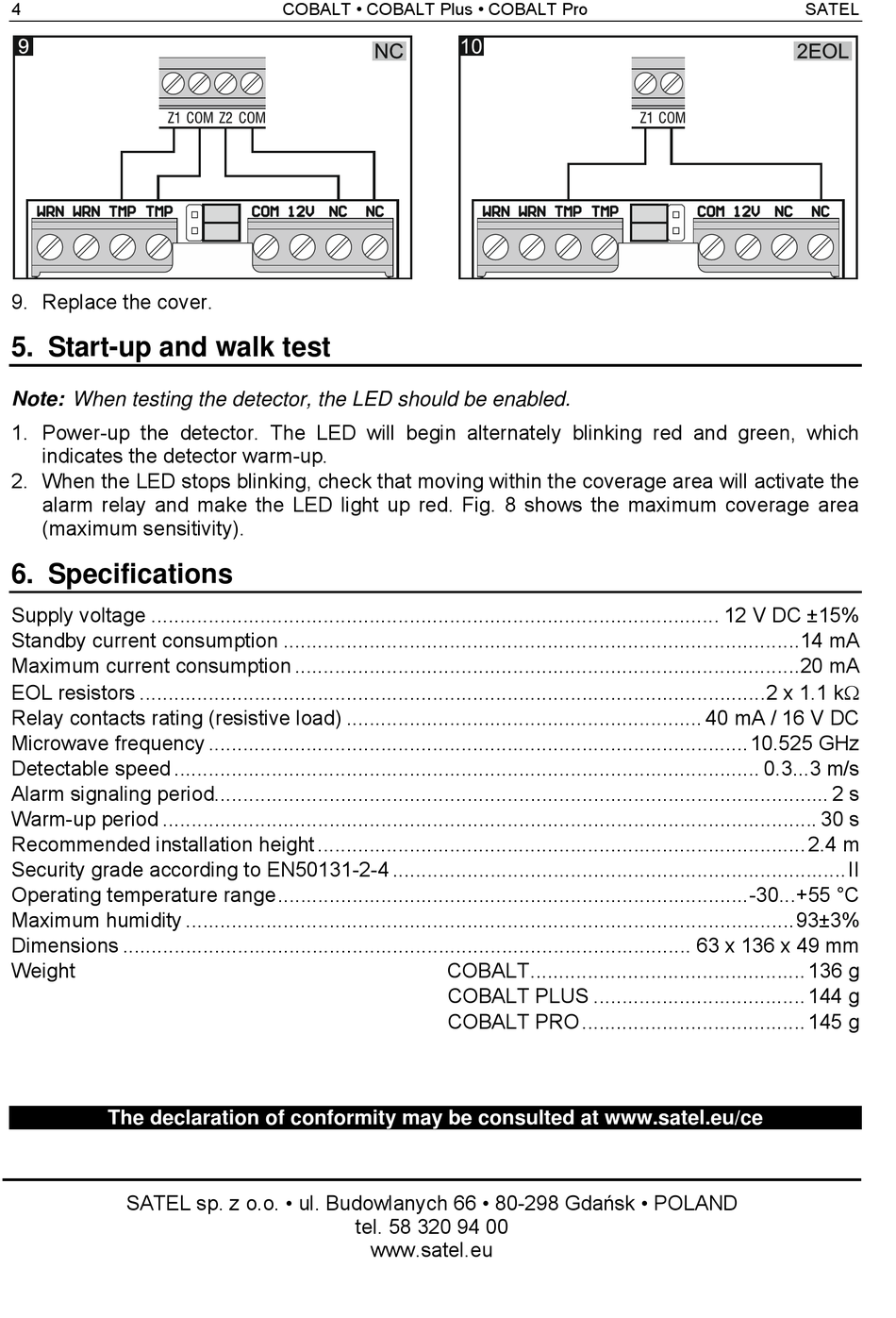

9. Replace the cover.

5. Start-up and walk test

Note: When testing the detector, the LED should be enabled.
1. Power-up the detector. The LED will begin alternately blinking red and green, which
indicates the detector warm-up.
2. When the LED stops blinking, check that moving within the coverage area will activate the
alarm relay and make the LED light up red. Fig. 8 shows the maximum coverage area
(maximum sensitivity).

6. Specifications

Supply voltage ................................................................................................... 12 V DC ±15%
Standby current consumption ..........................................................................................14 mA
Maximum current consumption ........................................................................................20 mA
EOL resistors .............................................................................................................2 x 1.1 k
Relay contacts rating (resistive load) .............................................................. 40 mA / 16 V DC
Microwave frequency ..............................................................................................10.525 GHz
Detectable speed ...................................................................................................... 0.3...3 m/s
Alarm signaling period........................................................................................................... 2 s
Warm-up period .................................................................................................................. 30 s
Recommended installation height ..................................................................................... 2.4 m
Security grade according to EN50131-2-4 ...............................................................................II
Operating temperature range..................................................................................-30...+55 °C
Maximum humidity ..........................................................................................................93±3%
Dimensions ................................................................................................... 63 x 136 x 49 mm
Weight
The declaration of conformity may be consulted at www.satel.eu/ce
SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND
COBALT • COBALT Plus • COBALT Pro
COBALT................................................ 136 g
COBALT PLUS ..................................... 144 g
COBALT PRO ....................................... 145 g
tel. 58 320 94 00
www.satel.eu
