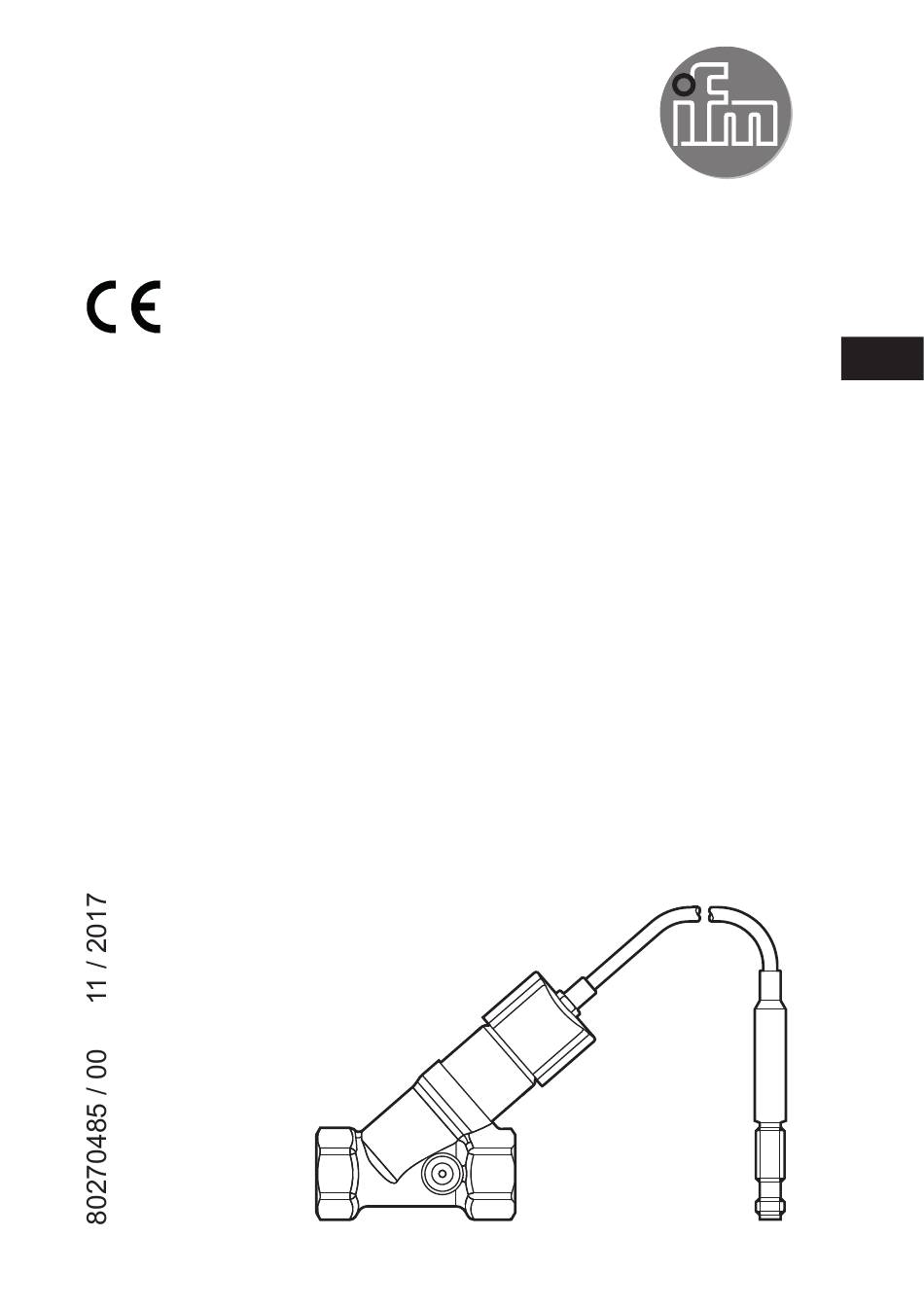

- Page 1 Operating instructions Mechatronic flow sensor SBT633 SBT634 SB0527...
-
Page 2: Safety Instructions
1 Preliminary note Technical data, approvals, accessories and further information at www.ifm.com. ► Instructions → Cross-reference Important note Non-compliance may result in malfunction or interference. Information Supplementary note. 2 Safety instructions • Read this document before setting up the product and keep it during the entire service life. - Page 3 4 Function Q [l/min] 1: fi nal value of the measuring range The analogue signal for water (20 °C) is linear from 4 mA (= no flow) to 20 mA (= final value of the measuring range, see Technical Data). For an output signal >...
- Page 4 5 Installation WARNING Personal injury can occur if the unit and connections become hot or media under pressure (up to 15 bar) or hot media (up to 180 °C) leak. ► Install the unit according to the applicable rules and regulations. ►...
-
Page 5: Electrical Connection
WH: white Colours to DIN EN 60947-5-2 7 Technical data and scale drawing Technical data and scale drawing at www.ifm.com 8 Maintenance, repair, disposal If used correctly, no maintenance and repair measures are necessary. In case of strongly polluted media: mount a filter before the inlet (IN).
