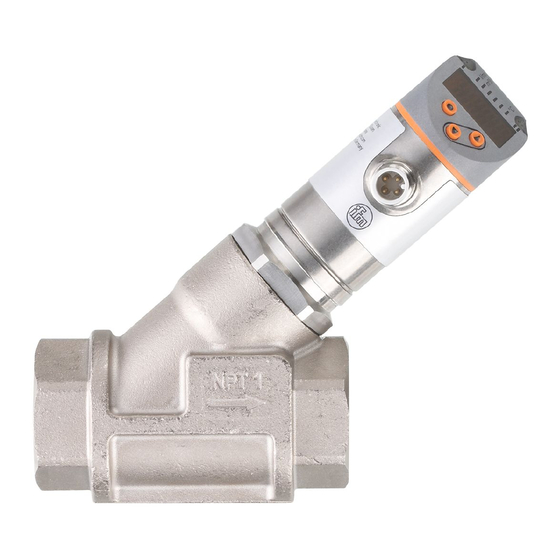

- Page 1 Operating instructions Mechatronic flow sensor SB1xxx SB2xxx SB3xxx SB4xxx SB5xxx SB6xxx SB7xxx SB8xxx SB9xxx SB03xx...
-
Page 2: Table Of Contents
SB1xxx SB2xxx SB3xxx SB4xxx SB5xxx SB6xxx SB7xxx SB8xxx SB9xxx SB03xx Mechatronic flow sensor Contents Preliminary note ............. Symbols used . -
Page 3: Preliminary Note
SB1xxx SB2xxx SB3xxx SB4xxx SB5xxx SB6xxx SB7xxx SB8xxx SB9xxx SB03xx 1 Preliminary note You will find instructions, technical data, approvals and further information using the QR code on the unit / packaging or at www.ifm.com. 1.1 Symbols used Requirement Instructions Reaction, result [...]... -
Page 4: Safety Instructions
SB1xxx SB2xxx SB3xxx SB4xxx SB5xxx SB6xxx SB7xxx SB8xxx SB9xxx SB03xx Mechatronic flow sensor 2 Safety instructions • The unit described is a subcomponent for integration into a system. – The system architect is responsible for the safety of the system. – The system architect undertakes to perform a risk assessment and to create documentation in accordance with legal and normative requirements to be provided to the operator and user of the system. -
Page 5: Intended Use
Mechatronic flow sensor SB1xxx SB2xxx SB3xxx SB4xxx SB5xxx SB6xxx SB7xxx SB8xxx SB9xxx SB03xx 3 Intended use The unit monitors industrial oils. The unit detects the process categories volume flow (volumetric flow quantity/time) and medium temperature. ATTENTION Frost formation of the medium. w The sensor may be damaged. -
Page 6: Function
IO-Link is a communication system for connecting intelligent sensors and actuators to automation systems. IO-Link is standardised in the IEC 61131-9 standard. General information on IO-Link at io-link.ifm Input Output Device Description (IODD) with all parameters, process data and detailed descriptions of the device at documentation.ifm.com... -
Page 7: Mounting
Mechatronic flow sensor SB1xxx SB2xxx SB3xxx SB4xxx SB5xxx SB6xxx SB7xxx SB8xxx SB9xxx SB03xx 5 Mounting CAUTION During installation or in case of a fault (e.g. housing damage) media under high pressure or hot media can leak from the system. w Risk of injury caused by pressure or burns. u Ensure that the system is free of pressure during installation. -
Page 8: Mounting Accessories
Fig. 2: Installation with mounting plate threaded hole M8 (depth 6 mm) on the bottom side of the unit Information about available accessories at www.ifm.com 5.4 Installation in case of medium containing dirt u Use a 200-micron filter in front of the inlet (IN). -
Page 9: Electrical Connection
Mechatronic flow sensor SB1xxx SB2xxx SB3xxx SB4xxx SB5xxx SB6xxx SB7xxx SB8xxx SB9xxx SB03xx 6 Electrical connection The unit must be connected by a qualified electrician. Observe the national and international regulations for the installation of electrical equipment. Voltage supply according to SELV, PELV. u Disconnect power. -
Page 10: Operating And Display Elements
SB1xxx SB2xxx SB3xxx SB4xxx SB5xxx SB6xxx SB7xxx SB8xxx SB9xxx SB03xx Mechatronic flow sensor 7 Operating and display elements Switching status LED for OUT1 Switching status LED for OUT2 Process value in the indicated unit of measurement * 4-digit alphanumeric display Keys for changing views and parameter setting Fig. 6: Operating and display elements * l/min, m... -
Page 11: Menu
Mechatronic flow sensor SB1xxx SB2xxx SB3xxx SB4xxx SB5xxx SB6xxx SB7xxx SB8xxx SB9xxx SB03xx 8 Menu The figures in which the menus are displayed show the parameters that can be set on the unit by key input. These parameters and other functions are also available via the IO-Link interface. Process value display Main menu Extended functions... - Page 12 SB1xxx SB2xxx SB3xxx SB4xxx SB5xxx SB6xxx SB7xxx SB8xxx SB9xxx SB03xx Mechatronic flow sensor Main menu - - - - Fig. 9: Extended functions [EF] menu Hno Hnc Fno Fnc FRQ Hno Hnc Fno Fnc uni.F Lmin uni.T °C °F FOU1 FOU2 SEL1 FLOW TEMP...
-
Page 13: Available Parameters
Mechatronic flow sensor SB1xxx SB2xxx SB3xxx SB4xxx SB5xxx SB6xxx SB7xxx SB8xxx SB9xxx SB03xx coLr GrEn r1ou G1ou r2ou G2ou rd3 OFF SELd FLOW TEMP Fig. 12: Display settings [DIS] menu 8.2 Available parameters Parameter Explanation Change to the submenu CGF (basic settings) Calibration factor in % for adapting the measured value curve to the application colr Colour configuration of the display... -
Page 14: Set-Up
SB1xxx SB2xxx SB3xxx SB4xxx SB5xxx SB6xxx SB7xxx SB8xxx SB9xxx SB03xx Mechatronic flow sensor 9 Set-up After power on and expiry of the power-on delay time, the unit is in the normal operating mode. It carries out its measurement and evaluation functions and generates output signals according to the set parameters. -
Page 15: Parameter Setting
> 30 seconds (timeout) 10.2 Parameter setting via IO-Link Requirements for parameter setting via the IO-Link interface: ü A suitable parameter setting software, e.g. ifm moneo|configure ü The Input Output Device Description (IODD) for the device, see documentation.ifm.com ü One IO-Link master u Connect the IO-Link master to a parameter setting software. -
Page 16: Output Functions
SB1xxx SB2xxx SB3xxx SB4xxx SB5xxx SB6xxx SB7xxx SB8xxx SB9xxx SB03xx Mechatronic flow sensor u Change parameter settings in the software. u Write parameter settings to the unit. Notes on parameter setting Ò Manual of the parameter setting software 10.3 Output functions 10.3.1 Switching signal A switching signal can be output for process value monitoring. -
Page 17: Analogue Signal
Mechatronic flow sensor SB1xxx SB2xxx SB3xxx SB4xxx SB5xxx SB6xxx SB7xxx SB8xxx SB9xxx SB03xx u Set hysteresis function or window function. Hysteresis function: u Call up the menu [EF] > [CFG]. u Select [oux] and set the switching signal: Hno or Hnc. u Call up the [main menu]. - Page 18 SB1xxx SB2xxx SB3xxx SB4xxx SB5xxx SB6xxx SB7xxx SB8xxx SB9xxx SB03xx Mechatronic flow sensor [mA] FOU=On 21,5 FOU=OFF [% MEW] Fig. 15: Output characteristics of the analogue output, flow Analogue signal MAW: Initial value of the measuring range Flow MEW: Final value of the measuring range Measuring range Above the display range Display range...
-
Page 19: Frequency Signal
Mechatronic flow sensor SB1xxx SB2xxx SB3xxx SB4xxx SB5xxx SB6xxx SB7xxx SB8xxx SB9xxx SB03xx 10.3.3 Frequency signal The unit provides a frequency signal proportional to the process value. The frequency signal is scalable: • [FrPx] defines the frequency signal in Hz that is provided when the upper measured value (MEW or FEPx) is reached. - Page 20 SB1xxx SB2xxx SB3xxx SB4xxx SB5xxx SB6xxx SB7xxx SB8xxx SB9xxx SB03xx Mechatronic flow sensor [% FrP1] FOU = ON 130 = FrP1 FOU = OFF FSP1 FEP1 MEW [% MEW] Fig. 18: Output characteristics frequency output, temperature Frequency signal FSP1: Frequency start point Temperature FEP1: Frequency end point...
-
Page 21: Error Behaviour Of The Outputs
Mechatronic flow sensor SB1xxx SB2xxx SB3xxx SB4xxx SB5xxx SB6xxx SB7xxx SB8xxx SB9xxx SB03xx 10.3.4 Error behaviour of the outputs The response of the OUTx output in case of a fault can be set via the parameter [FOUx]. Depending on the selected output function, the following signals are provided in case of a fault: •... -
Page 22: Process Value For Out1 And Out2
The calibration factor influences the slope of the measurement characteristic of the flow measurement. The sensor is suitable for oils with indicated viscosity (Ò Technical data at documentation.ifm.com). The indicated viscosity applies to an oil temperature of 40 °C. For this oil, the sensor automatically compensates the viscosity change in the temperature range of 20...70 °C. -
Page 23: Output Polarity Of The Switching Outputs
Mechatronic flow sensor SB1xxx SB2xxx SB3xxx SB4xxx SB5xxx SB6xxx SB7xxx SB8xxx SB9xxx SB03xx ν: Viscosity of the oil ʋ Temperature of the oil Reference oil Oil 1 Oil 2 + CGA 20°C 40 °C Fig. 19: Measured value characteristic for 3 oils 10.4.3.1 Parameter setting via unit keys: Calibration u Call up the menu [EF] >... -
Page 24: Memory
SB1xxx SB2xxx SB3xxx SB4xxx SB5xxx SB6xxx SB7xxx SB8xxx SB9xxx SB03xx Mechatronic flow sensor 10.4.5.1 Parameter setting via unit keys: Measured value damping u Call up the menu [EF] > [CFG]. u Select [dAP] and set the damping time in seconds (τ-value 63 %). u Select [dAA] and set a damping time in seconds. -
Page 25: Display
Mechatronic flow sensor SB1xxx SB2xxx SB3xxx SB4xxx SB5xxx SB6xxx SB7xxx SB8xxx SB9xxx SB03xx u Briefly press [●]. w The unit carries out a reboot. 10.4.7.2 Parameter setting via IO-Link: Device reset u Select [Parameter] > [Basic settings]. u Click on the system command [Restore Factory Settings]. w The unit carries out a reboot. -
Page 26: Display Update Rate
SB1xxx SB2xxx SB3xxx SB4xxx SB5xxx SB6xxx SB7xxx SB8xxx SB9xxx SB03xx Mechatronic flow sensor MAW: Initial value of the measuring range FH1 / MEW: Final value of the measuring range FLx: Lower limit of the window section FL1 / FHx: Upper limit of the window section Fig. 21: Window function, [coLr] = Gxou 10.5.2.1 Parameter setting via unit keys: Display colour setting... -
Page 27: Switch Off The Display
Mechatronic flow sensor SB1xxx SB2xxx SB3xxx SB4xxx SB5xxx SB6xxx SB7xxx SB8xxx SB9xxx SB03xx 10.5.4.2 Parameter setting via IO-Link: Display orientation u Call up [Parameters] > [Display Setting]. u Select [diS. Display orientation] and set the clockwise rotation of the display: • not rotated. -
Page 28: Operation
SB1xxx SB2xxx SB3xxx SB4xxx SB5xxx SB6xxx SB7xxx SB8xxx SB9xxx SB03xx Mechatronic flow sensor 11 Operation 11.1 Process value display It is possible to switch between different process value indications during operation: u Press [▲] or [▼]. w The display changes between the standard indication with set standard unit of measurement and other views. -
Page 29: Troubleshooting
If several diagnostic events occur simultaneously, only the diagnostic message of the event with the highest priority is displayed. If the measured temperature value fails, the process value for flow rate is still available. Additional diagnostic functions are available via IO-Link Ò IO-Link interface description at documentation.ifm.com. 12.1 Error messages Indication Problem/remedy Display off Supply voltage too low. -
Page 30: Maintenance, Repair And Disposal
SB1xxx SB2xxx SB3xxx SB4xxx SB5xxx SB6xxx SB7xxx SB8xxx SB9xxx SB03xx Mechatronic flow sensor 13 Maintenance, repair and disposal The operation of the unit is maintenance-free. Only the manufacturer is allowed to repair the unit. u After use dispose of the device in an environmentally friendly way in accordance with the applicable national regulations. -
Page 31: Factory Settings
Mechatronic flow sensor SB1xxx SB2xxx SB3xxx SB4xxx SB5xxx SB6xxx SB7xxx SB8xxx SB9xxx SB03xx 14 Factory settings Parameter Factory setting User setting SP1 / FH1 (FLOW) rP1 / FL1 (FLOW) SP1 / FH1 (TEMP) 70 °C rP1 / FL1 (TEMP) 20 °C FrP1 (FLOW) FrP1 (TEMP) FSP1 (TEMP)
