ifm efector inc.
TEL: 800-441-8246 • FAX: 800-329-0436
www.ifmefector.com

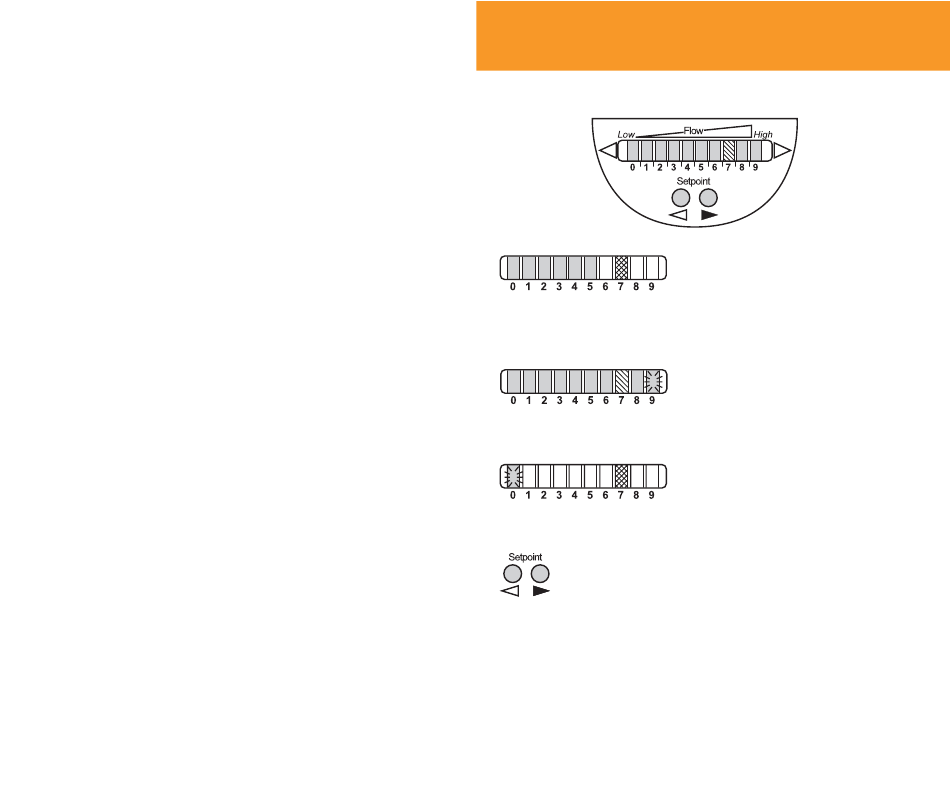

Visual Indicators and Controls
Green LEDs indicate current flow
Orange LED indicates setpoint, output closed
Red LED indicates setpoint outpoint open
LED 9 flashing indicates current flow is above
the taught flow range
LED 0 flashing indicates current flow is much below
the taught flow range
Pushbuttons for automatic / manual setting
A short circuit is indicated when the display alternately
changes between all red LEDs and the current flow indication.
If no LEDs are lit, check supply voltage (must be >19 V).
3/08
Lit. No.: B10308
SI 5000, SI 5001, SI 5010,
SI5011, SI 5006
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for IFM SI 5000
Summary of Contents for IFM SI 5000
- Page 1 SI 5000, SI 5001, SI 5010, SI5011, SI 5006 Visual Indicators and Controls Green LEDs indicate current flow Orange LED indicates setpoint, output closed Red LED indicates setpoint outpoint open LED 9 flashing indicates current flow is above the taught flow range...
- Page 2 Setpoint adjustment Set-up and scaling the display If a faster response time is desired (low setpoint = fast response with rising flow, high setpoint = fast response time The sensor is factory preset to monitor the range 5…100 cm / with falling flow), adjust the setpoint as shown.
