ASSEMBLY

Assembly requires two persons. Place all parts of the exercise bike in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s), assembly requires an adjustable wrench and a Phillips
screwdriver .

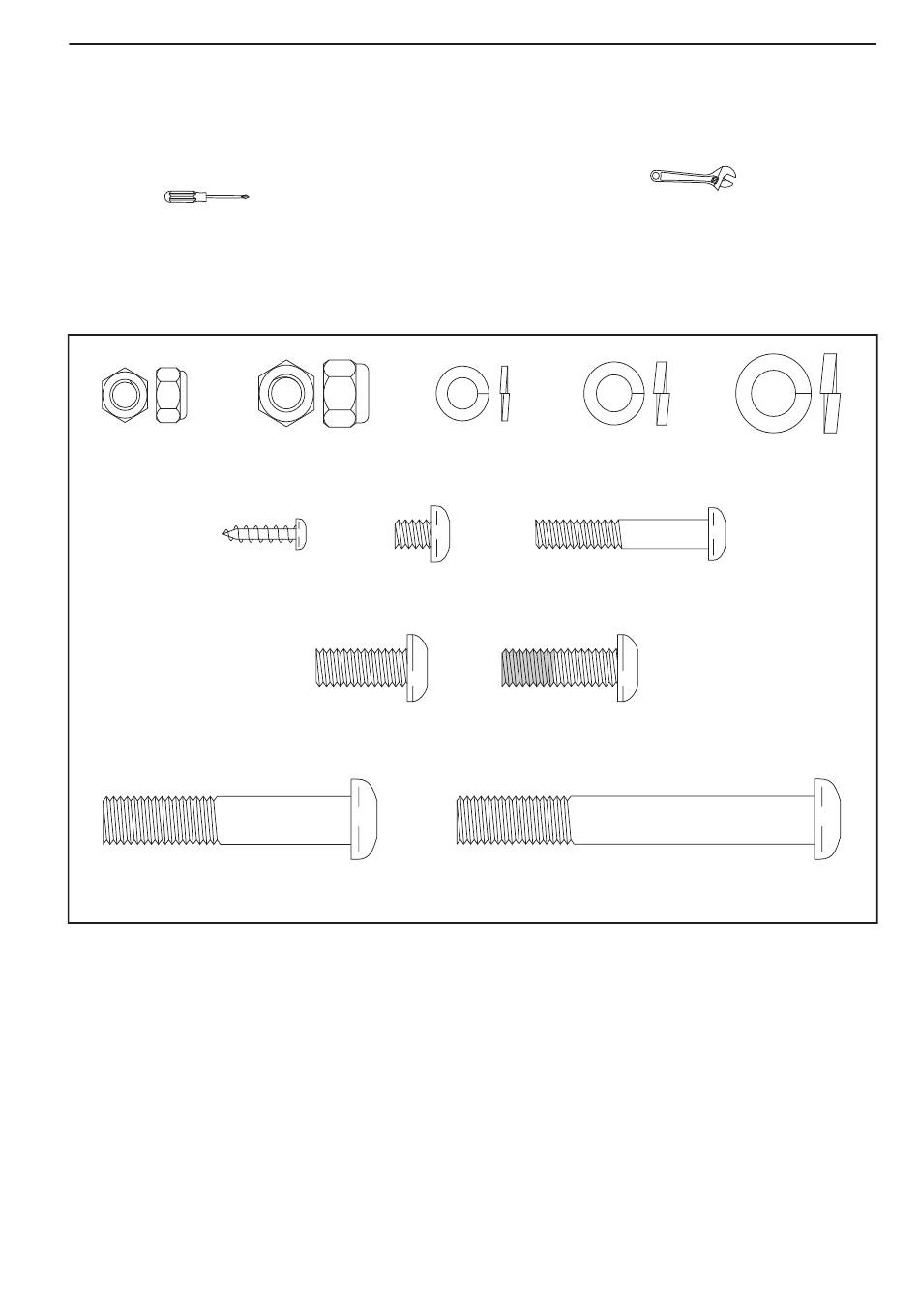

Use the part drawings below to identify the small parts used in assembly. The number in parentheses below
each drawing refers to the key number of the part, from the PART LIST near the end of this manual. The number
following the parentheses is the quantity needed for assembly. Note: If a part is not in the hardware kit,
check to see if it has been preassembled.
M6 Locknut M8 Locknut M6 Split M8 Split M10 Split
(54)–4 (37)–4 Washer (36)–8 Washer (34)–4
Washer (43)–4
M4 x 16mm M6 x 8mm Button M6 x 38mm Button
Screw (40)–9 Screw (56)–1 Bolt (53)–4
M8 x 20mm Button M8 x 25mm Patch
Screw (35)–4 Screw (50)–2
M10 x 54mm Button Screw (33)–2 M10 x 78mm Button Screw (67)–2
5
