Mechanical Installation Instructions

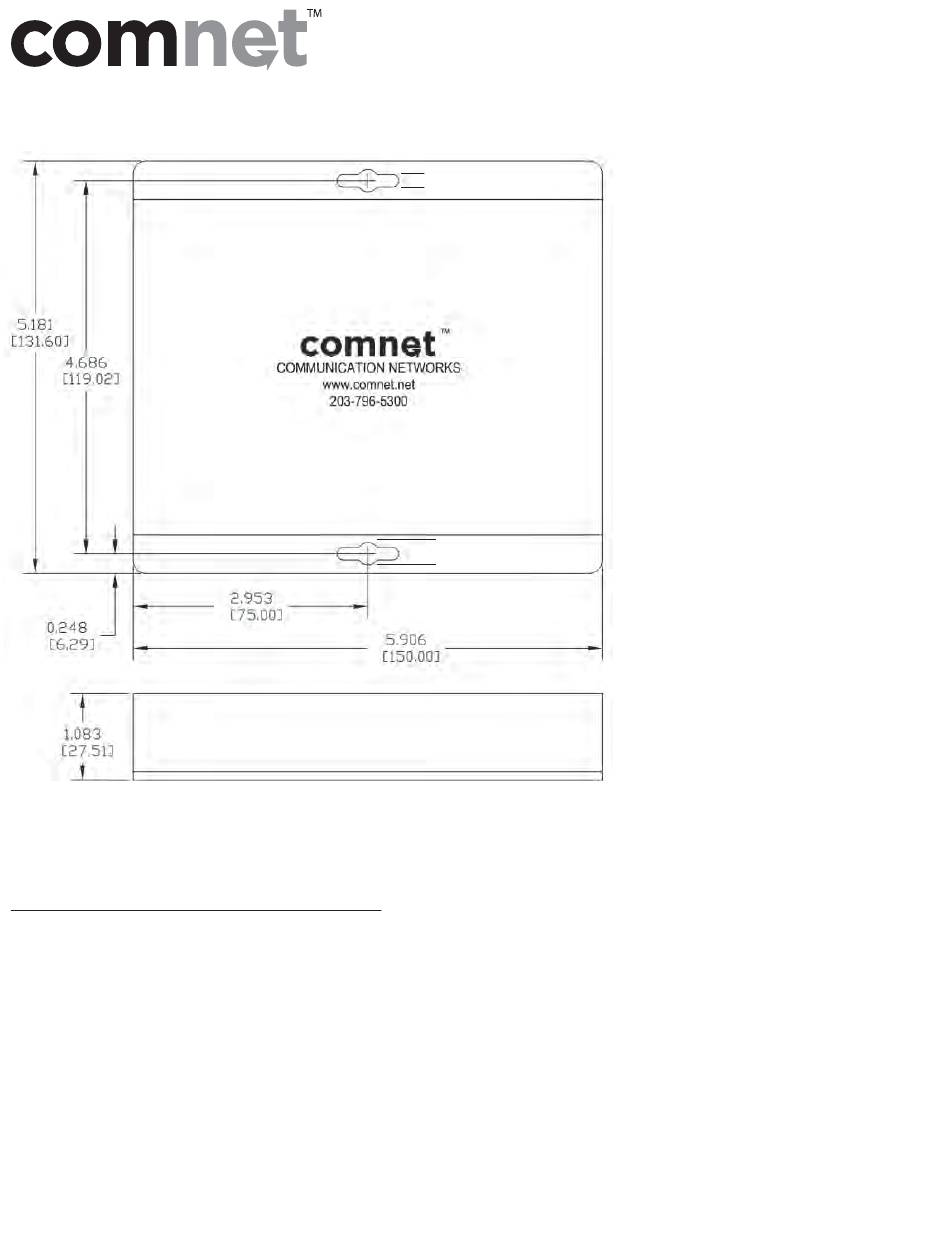

Figure 1: Dimensions are for a standard ComNet
Rack Module:
The unit is designed to be installed in the ComNet 19-inch (483-mm) EIA standard card-cage rack, the C1-US,
C1-EU, or the C1-CH. Follow these guidelines to install rack cards after performing module setup procedures.
C1-US, C1-EU, or the C1-CH Card Cage Racks
CAUTION: Although the units are hot-swappable and may be installed without turning power off to the rack,
ComNet recommends that the power supply be turned off and that the rack power supply is disconnected
from any power source. Note: Remove electrical connector before installing in card cage rack.
1. Make sure that the card is oriented right side up, and slide it into the card guides in the rack until the
edge connector at the back of the card seats in the corresponding slot in the rack's connector panel.
Seating may require thumb pressure on the top and bottom of the card's front panel.
CAUTION: Take care not to press on any of the LEDs.
2. Tighten the two thumb screws on the card until the front panel of the card
is seated against the front of the rack.
one slot module.
.156 [3.96 mm]
.313 [7.95 mm]
FVT/FVR1031
Installation Considerations
This fiber-optic link is supplied as
a Standalone/Rack module.
Units should be installed in dry
locations protected from extremes
of temperature and humidity.
Standalone Module:
The unit is provided with a mount-
ing plate with holes for two No. 6 pan
head screws (3-mm or 3.55-mm).
Attach the module to a solid piece
of wood using two No. 6 pan head
wood screws with a minimum
penetration into the wood of
3/4 inch. (Screws not supplied)
See figure 1.
1. Determine where the module will
be installed, and ensure that there
is adequate space at both ends
for making the various cable
connections and for reading the
diagnostic LEDs.
2. Attach the module to a flat surface
using two mounting screws.
INS_FVTFVR1031_REVA
07/24/09
Page 1
