This manual serves the following
ComNet Model Numbers:
CLFE1EOC
CLFE4EOC
CLFE8EOC
CLFE16EOC
CLFE1EOU
CLFE4EOU
CLFE8EOU
CLFE16EOU
TECH SUPPORT: 1.888.678.9427
INSTALLATION AND OPERATION MANUAL
CLFE(X)EO(C,U) Series
ETHERNET OVER COPPER EXTENDER
WITH PASS-THROUGH POE TO 15 WATTS

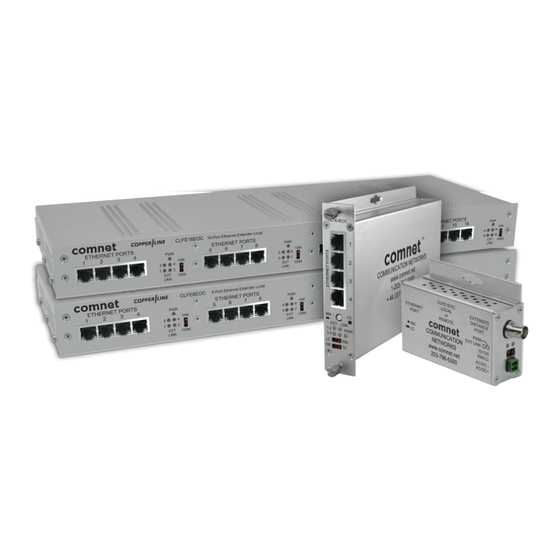

The ComNet
CopperLine® Ethernet over copper line supports up to sixteen
™
channels of 10/100Mbps Ethernet with Pass-through PoE over twisted pair cable
(CAT-5, UTP), or over coaxial cable. The single channel units may be powered by a
PoE switch or the included power supply. Four, eight, and sixteen channel units
operate from local power. These units provide the ultimate flexibility for extending
a powered device (PD) over long distance copper. DIP switches are provided for user-
selection of local or remote, 10 or 100Mbps, and 1 pair or 4 pair (UTP) settings.
Bi-color (Red/Green) LED indicators are provided for rapidly ascertaining equipment
operating status. Table 2 on Page 9 describes the LED indicators for each light on
the unit.
The CLFE8EO(C,U) and CLFE16EO(C,U) are 1RU rack mountable units. The
CLFE4EO(C,U) units are interchangeable between stand-alone or card mount
configurations, or may be DIN-rail mounted by the addition of ComNet model
DINBKT1 or DINBKT4 adaptor plate. The CLFE1EO(C,U) units are stand-alone, or
may be DIN-rail mounted by the addition of ComNet model DINBKT4 adaptor. See
Figures A through C on Page 11 for mounting instructions.
INS_CLFE(X)EO(C,U)_REV– 10/27/11 PAGE 1
Advertisement
Table of Contents
Related Manuals for Comnet Copper Line CLFEEO Series
Summary of Contents for Comnet Copper Line CLFEEO Series
- Page 1 DIN-rail mounted by the addition of ComNet model DINBKT1 or DINBKT4 adaptor plate. The CLFE1EO(C,U) units are stand-alone, or may be DIN-rail mounted by the addition of ComNet model DINBKT4 adaptor. See Figures A through C on Page 11 for mounting instructions.
- Page 2 INSTALLATION AND OPERATION MANUAL CLFE(X)EO(C,U) SERIES FIGURE 1 – CLFE1EOC SINGLE CHANNEL COAX UNIT ETHERNET EXT DISTANCE Power: Operates on PoE power Black w/ White Stripe (AC or DC–) OR 9 to 36 VDC Black (AC or DC+) OR 24 VAC Power Consumption: 1.5 W FIGURE 2 –...
- Page 3 INSTALLATION AND OPERATION MANUAL CLFE(X)EO(C,U) SERIES FIGURE 3 – CLFE4EOC FOUR CHANNEL SURFACE OR RACK MOUNT COAX UNIT CH1 EXT CH1 ETHERNET DISTANCE CH2 EXT CH2 ETHERNET DISTANCE CH3 EXT CH3 ETHERNET DISTANCE CH4 EXT CH4 ETHERNET DISTANCE Black w/ White Stripe (DC–) Black (DC+) Operating Power: 9 to 15 VDC...
- Page 4 INSTALLATION AND OPERATION MANUAL CLFE(X)EO(C,U) SERIES FIGURE 5 – CLFE4EOU FOUR CHANNEL SURFACE OR RACK MOUNT UTP UNITS CH1 EXT CH1 ETHERNET DISTANCE CH2 EXT CH2 ETHERNET DISTANCE CH3 EXT CH3 ETHERNET DISTANCE CH4 EXT CH4 ETHERNET DISTANCE Black w/ White Stripe (DC–) Black (DC+) Operating Power: 9 to 15 VDC...
- Page 5 INSTALLATION AND OPERATION MANUAL CLFE(X)EO(C,U) SERIES FIGURE 7 – CLFE8EOC MULTICHANNEL RACK COAX UNITS Black w/ White Stripe (DC–) Black (DC+) Operating Power: 9 to 15 VDC Power Consumption: 10W Data rate DIP switch Data rate DIP switch See Installation See Installation Instructions, Step 1 Instructions, Step 1...
- Page 6 INSTALLATION AND OPERATION MANUAL CLFE(X)EO(C,U) SERIES FIGURE 9 – CLFE16EOC MULTICHANNEL RACK COAX UNITS Black w/ White Stripe (DC–) Black (DC+) Operating Power: 9 to 15 VDC Power Consumption: 20W Data rate DIP switch Data rate DIP switch Data rate DIP switch Data rate DIP switch See Installation See Installation...
- Page 7 INSTALLATION AND OPERATION MANUAL CLFE(X)EO(C,U) SERIES FIGURE 10 – CLFE16EOU MULTICHANNEL RACK UTP UNITS Black w/ White Stripe (DC–) Black (DC+) Operating Power: 9 to 15 VDC Power Consumption: 20W Data rate DIP switch Data rate DIP switch Data rate DIP switch Data rate DIP switch See Installation See Installation...
-
Page 8: Application Diagrams
Your actual network will differ, requiring changes or perhaps additional network Power Power Power equipment to accommodate the systems as illustrated. Please contact ComNet’s Design Center to discuss your specific requirements. TECH SUPPORT: 1.888.678.9427 INS_CLFE(X)EO(C,U)_REV– 10/27/11 PAGE 8... -
Page 9: Installation Instructions
CLFE8EO(C,U) 9 to 15 VDC CLFE16EO(C,U) Contact ComNet pre-sales support, or refer to the appropriate installation and operation manual when configuring and specifying power for a deployment. † 7 - VERIFY FUNCTIONALITY See LED table below and Troubleshooting Guide if corrective action is needed. See figures beginning on page 6 for LED configurations for each model. -
Page 10: Application Notes
INSTALLATION AND OPERATION MANUAL CLFE(X)EO(C,U) SERIES APPLICATION NOTES Mixed PoE and Non-PoE systems can be implemented. All Non-PoE systems require local power. PoE powered operation requires that a PoE Camera be connected, and that the camera power requirements are understood. Multiple Channel units (CLFE4EO(C,U), CLFE8EO(C,U), CLFE16EO(C,U) require 9 to 15 VDC for proper operation. - Page 11 INSTALLATION AND OPERATION MANUAL CLFE(X)EO(C,U) SERIES PRODUCT DIMENSIONS The CLFE1EO(C,U) is supplied as a standalone/surface mount (small size) module. The CLFE4EO(C,U) is supplied as a standalone/surface/rack (ComFit) module. The CLFE8EO(C,U) and CLFE16EO(C,U) are supplied as 19″ wide rack units for standalone or rack installation. FIGURE A FIGURE B Dimensions are for a small size module...
- Page 12 LEEDS, UK LS27 7LE T: +44 (0)113 307 6400 F: +44 (0)113 253 7462 INFO-EUROPE@COMNET.NET © 2014 Communication Networks. All Rights Reserved. “ComNet,” the “ComNet Logo,” “CopperLine,” and the “CopperLine Logo” are registered trademarks of Communication Networks. INS_CLFE(X)EO(C,U)_REV– 10/27/11 PAGE 12...
