INSTALLATION AND OPERATION MANUAL

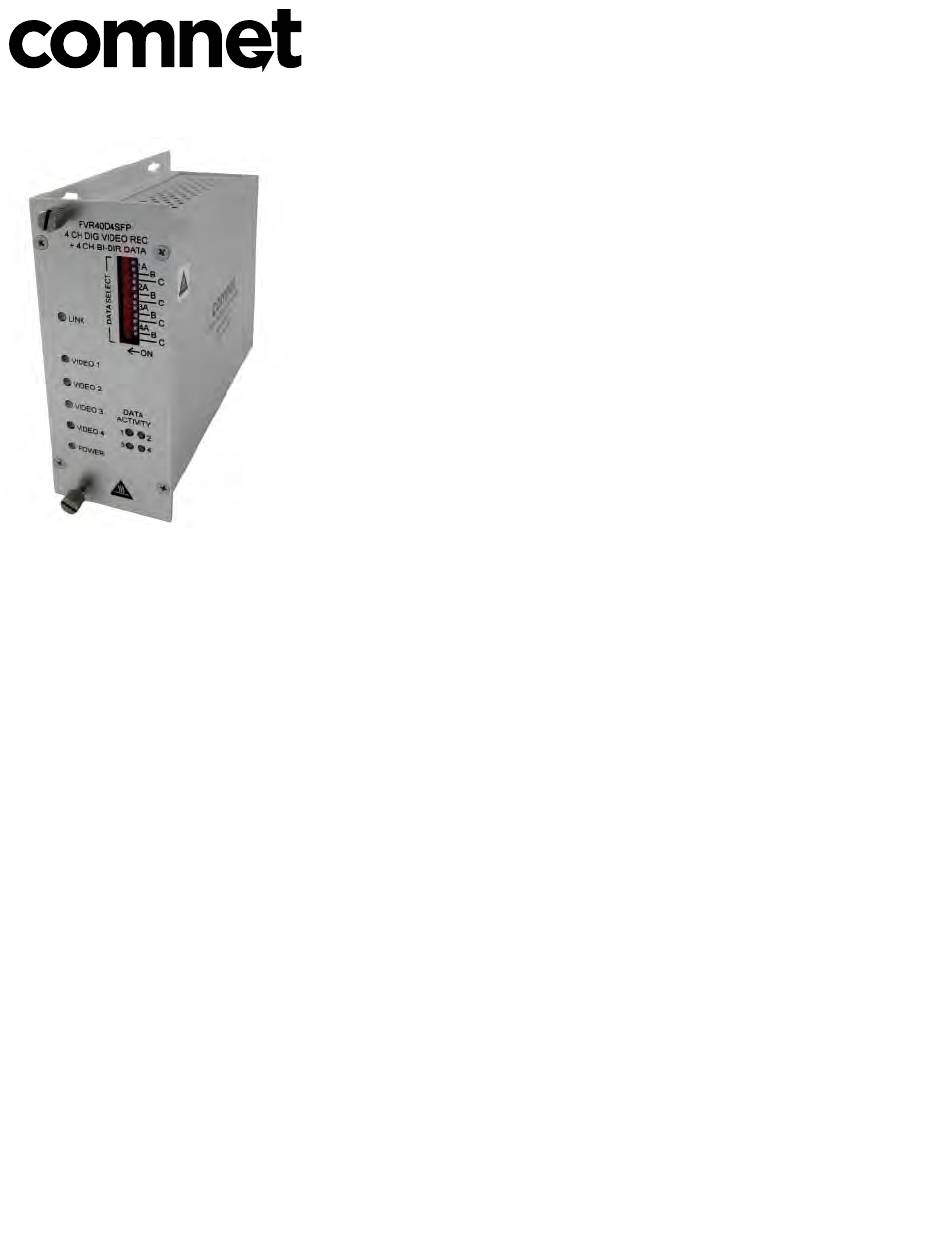

FVT/FVR40D4SFP
4-CHANNEL 10-BIT DIGITAL VIDEO WITH
4 BI-DIRECTIONAL DATA CHANNELS WITH
SMALL FORM-FACTOR PLUGGABLE OPTICAL DEVICES
The FVT/FVR40D4SFP series optical video link provides transmission of four
10-bit medium-haul quality digital video channels and four bi-directional data
channels through a selectable small form factor pluggable module (SFP).
Figure 4 on Page 3 illustrates the data electrical connections from the RJ45 Data
connectors and also the connection cable and "breakout box" connections.
Figure 5 on Page 4 illustrates the specific data connections for RS232, 2-Wire
RS485 and RS422/4-Wire RS485. (This last data connection also applies to
Manchester & Bi-Phase data transmission.)
Each data channel is configured for the electrical interface by means of the
"DATA SELECT" switch on the front panel. Figure 6 on Page 4 illustrates the
switch settings to set the type of data for each channel.
Figure 7 on Page 5 illustrates the electrical connections between the
"Customer Equipment" and the FVT40D4SFP and FVR40D4.SFP.
Bi-color (Red/Green) LED indicators are provided for confirming operating
status. See Figure 8 on Page 5 for LED indication explanations.
These units are interchangeable between stand-alone or card mount
configurations. See Figure A on Page 6 for mounting instructions.
INS_FVT/FVR40D4SFP_REV–
03/31/10
PAGE 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the FVT40D4SFP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Comnet FVT40D4SFP

  • Page 1 Figure 7 on Page 5 illustrates the electrical connections between the “Customer Equipment” and the FVT40D4SFP and FVR40D4.SFP. Bi-color (Red/Green) LED indicators are provided for confirming operating status. See Figure 8 on Page 5 for LED indication explanations.
  • Page 2 FVT/FVR40D4SFP FIGURE 1 – FVT/FVR40D4SFP TRANSMITTER AND RECEIVER OPTICAL FIBER DETERMINED BY SELECTION OF SFP MODULE BLACK BLACK WITH WHITE STRIPE FIGURE 2 – FVT40D4SFP TRANSMITTER FIGURE 3 – FVR40D4SFP RECEIVER FRONT PANEL REAR PANEL FRONT PANEL REAR PANEL NOTE: Remove Electrical Connector for Rack Mount Units INS_FVT/FVR40D4SFP_REV–...
  • Page 3 INSTALLATION AND OPERATION MANUAL FVT/FVR40D4SFP FIGURE 4 – RJ45 BREAK-OUT 5 pc. Factory Supplied INS_FVT/FVR40D4SFP_REV– 03/31/10 TECH SUPPORT: 1.888.678.9427 PAGE 3...
  • Page 4 INSTALLATION AND OPERATION MANUAL FVT/FVR40D4SFP FIGURE 5 – RJ45 SWITCH SETTINGS RS232 RS485 (2W) RS422, RS485 NC = No Connection 1 NC & SENSORNET (4W), Manchester 2 Out (-) 1 NC & Bi-Phase 3 Ground 2 NC 1 OUT (+) 4 NC 3 IN (+) 2 OUT (-)
  • Page 5 INSTALLATION AND OPERATION MANUAL FVT/FVR40D4SFP FIGURE 7 – DATA CONNECTIONS See Page 4 for Switch Settings Customer Customer FVT40D4SFP Equipment Equipment FVR40D4SFP Data Transmit DIN(-) DOUT(-) Data Receive RS232 Data Receive DOUT(-) Data Transmit DIN(-) Signal Ground Signal Ground Data Out (+)
  • Page 6: Installation Considerations

    8 TURNBERRY PARK ROAD | GILDERSOME | MORLEY | LEEDS, UK LS27 7LE T: +44 (0)113 307 6400 | F: +44 (0)113 253 7462 | INFO-EUROPE@COMNET.NET INS_FVT/FVR40D4SFP_REV– 03/31/10 © 2010 Communications Networks Corporation. All Rights Reserved. “ComNet” and the “ComNet Logo” are registered trademarks of Communication Networks, LLC. PAGE 6...
