INSTALLATION AND OPERATION MANUAL
CLFE(X)UTP
EThERNET-oVER-UTP/TwISTEd PAIR EXTENdER
wITh PASS-ThRoUGh PoE
The ComNet

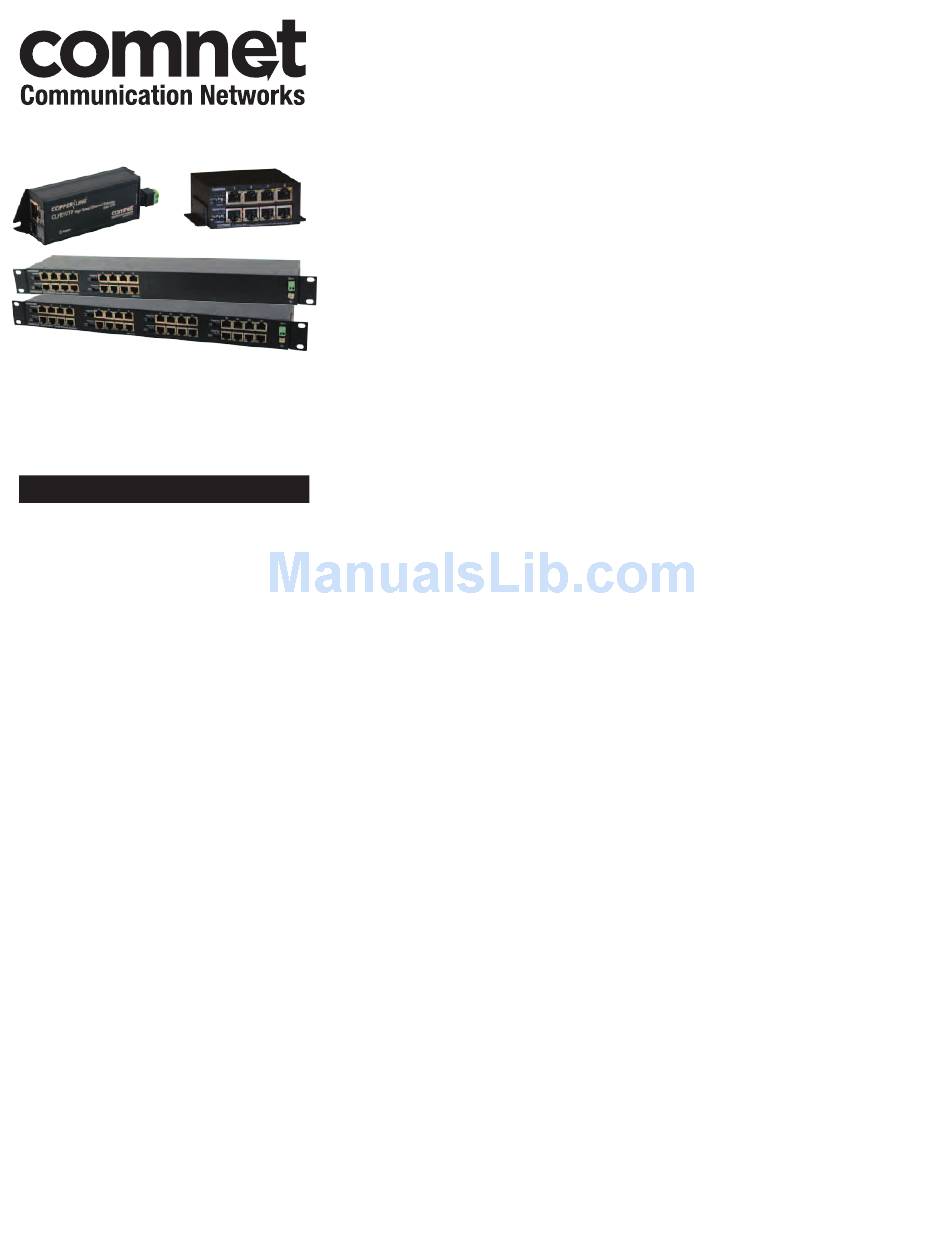

CopperLine® CLFE(X)UTP Ethernet over UTP line consists of four
™
models that support 100Mbps Ethernet as well as Pass-through Power over Ethernet
(PoE) over twisted pair cable (CAT5, UTP). These models support transmission
distances of up to 3,000 feet (914m) at 10 Mbps, or 2,100 feet (640m) at 100 Mbps.
The CLFE1UTP, the CLFE4UTP, CLFE8UTP and the CLFE16UTP transport, one, four,
eight or sixteen channels respectively. The IEEE 802.3-compliant Ethernet electrical
interface of these Ethernet extenders also meets the requirements for IEEE 802.3af
PoE power, passing-through up to 30 watts of power per port to the powered device
(Pd). The CLFE(X)UTP series may also be used interchangeably with other CopperLine
Ethernet-over-UTP extenders.
Environmentally hardened to the requirements of NEMA TS-1/ TS-2 for most out-of-
plant applications, and true plug-and-play design ensures ease of installation and
operation.
LEd indicators are provided for rapidly ascertaining the operating status of the
device. See Figures 6 – 8 on Page 7 for LEd explanations.
Packaged in a rugged aluminum housing, these units are designed for desktop or stand-
alone mounting. The CLFE8UTP and CLFE16UTP are offered in EIA 19" 1U high rack for
easy installation. See Figures A through C on Page 8 for mounting instructions.
See Figures 1 – 8 for complete installation details.
INS_CLFEXUTP_REV–
09/28/11
PAGE 1
Advertisement
Related Manuals for Comnet CLFE1UTP
Summary of Contents for Comnet CLFE1UTP
- Page 1 3,000 feet (914m) at 10 Mbps, or 2,100 feet (640m) at 100 Mbps. Follow all instructions The CLFE1UTP, the CLFE4UTP, CLFE8UTP and the CLFE16UTP transport, one, four, do not use this apparatus near water eight or sixteen channels respectively. The IEEE 802.3-compliant Ethernet electrical Clean only with a dry cloth Install in accordance with the manufacturer’s...
-
Page 2: Power Supply Connection
INSTALLATION AND OPERATION MANUAL CLFE(X)UTP FIGURE 1 – CLFE1UTP CAT5/6 CAT5/6 – PoWER SUPPLy CoNNECTIoN via external power adaptor Optional, if there is no power supply connected to the unit it will try to detect PoE. FIGURE 2 – CLFE1UTP... - Page 3 The CLFE1UTP can be powered by a local power source (12 Volts D.C. or 24 Volts A.C.) or from a single PSE source, such as a network switch’s PoE port using its unique Pass-through PoE feature (4-pair mode only).
- Page 4 INSTALLATION AND OPERATION MANUAL CLFE(X)UTP FIGURE 4 – CLFE8UTP 12V Power Supply CAT5/6 or UTP CAT5/6 or UTP CAT5/6 CAT5/6 Ground Screw* * WARNING: A ground connection is required for the surge protection to work. Failure to ground properly voids the warranty and may cause damage.
- Page 5 INSTALLATION AND OPERATION MANUAL CLFE(X)UTP FIGURE 6 – PossIBLE EThERNET CoNFIGURaTIoNs Multiple Configurations are possible. Consult ComNet Design Center. Single Port CopperLine over UTP ≤3,000ft ≤328ft (914m) Cat-5 (100m) Cat-5 PoE Switch CLFE1UTP CLFE1UTP PoE Camera CNGE2FE24MSPoE Multi Port CopperLine over UTP ≤3,000ft...
- Page 6 For systems not utilizing PoE, connect the 12V Power Supply channel to match the camera end. to the power connector of the CLFE1UTP. A power adapter Note: Multichannel units are preset to connector is provided to simplify connection.
- Page 7 INSTALLATION AND OPERATION MANUAL CLFE(X)UTP FIGURE 7 – PowER LED INDICaToRs POWER Power is on Power is off FIGURE 7 – EXTENDED LED INDICaToRs TRAFFIC (Extended) 10/100BaseT GREEN – Connection is oK, 10BaseT mode YELLOW Flashing, Traffic present – – Connection is oK, 100BaseT mode No traffic...
- Page 8 MEChANICAL INSTALLATION INSTRUCTIONS CLFE(X)UTP INSTALLATION CONSIDERATIONS The CLFE1UTP and CLFE4UTPare supplied as Standalone modules. The CLFE8UTP and CLFE16UTP can be installed as Standalone modules or can be rack-mounted with the addition of the provided 19-Inch Rack-Mounting Ear Brackets. FIGURE a Dimensions are for the CLFE1UTP standalone ComNet module 1.15"...
