Comnet FVT1031 Installation And Operation Manual

INSTALLATION AND OPERATION MANUAL
FVT/FVR1031(M)(S)1
10-BIT DIGITAL VIDEO WITH BI-DIRECTIONAL DATA
(RS232, 422 AND RS485 2 & 4 WIRE)
PELCO AND PANASONIC "UP-THE-COAX"

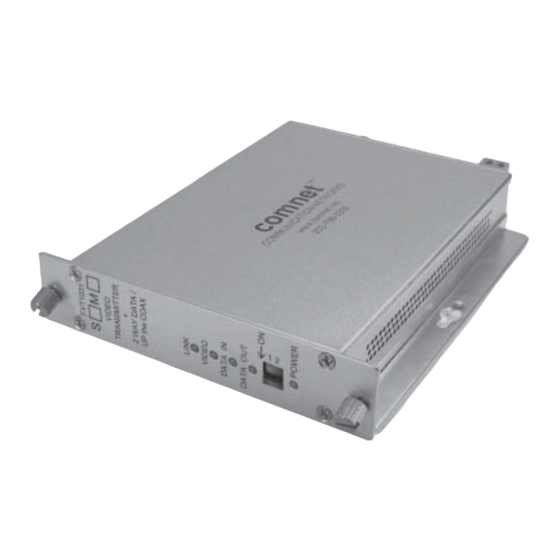

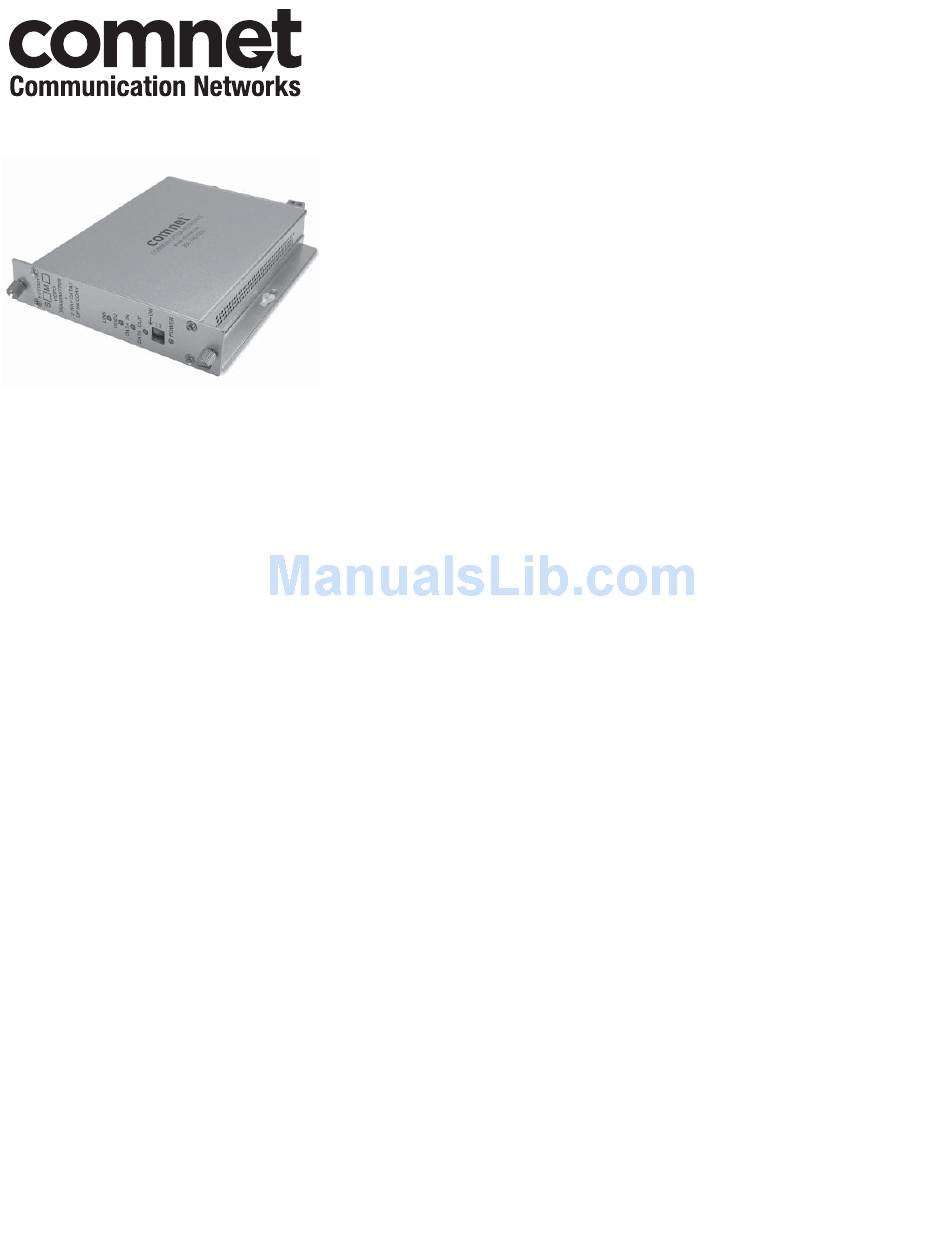

The FVT/FVR1031 transmits 10 bit digital video and full duplex data over one
Singlemode or Multimode fiber. The video supports NTSC, PAL and SECAM
CCTV camera systems. The data supports RS232, RS422 and RS485 (2W & 4W)
at data rates up to 115 Kbps (NRZ). The FVT/FVR1031 series also supports
"UP-THE-COAX" control signals for Pelco and Panasonic cameras with a
maximum distance of 1500 feet (590 meters). The product is "Plug-and-Play"
with no electrical or optical adjustments.
The FVT/FVR1031 allows the user to choose bi-directional data or up-the-coax
data through a switch on the unit, as described in Figure 6 on Page 3.
Bi-color (Red/Green) LED indicators are provided for rapidly ascertaining
equipment operating status. Figure 4 on Page 3 describes the LED indicators
for each light on the unit.
These units are interchangeable between stand-alone or card mount
configurations, or used with a DIN-rail adapter. See Figure A on Page 4 for
installation instructions.
See Figures 1 – 7 for complete installation details.
