INSTALLATION AND OPERATION MANUAL

FVT1031(M)(S)-P

10-BIT DIGITAL VIDEO WITH BI-DIRECTIONAL DATA

TRANSMITTER FOR PELCO DOME CAMERAS

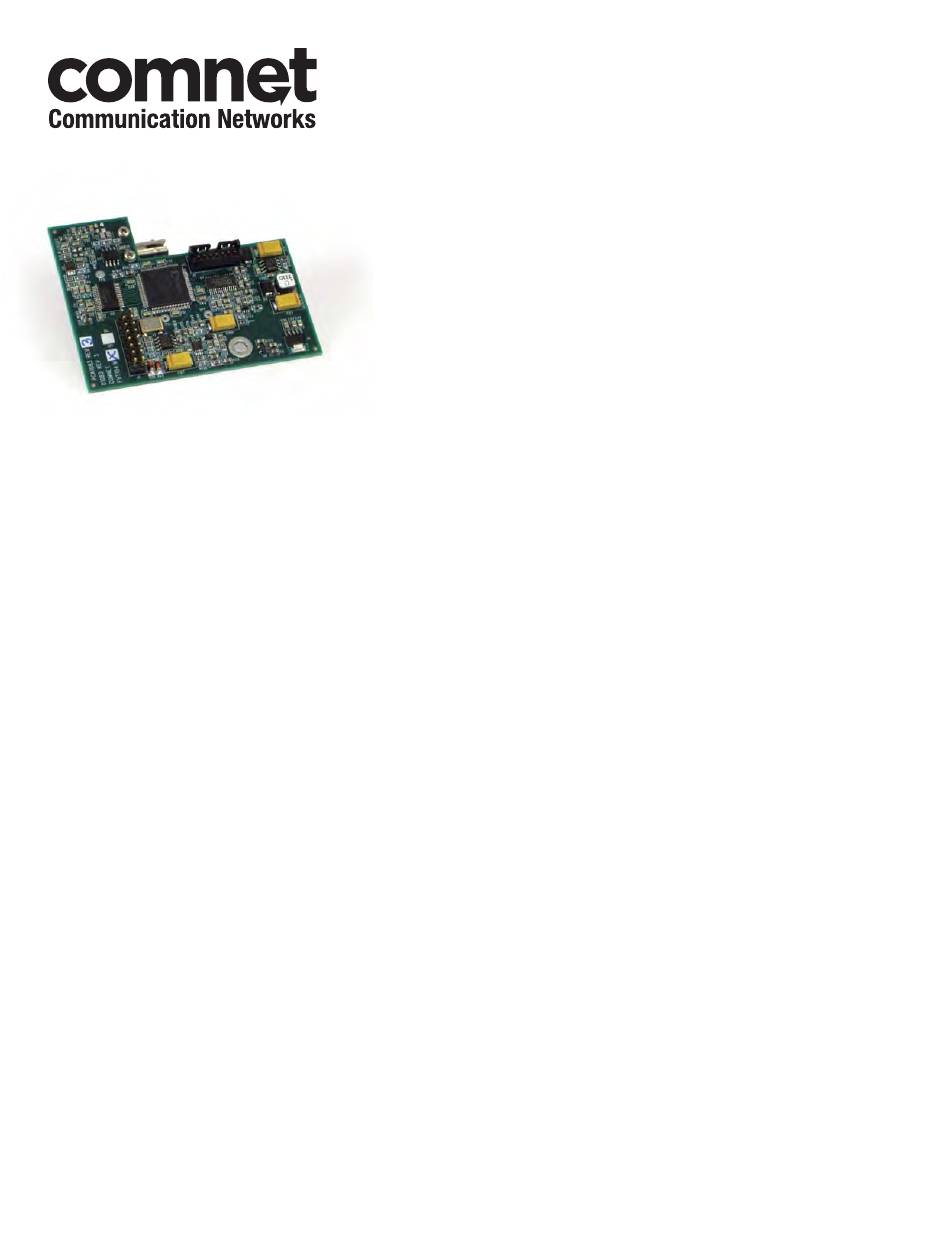

The FVT1031(M)(S)-P series video transmitter along with the ComNet
™
FVR1031 series receiver supports simultaneous broadcast-quality video
transmission of 10-bit digital video and bi-directional RS422 data over one
multimode or single mode optical fiber. The FVT1031(M)(S)-P is designed to
plug directly into the Pelco Spectra III/IV dome, and connects with power, video
input and two way data via the Pelco electrical connector.
See Figures 1 – 4 for complete installation details.
INS_FVT1301-P_REV–
02/05/10
PAGE 1
