INSTALLATION AND OPERATION MANUAL
FVT/FVR10D1E(M,S)[M]
10-BIT DIGITALLY ENCODED VIDEO TRANSMITTER
WITH 1 BI-DIRECTIONAL DATA CHANNEL
AND 10/100MB ETHERNET

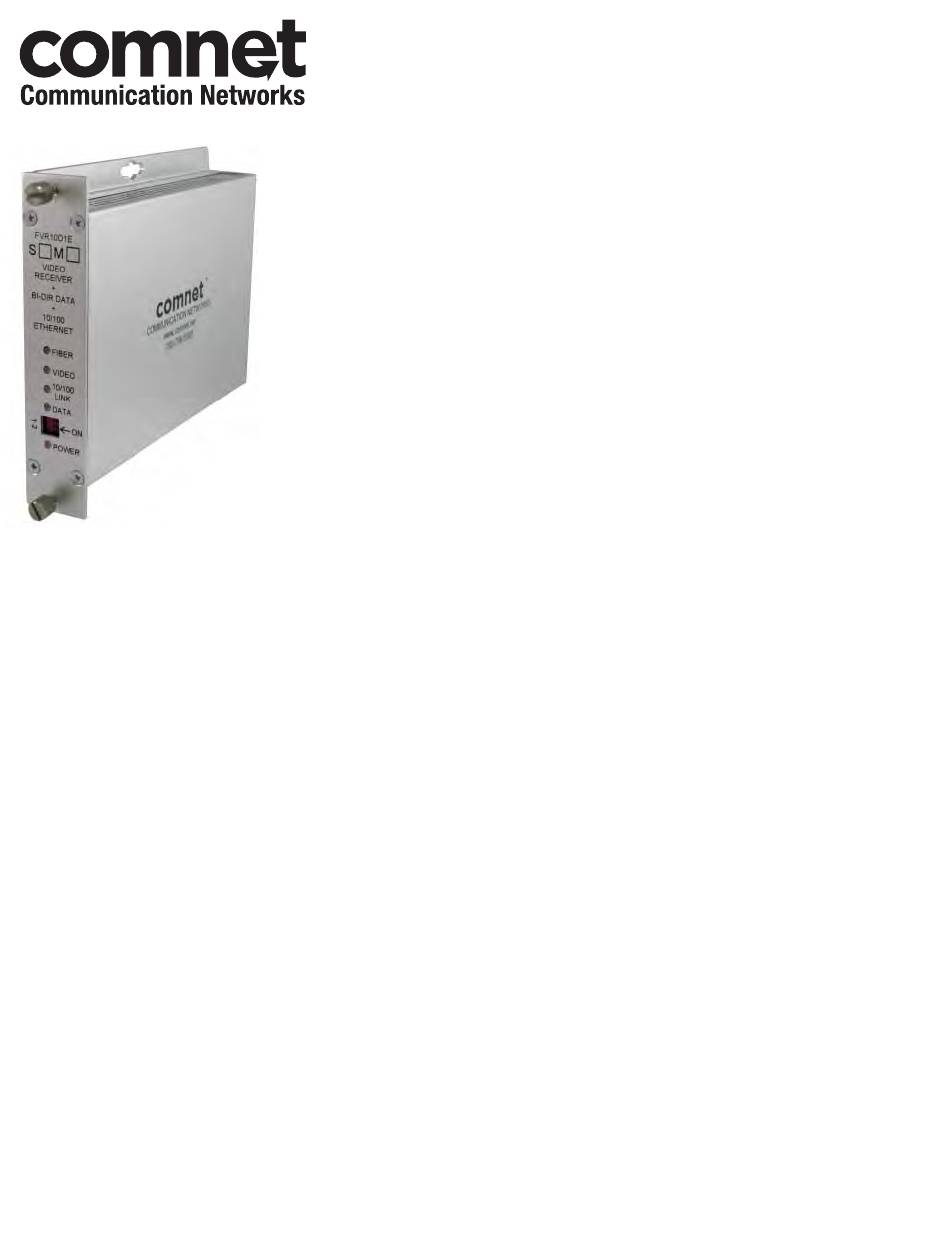

The FVT/FVR10D1E is a single (1) channel ten (10) bit video transmission
system along with one channel of bi-directional data and one full duplex
10/100 Mbps Fast Ethernet port.
The data channel is configured using a two position switch to operate as RS232,
RS422 or RS485, either two (2) wire or four (4) wire. See Figure 7 for details.
The video channel also supports "up-the-coax" reverse data that is enabled
automatically.
The Ethernet uses a RJ45 data connector. The data input/output also uses
an RJ45 data connector and a "breakout box" to facilitate attachment of the
external wires. The breakout box and connecting cable are supplied with the
FVT/FVR10D1E module.
The FVT/FVR10D1E may be directly plugged into the ComNet Rack (Part #C1)
or operated as a standalone module powered by the PS-9VDC power supply
also provided with the module.
The FVT/FVR10D1E requires one optical fiber and may be supplied in a
multimode (M) or singlemode (S) version.
See Figures 1 – 11 for complete installation details.
INS_FVT/FVR10D1E_REV–
12/28/09
PAGE 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the FVR10D1E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Comnet FVR10D1E

  • Page 1 10-BIT DIGITALLY ENCODED VIDEO TRANSMITTER WITH 1 BI-DIRECTIONAL DATA CHANNEL AND 10/100MB ETHERNET The FVT/FVR10D1E is a single (1) channel ten (10) bit video transmission system along with one channel of bi-directional data and one full duplex 10/100 Mbps Fast Ethernet port.
  • Page 2 INSTALLATION AND OPERATION MANUAL FVT/FVR10D1E FIGURE 1 – FVT/FVR10D1E TRANSMITTER AND RECEIVER MULTIMODE OR SINGLE MODE OPTICAL FIBER BLACK BLACK WITH WHITE STRIPE Power Supply: Surface Mount: 8–15 VDC @ 350mA Rack Mount: From Rack FIGURE 2 – FVT10D1E TRANSMITTER FIGURE 3 –...
  • Page 3 INSTALLATION AND OPERATION MANUAL FVT/FVR10D1E FIGURE 4 – FVT10D1EM MINI TRANSMITTER MULTIMODE OR SINGLE MODE OPTICAL FIBER BLACK BLACK WITH WHITE STRIPE Power Supply: Surface Mount: 8–15 VDC @ 350mA FIGURE 5 – FVT10D1E TRANSMITTER FRONT PANEL REAR PANEL LEDs: POWER FIBER VIDEO DATA...
  • Page 4 INSTALLATION AND OPERATION MANUAL FVT/FVR10D1E FIGURE 6 – RJ45 BREAK-OUT Factory Supplied INS_FVT/FVR10D1E_REV– 12/28/09 TECH SUPPORT: 1.888.678.9427 PAGE 4...
  • Page 5 INSTALLATION AND OPERATION MANUAL FVT/FVR10D1E FIGURE 7 – SWITCH POSITIONS The mode for each data channel is configured using a set of two switches on the front panel of the unit. The mode for the data on the FVT10D1E(M,S)M small size unit is set by the receiving unit it is connected to.
  • Page 6 INSTALLATION AND OPERATION MANUAL FVT/FVR10D1E FIGURE 9 – DATA CONNECTIONS See Page 5 for Switch Settings Customer Customer FVT10D1E Equipment Equipment FVR10D1E Data Transmit DIN(-) DOUT(-) Data Receive RS-232* Data Receive DOUT(-) Data Transmit DIN(-) Signal Ground Signal Ground Data Out (+)
  • Page 7 FIGURE 10 – ETHERNET CONFIGURATION Ethernet IEEE 802.3 Network Element determined by user. Optical Fiber Ethernet IEEE 802.3 CAT5E/6 with FVT10D1E FVR10D1E CAT5E/6 with Ethernet IEEE 802.3 Network Element RJ45 Connections RJ45 Connections Network Element FIGURE 11 – LED INDICATORS...
  • Page 8: Installation Considerations

    8 TURNBERRY PARK ROAD | GILDERSOME | MORLEY | LEEDS, UK LS27 7LE T: +44 (0)113 307 6400 | F: +44 (0)113 253 7462 | INFO-EUROPE@COMNET.NET INS_FVT/FVR10D1E_REV– 12/28/09 © 2010 Communications Networks Corporation. All Rights Reserved. “ComNet” and the “ComNet Logo” are registered trademarks of Communication Networks, LLC. PAGE 8...
