INSTALLATION AND OPERATION MANUAL

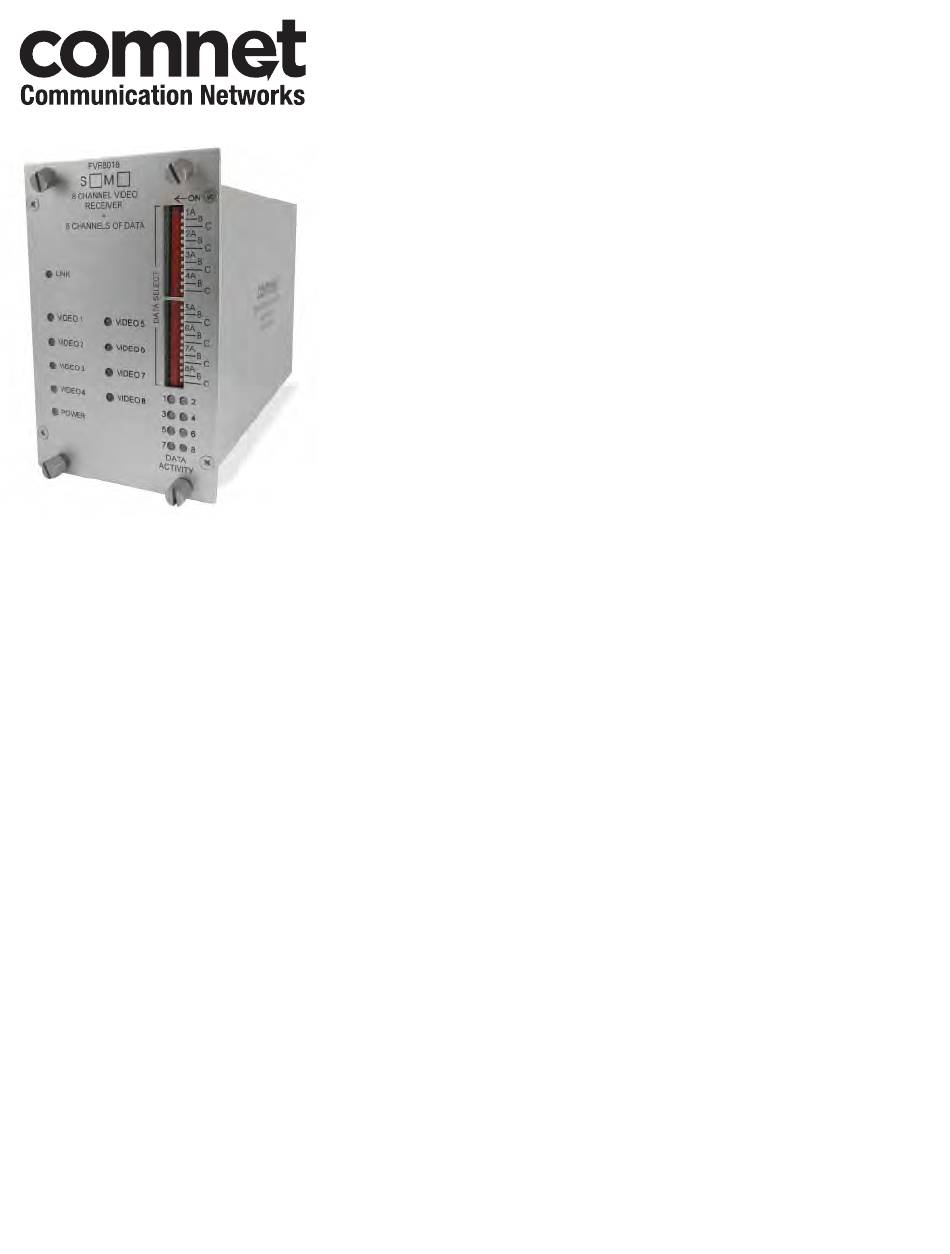

FVT/FVR8018
8-CHANNEL 10-BIT DIGITALLY ENCODED VIDEO
+ 8 BI-DIRECTIONAL DATA CHANNELS
The FVT/FVR8018 is an eight (8) channel ten (10) bit video transmission
system. It combines eight individual video signals into one high speed digital
stream and transmits this over one optical fiber.
The link also transmits eight channels of bi-directional data over the same
fiber. Each data channel can be configured for an electrical interface of RS232,
RS422 or RS485 (2- or 4-Wire).
There is also a RELAY connector on both the Video Transmitter and Video Receiver
modules which indicates that the optical communication link is operating
properly. The Relay is CLOSED when the optical communication is good.
The Data Channels are labeled A, B, C and D. Each data channel is configured
for the electrical interface by means of the "DATA SELECT" switch on the front
panel. Figure 5 on Page 4 illustrates the switch settings to set the type of data
for each channel.
Figure 4 on Page 3 illustrates the data electrical connections from the RJ45 Data
connectors and also the connection cable and "breakout box" connections.
Figure 6 on Page 4 illustrates the specific data connections for RS232, 2-Wire
RS485 and RS422/4-Wire RS485. (This last data connection also applies to
Manchester & Bi-Phase data transmission.)
Figure 7 on Page 5 illustrates the electrical connections between the
"Customer Equipment" and the FVT8018 and FVR8018.
INS_FVT/FVR8018_REVA
05/10/10
PAGE 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the FVT8018 and is the answer not in the manual?

Questions and answers

Summary of Contents for Comnet FVT8018

  • Page 1 Figure 6 on Page 4 illustrates the specific data connections for RS232, 2-Wire RS485 and RS422/4-Wire RS485. (This last data connection also applies to Manchester & Bi-Phase data transmission.) Figure 7 on Page 5 illustrates the electrical connections between the “Customer Equipment” and the FVT8018 and FVR8018. INS_FVT/FVR8018_REVA 05/10/10 PAGE 1...
  • Page 2 FVT/FVR8018 FIGURE 1 – FVT/FVR8018 TRANSMITTER AND RECEIVER MULTIMODE OR SINGLE MODE OPTICAL FIBER BLACK BLACK WITH WHITE STRIPE FIGURE 2 – FVT8018 TRANSMITTER FIGURE 3 – FVR8018 RECEIVER FRONT PANEL REAR PANEL FRONT PANEL REAR PANEL NOTE: Remove Electrical Connector for Rack Mount Units...
  • Page 3 INSTALLATION AND OPERATION MANUAL FVT/FVR8018 FIGURE 4 – RJ45 BREAK-OUT 5 pc. Factory Supplied INS_FVT/FVR8018_REVA 05/10/10 TECH SUPPORT: 1.888.678.9427 PAGE 3...
  • Page 4 INSTALLATION AND OPERATION MANUAL FVT/FVR8018 FIGURE 5 – SWITCH POSITIONS The mode for each data channel is configured using a set of three switches on the front panel of the unit. FIGURE 6 – SWITCH SETTINGS A Ports - Data Channels 1-4 B Ports - Data Channels 5-8 RS232 RS485 (2W)
  • Page 5 INSTALLATION AND OPERATION MANUAL FVT/FVR8018 FIGURE 7 – DATA CONNECTIONS See Page 4 for Switch Settings Customer Customer FVT8018 Equipment Equipment FVR8018 Data Transmit DIN(-) DOUT(-) Data Receive RS232 Data Receive DOUT(-) Data Transmit DIN(-) Signal Ground Signal Ground Data Out (+)
  • Page 6: Installation Considerations

    8 TURNBERRY PARK ROAD | GILDERSOME | MORLEY | LEEDS, UK LS27 7LE T: +44 (0)113 307 6400 | F: +44 (0)113 253 7462 | INFO-EUROPE@COMNET.NET INS_FVT/FVR8018_REVA 05/10/10 © 2010 Communications Networks Corporation. All Rights Reserved. “ComNet” and the “ComNet Logo” are registered trademarks of Communication Networks, LLC. PAGE 6...
