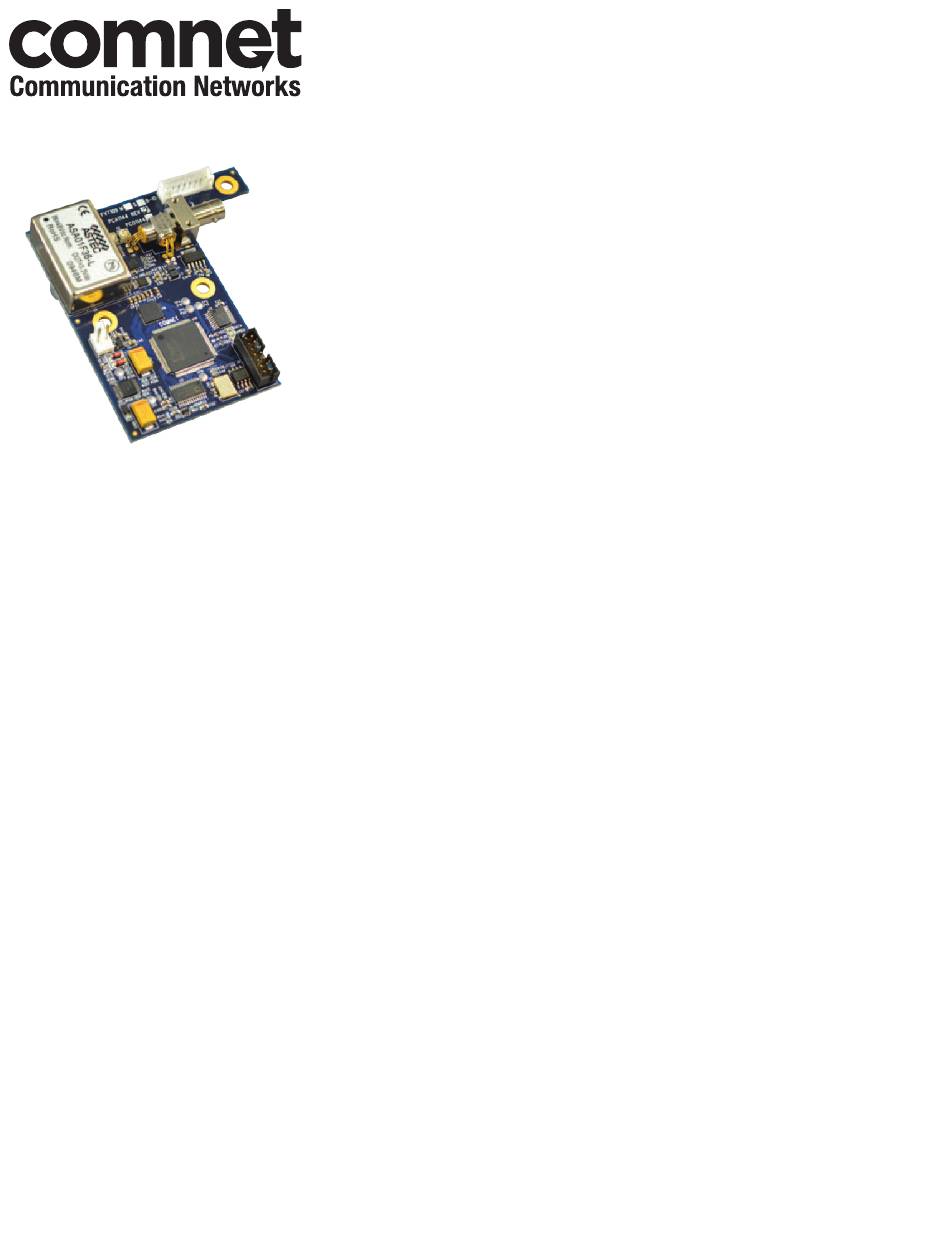

INSTALLATION AND OPERATION MANUAL
FVT110(M,S)1/BO
IN-DOME 10-BIT DIGITAl VIDEO TRANSMITTER wITh
BOSCh BIPhASE AND BIlINX CAMERA CONTROl

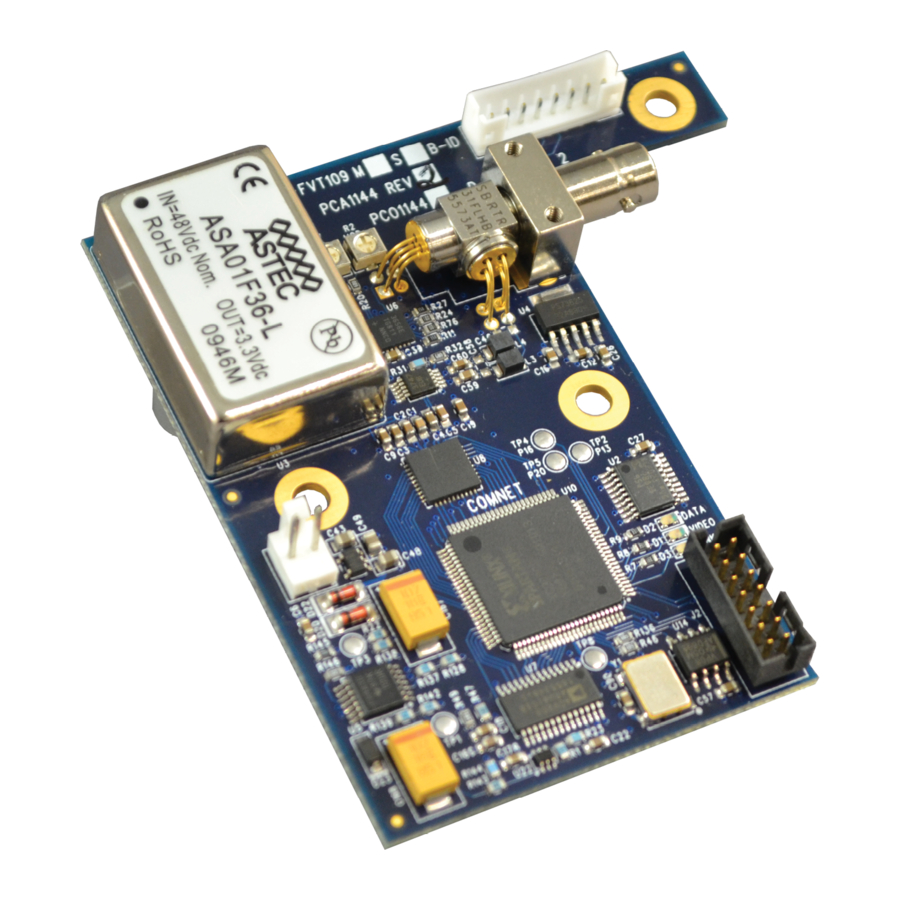

The FVT110/BO is a video transmitter and data transceiver that supports the
simultaneous transmission of short haul quality 10-bit EIA RS250C digital video and
Bosch Biphase and Bilinx camera control signals over one single mode or multimode
optical fiber.
The FVT110/BO in-dome module supports Bosch Bilinx up-the-coax camera control
over its entire specified fiber distance. The series features a unique time-base
correction algorithm that removes the usual distance limitations associated with
up-the-coax control.
Bi-color (Red/Green) lED indicators are provided for rapidly ascertaining equipment
operating status. Figure 2 on Page 3 describes the lED indicators for each light on the
receiver unit.
The FVT110/BO is intended for mounting within the Bosch dome. See Page 2 for
mounting instructions.
INS_FVT110/BO_REV–
2/15/12
PAGE 1
Advertisement
Table of Contents
Related Manuals for Comnet FVT110M1/BO
Summary of Contents for Comnet FVT110M1/BO
- Page 1 INSTALLATION AND OPERATION MANUAL FVT110(M,S)1/BO IN-DOME 10-BIT DIGITAl VIDEO TRANSMITTER wITh BOSCh BIPhASE AND BIlINX CAMERA CONTROl The FVT110/BO is a video transmitter and data transceiver that supports the simultaneous transmission of short haul quality 10-bit EIA RS250C digital video and Bosch Biphase and Bilinx camera control signals over one single mode or multimode optical fiber.
- Page 2 ComNet’s 2-pin to link lED should The stand-offs will snap Bosch’s 5-pin to 8-pin BNC cable, connecting illuminate green once into the gold mounting cable assembly.
- Page 3 CONNECTIONS FOR BOSCH CAMERA FIBER MODULE (continued): EXTERNAL VIDEO RECEIVER MODULE (FVR110): 1. Connect power to module: Use +9 VDC adapter included with module, or insert into ComNet rack. POWER LED should illuminate green. LINK LED should illuminate red. VIDEO LED should illuminate red.
- Page 4 8 TURNBERRy PARK ROAD | GILDERSOME | MORLEy | LEEDS, UK LS27 7LE T: +44 (0)113 307 6400 | F: +44 (0)113 253 7462 | INFO-EUROPE@cOMNET.NET INS_FVT110/BO_REV– 2/15/12 © 2012 Communications Networks Corporation. All Rights Reserved. “ComNet” and the “ComNet logo” are registered trademarks of Communication Networks, llC. PAGE 4...
