Exsys EX-1186HMVS-2 Manual

4-port usb 3.2 gen 1 metal hub with 1.5a power for each usb port and 15kv esd surge protection for din-rail

Hide thumbs Also See for EX-1186HMVS-2:

Manual (16 pages)

Table Of Contents

Available languages

Quick Links

Download this manual

4-Port USB 3.2 Gen 1 Metal HUB with

1.5A power for each USB port and

15KV ESD Surge Protection for DIN-Rail

Manual

EX-1186HMVS-2

HUB USB 3.2 Gen 1 metallico a 4 porte

con alimentazione da 1,5 A per ciascuna

porta USB e protezione da sovratensione

ESD da 15 KV per guida DIN

Vers. 1.2 / 08.02.24

Manuale

Germania:

EXSYSVertriebs GmbH

Industriestraße 8

61449 Steinbach

www.exsys.de

Svizzera:

EXSYSVertriebs GmbH

Dübendorfstrasse17

8602Wangen

www.exsys.ch

Italia

EXSYS TALIA Srl

Vaia Belvedere, 45/B

22100 Como (CO)

www.exsys.it

Table of Contents

Need help?

Do you have a question about the EX-1186HMVS-2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Exsys EX-1186HMVS-2

Page 1 4-Port USB 3.2 Gen 1 Metal HUB with www.exsys.de 1.5A power for each USB port and Svizzera: 15KV ESD Surge Protection for DIN-Rail EXSYSVertriebs GmbH Dübendorfstrasse17 8602Wangen www.exsys.ch Italia EXSYS TALIA Srl Vaia Belvedere, 45/B 22100 Como (CO) www.exsys.it Vers. 1.2 / 08.02.24 Manual Manual...
Page 2 Pulizia Dati Tecnici Disegno Tecnico Index Description Extent of Delivery Layout, Connections & Jumper Settings 11-13 Layout Connections 11-12 Jumper Settings Hardware Installation Driver Installation Cleaning Technical Information Technical Drawing © Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved...
Page 3: Contenuto Confezione
Italiano 1. Descrizione L'EX-1186HMVS-2 è un HUB USB 3.2 Gen 1 in struttura metallica per un massimo di quattro dispositivi. L‘Hub è dotato di 4 porte per periferiche esterne e 1 porta per il collegamento al PC. Supporta tutte le porte USB da 1.1 a 3.2.
Page 4 3.2 Attacchi T-Block da +7V fino a +24V : ATTENZIONE!!! Non collegare mai l'alimentazione (+) a terra GND, questo può distruggere il tuo hardware!!! GND (Ground) +7V - 24V +7 ~24V © Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved...
Page 5 Non inserire mai la spina al contrario né forzarla. USB 3.2 Gen 1 Type-B: GND_DRAIN StdB_SSTX + StdB_SSTX+ StdB_SSTX - Attenzione! StdB_SSTX - Non inserire mai la spina al contrario VBus né forzarla. © Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved...
Page 6 Le possibili impostazioni ed i loro effetti sono mostrati nella tabella seguente. Standard: JP9 = ENA Impostazione Stato Funzione JP8 = ON Jumper JP9 Jumper JP8 Host PC Hub Downstream Alimentazione Bus Power Host control Dati Power HOST HOST DIS/ENA HOST/ON © Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved...
Page 7: Installazione Hardware
1186HMVS-2. Se qualcosa non vi è chiaro, fare riferimento alle istruzioni del manuale per l'uso del proprio computer. 1. Installare EX-1186HMVS-2 a parete o su una guida di montaggio utilizzando il kit guida DIN incluso. Montaggio su guida di montaggio Fori per montaggio a muro 2.
Page 8: Installazione Driver
Nella zona dei collegamenti, assicurarsi che non rimangano fibre del panno nella presa. Non utilizzare in nessun caso un panno umido o bagnato per la pulizia! © Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved...
Page 9: Dati Tecnici
Temperatura conservazione: Dal -20° fino a 85° Celsius Umidità Rel.: Dal 5% fino al 95% Da +7 fino a +24 Volt Alimentazione: Dimensione: 163.00 x 55.00 x 30.80 mm Peso: 498 g 8. Disegno Tecnico © Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved...
Page 10: Extent Of Delivery

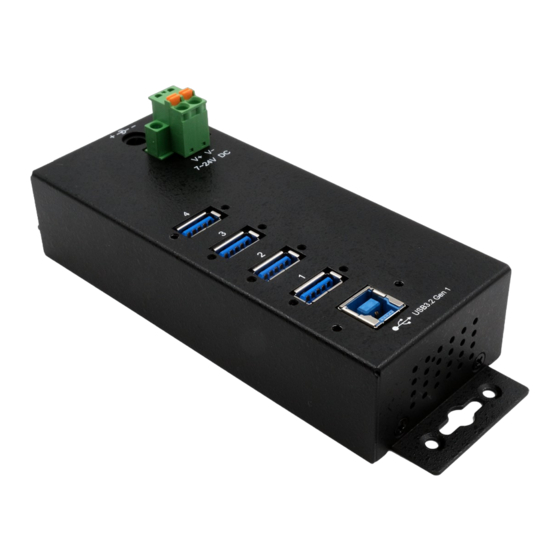

1. Description The EX-1186HMVS-2 is a USB 3.2 Gen 1 metal HUB for up to four end devices. The hub is equipped with 4 ports for end devices and 1 port for connection to PC. It supports all USB ports from 1.1 to 3.2 and each USB port on the EX-1186HMVS-2 is additionally screwable.
Page 11 1x USB 3.2 Gen 1 Downstream A-Port Upstream B-Port optional Power Supply 3.2 Connectors +7V to +24V T-Block: ATTENTION!!! Never connect power to GND, it will destroy your Hardware!!! GND (Ground) +7V - 24V © Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved...
Page 12 Never plug in with force or in wrong direction. USB 3.2 Gen 1 B-Port: GND_DRAIN StdB_SSTX+ StdB_SSTX + StdB_SSTX - StdB_SSTX - Attention! Never plug in with force VBus or in wrong direction. © Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved...
Page 13: Jumper Settings
The possible settings and their effects are shown in the following table. Default: Settings Status Function JP9 = ENA Jumper JP9 Jumper JP8 Netzteil Host PC Hub Downstream JP8 = ON Bus Power Host control Data Power HOST HOST DIS/ENA HOST/ON © Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved...
Page 14: Hardware Installation
Because there are large differences between PC’s, we can give you only a general installation guide for the EX-1186HMVS-2. Please refer your computer’s reference manual whenever in doubt. 1. Install the EX-1186HMVS-2 to the wall or to a DIN-Rail if required.
Page 15: Driver Installation
For cleaning please use only a dry fluff less cloth and remove the dirt with gently pressure. In the area of the connectors please make sure that no fibres from the cloth remain in the connectors. Attention! Never use a moist or wet cloth for cleaning! © Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved...
Page 16: Technical Information
32° to 131° Fahrenheit Storage Temperature: -40° to 185° Fahrenheit Rel. Humidity: 5% to 95% Power: +7 to +24 Volt Size: 163.00 x 55.00 x 30.80 mm Weight: 498g 8. Technical Drawing © Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved...
