Summary of Contents for ADJ MOD STQ

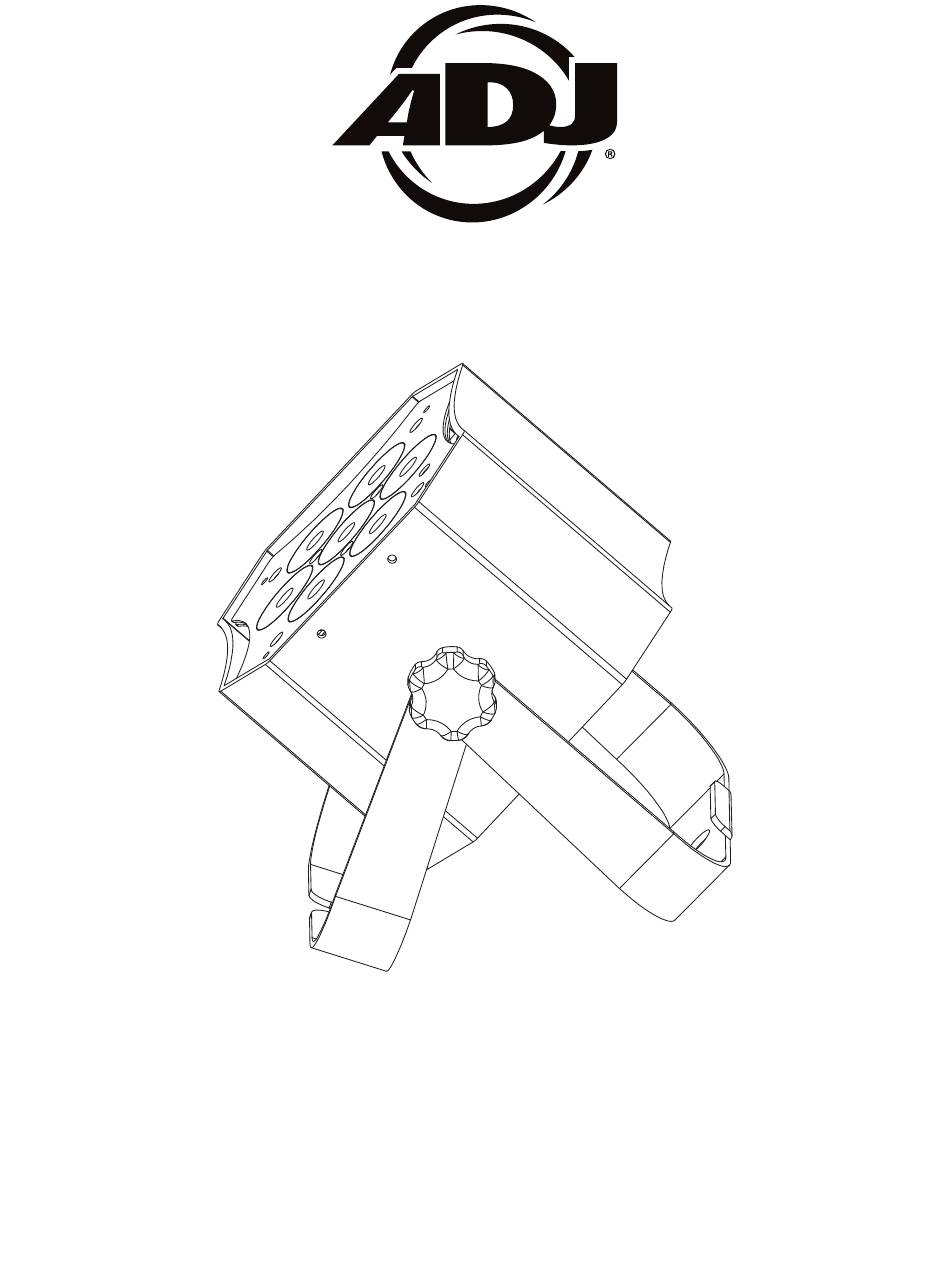

- Page 1 MOD STQ User Instructions...
- Page 2 All non-ADJ Products, LLC brands and product names are trademarks or registered trademarks of their respective companies. ADJ Products, LLC and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...
-
Page 3: Table Of Contents
UC IR & Airstream Remote Control Dimmer Curve Chart Dimensional Drawings I Frost Filter Install Power Linking I Trouble Shooting I Cleaning Limited Warranty (USA Only) Technical Specifications ADJ Products, LLC - www.adj.com - MOD STQ User Manual Page 2... -
Page 4: Introduction
Do not return this unit to your dealer without first contacting customer support. Introduction: The ADJ MOD STQ is a DMX intelligent, high powered LED par fixture. This fixture can be used in a stand alone set up or connected in a Master/Slave set up. To optimize the performance of this product, please read these operating instructions carefully to familiarize yourself with the basic operations of this unit. -
Page 5: Features I Warranty Registration
MOD STQ Warranty Registration The MOD STQ carries a 2 year limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items whether under warranty or not, must be freight pre-paid and accompany a return authorization (R.A.) number. The R.A. number must be clearly written on the out- side of the return package. -
Page 6: Safety Guidelines
B. Objects have fallen, or liquid has been spilled into the fixture. C. The fixture does not appear to operate normally or exhibits a marked change in performance. D. The fixture has fallen and/or subjected to extreme handling. ADJ Products, LLC - www.adj.com - MOD STQ User Manual Page 5... -
Page 7: Overview
LOCKING 3-PIN & 5-PIN LOCKING POWER XLR CONNECTORS IN CONNECTOR IN LOCKING 3-PIN & 5-PIN LOCKING POWER XLR CONNECTORS OUT CONNECTOR OUT POWER OUT DMX OUT DMX OUT ADJ Products, LLC - www.adj.com - MOD STQ User Manual Page 6... -
Page 8: Installation
The MOD STQ is fully operational in three different mounting positions, hanging upside-down from a ceiling or trussing, sideways on trussing, or set on a flat level surface. Be sure this fixture is kept at least 12m (40ft) away from any flammable materials (decoration etc.). -
Page 9: Dmx Set Up
INPUT INPUT of the MOD STQ. Your unit and your DMX controller require a standard 3-pin XLR connector for data input and data output (Figure 1). We recommend Accu-Cable DMX cables. If you are making your own cables, be sure to use standard 110-120 Ohm shielded cable (This cable may be purchased at almost all pro lighting stores). - Page 10 Pin 1 Data Compliment (- signal) Pin 2 Pin 2 Data True (+ signal) Pin 3 Pin 3 Not Used Do Not Use Not Used Do Not Use ADJ Products, LLC - www.adj.com - MOD STQ User Manual Page 9...
-
Page 11: Dmx Addressing
In the case of the MOD STQ, when in 4 Channel you should set the starting DMX address of the first unit to 1, the second unit to 5 (4 + 1), the third unit to 9 (5 + 4), and so on. (See chart below for more details.) -
Page 12: Dmx Modes & Values
Auto Program 13 141-150 Auto Program 14 151-160 Auto Program 15 161-170 Auto Program 16 171-255 No Function AUTO PROGRAM SPEED 000-255 Slow-Fast AUTO PROGRAM FADE 000-255 Less-More or Slow-Fast ADJ Products, LLC - www.adj.com - MOD STQ User Manual Page 11... - Page 13 4000Hz 151-165 5000Hz 166-180 10000Hz 181-195 15000Hz 196-210 20000Hz 211-225 25000Hz 226-255 No Function GAMMA 000-020 Default to Unit Setting 021-040 041-060 061-080 081-100 101-120 121-255 No Function ADJ Products, LLC - www.adj.com - MOD STQ User Manual Page 12...
-
Page 14: Color Macro Chart
89-92 Color56 Color24 93-96 Color57 Color25 97-100 Color58 Color26 101-104 Color59 Color27 105-108 Color60 Color28 109-112 Color61 Color29 113-116 Color62 Color30 117-120 Color63 Color31 121-124 Color64 Color32 125-128 ADJ Products, LLC - www.adj.com - MOD STQ User Manual Page 13... - Page 15 Color51 201-204 Color52 205-208 Color53 209-212 Color54 213-216 Color55 217-220 Color56 221-224 Color57 225-228 Color58 229-232 Color59 233-236 Color60 237-240 Color61 241-244 Color62 245-248 Color63 249-252 Color64 253-255 ADJ Products, LLC - www.adj.com - MOD STQ User Manual Page 14...
-
Page 16: System Menu
DOWN buttons to adjust the field. Pressing the ENTER button once more will confirm your setting. You may exit the main menu at any time without making any adjustments by pressing the MODE button. MODE DOWN SET UP ADJ Products, LLC - www.adj.com - MOD STQ User Manual Page 15... - Page 17 Current Power On Time PwronHr2: XXXXXXXH (Resettable) PwronRst: Pass Code = 050 Reset Current Power On Time INFORMAT TMP: XXX F / XXX C Current Temperature INFORMAT: VX.XX Current Software Version ADJ Products, LLC - www.adj.com - MOD STQ User Manual Page 16...
- Page 18 INTPROGS (INTERNAL PROGRAMS) - This menu allows you to select 1 of 16 (0-16) internal programs to run. The internal program speed and fade speeds are adjustable. The internal programs can also be run as sound active. ADJ Products, LLC - www.adj.com - MOD STQ User Manual Page 17...
-
Page 19: Master-Slave Set Up
“Slave” Unit(s): Activate the “Slave” setting located in the “PERSNLTY” menu. 4. Set the “Master” unit to your desired mode of operation. 5. The slave unit(s) will now follow the master unit. ADJ Products, LLC - www.adj.com - MOD STQ User Manual Page 18... -
Page 20: Uc Ir & Airstream Remote Control
NOTE: Sound sensitivity is not adjustable using the IR control functions. SHOW 0 - Press this button to select show “0” or color “0” when either internal program mode or color macro mode is active. ADJ Products, LLC - www.adj.com - MOD STQ User Manual Page 19... -
Page 21: Dimmer Curve Chart
Rise Time (ms) Down Time (ms) Standard (default) Stage 1100 1540 1660 1180 1520 1860 1940 Architectural 1380 1730 2040 2120 Theatre 1580 1940 2230 2280 1100 1660 Stage 2 ADJ Products, LLC - www.adj.com - MOD STQ User Manual Page 20... -
Page 22: Dimensional Drawings I Frost Filter Install
MOD STQ Frost Filter Install The MOD STQ comes with 3 interchangeable frost filters. The degree of the individual filters is stamped into the corner of each filter. To install the frost filter unscrew the four thumb screws holding the lens in place. Remove the lens and install the filter inside the unit. Line up the thumb screw holes on the edges of filter with screw holes of the unit. -
Page 23: Power Linking I Trouble Shooting I Cleaning
3. Always be sure to dry all parts completely before plugging the unit back in. Cleaning frequency depends on the environment in which the fixture operates (i.e. smoke, fog resi- due, dust, dew). ADJ Products, LLC - www.adj.com - MOD STQ User Manual Page 22... -
Page 24: Limited Warranty (Usa Only)
ADJ Products, LLC factory unless prior written authorization was issued to purchaser by ADJ Products, LLC; if the product is damaged because not properly maintained as set forth in the instruction manual. -
Page 25: Technical Specifications
RGBW Color Mixing DMX Channels: 4/5/7/8/9/12/13/15 Warranty: 2 Year (730 days) Please Note: Specifications and improvements in the design of this unit and this manual are subject to change. ADJ Products, LLC - www.adj.com - MOD STQ User Manual Page 24...
