Summary of Contents for ADJ MOD STQ

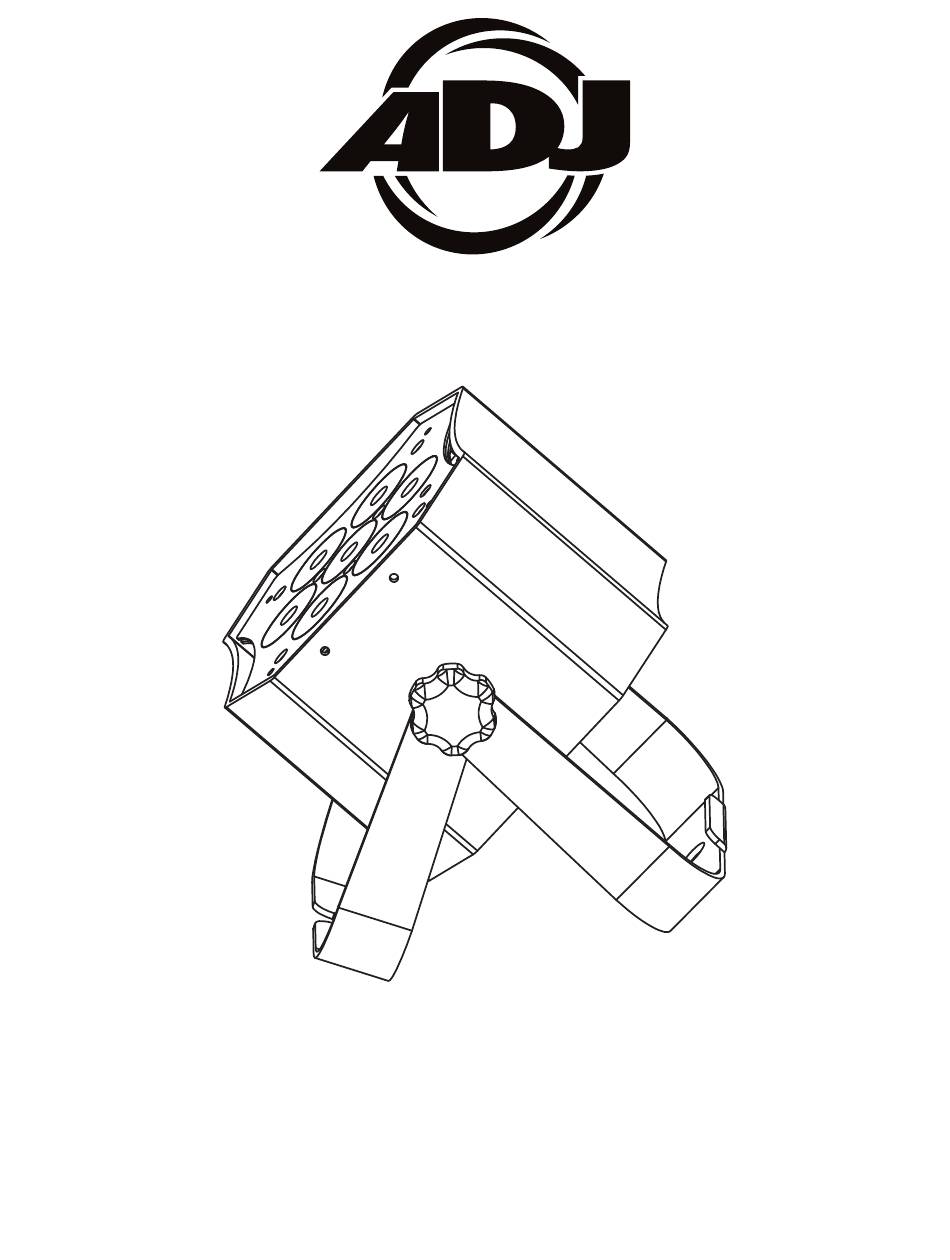

- Page 1 MOD STQ User Instructions...
- Page 2 ©2023 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.
-
Page 3: Table Of Contents
C O N T E N T S General Information Key Features | Warranty Returns Limited Warranty (USA Only) Safety Guidelines Overview UC IR Remote Control Installation Installation: Frost Filters System Menu Primary-Secondary Setup Multiple Unit Power Linking Dimmer Curves and Dimmer Modes DMX Setup DMX Addressing DMX Traits... -
Page 4: General Information
Please do not discard the shipping carton in the trash. Please recycle whenever possible. CUSTOMER SUPPORT Contact ADJ Service for any product related service and support needs. Also visit forums.adj.com with questions, comments or suggestions. -
Page 5: Key Features | Warranty Returns
Locking 3-Pin & 5-Pin XLR Connections In/Out • 8 DMX Channel Modes: 4 / 5 / 7 / 8 / 9 / 12 / 13 / 15 • ADJ UC IR compatible • Multiple Unit Power Linking INCLUDED ITEMS: •... -
Page 6: Limited Warranty (Usa Only)
All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, ADJ Products, LLC will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be shipped in its original package. No accessories should be shipped with the product. -
Page 7: Safety Guidelines
This fixture is a sophisticated piece of electronic equipment. To guarantee smooth operation, it is important to follow all instructions and guidelines in this manual. ADJ Products, LLC is not responsible for injury and/or damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual. - Page 8 S A F E T Y G U I D E L I N E S • Do not attempt to operate this unit if the power cord has been frayed or broken. Do not attempt to remove or break off the ground prong from the electrical cord. This prong is used to reduce the risk of electrical shock and fire in case of an internal short.
-
Page 9: Overview
O V E R V I E W MODE DOWN SET UP POWER IN: Locking 3-Pin & AC100-240V 50/60HZ DMX IN DMX IN 5-Pin XLR Connectors In Locking Power Connectors DMX OUT POWER OUT: DMX OUT AC100-240V 50/60HZ Locking 3-Pin & 5-Pin XLR Connectors Out... -
Page 10: Uc Ir Remote Control
U C I R R E M O T E C O N T R O L The UC IR infrared remote gives you control of various functions (See below). To control the fixture you must aim the remote at the front of the fixture and be no more than 30 feet away. CONTROLS STAND BY - Pressing this button will blackout the fixture. -
Page 11: Installation
I N S TA L L AT I O N CLAMP INSTALLATION When installing the unit, the trussing or area of installation must be able to hold 10 times the weight without any deformation. When installing the unit must be secured with a secondary safety attachment, e.g. - Page 12 I N S TA L L AT I O N The MOD STQ is fully operational in three different mounting positions, hanging upside-down from a ceiling or trussing, sideways on trussing, or set on a flat level surface. Be sure this fixture is kept at least 12m (40ft) away from any flammable materials (decoration etc.).
-
Page 13: Installation: Frost Filters
I N S TA L L AT I O N : F R O S T F I LT E R The MOD STQ comes with 3 interchangeable frost filters. The degree of the individual filters is stamped into the corner of each filter. To install the frost filter, unscrew the four thumb screws holding the lens in place. -
Page 14: System Menu
S Y S T E M M E N U The fixture includes an easy to navigate system menu control panel display where all necessary settings and adjustments are made. (See image below) During normal operation, pressing the MODE button once will access the fixture’s main menu. Once in the main menu, you can navigate through the different functions and access the sub-menus with the UP and DOWN buttons. - Page 15 S Y S T E M M E N U MENU SUBMENU OPTIONS DESCRIPTION ADDR: 001-XXX DMX Addressing DMX MODE CHAN: 4/5/7/8/9/12/13/15 DMX Channel Mode Selection HOLD/BLACK/PROG DMX Lost Status PRIMARY ON/OFF Primary Setting SECONDARY ON/OFF Secondary Setting 1200, 900-1500, 2500, 4000, 5000, 6000, 10000, 15000, 20000, LED Refresh Rate Setting 25000(Hz) PERSON...
- Page 16 S Y S T E M M E N U DMX MODE - The submenus listed under DMX MODE are as follows: ADDR (Address), CHAN (Channel Mode), and NO (No DMX Status). • ADDR - In this submenu you are able to find and set your desired DMX address. • CHAN - In this submenu you are able to find and set your desired DMX channel mode.
-
Page 17: Primary-Secondary Setup Multiple Unit Power Linking
P R I M A R Y- S E C O N D A R Y S E T U P This function will allows the user to link units together to run in a Primary-Secondary set-up. In a Primary-Secondary set up, one unit will act as the controlling unit and the others will react to the controlling units operating mode. -
Page 18: Dimmer Curves And Dimmer Modes
D I M M E R C U R V E S A N D D I M M E R M O D E S DIMMER 100% Time (ms) 0 Sec Rise Time Down Time 0 sec Fade Time 1 sec Fade Time Dimming Curve Ramp Effect... -
Page 19: Dmx Setup
DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that unit, no matter where it is located in the DMX chain. Data Cable (DMX Cable) Requirements (For DMX Operation):The MOD STQ can be controlled via DMX-512 protocol, and features multiple DMX channel modes. - Page 20 2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable terminator (ADJ part number Z-DMX/T) will decrease the chances of erratic behavior. A DMX512 terminator reduces signal errors, avoiding most signal reflection interference.
-
Page 21: Dmx Addressing
In the case of the MOD STQ, when in 4 Channel mode, you should set the starting DMX address of the first unit to 1, the second unit to 5 (4 + 1), the third unit to 9 (5 + 4), and so on. (See chart below for more details.) -
Page 22: Dmx Traits
D M X T R A I T S CHANNEL FUNCTION VALUES 4 CH 5 CH 7 CH 8 CH 9 CH 12 CH 13 CH 15 Ch 000-255 RED 0% - 100% 000-255 GREEN 0% - 100% BLUE 0% - 100% 000-255 WHITE 0% - 100% 000-255... - Page 23 D M X T R A I T S CHANNEL FUNCTION 4 CH 5 CH 7 CH 8 CH 9 CH 12 CH 13 CH 15 Ch VALUES DIMMER MODES 000-020 Standard 021-040 Stage 041-060 061-080 Architectural 081-100 Theatre 101-120 Stage 2 DIMMER DELAY TIME 0.1 Sec.
-
Page 24: Color Macro Chart
C O L O R M A C R O C H A R T RGBW COLOR INTENSITY RGBW COLOR INTENSITY Color DMX Value Color DMX Value RED GREEN BLUE RED GREEN BLUE WHITE Color Macro 33 129-132 Color Macro 1 Color Macro 34 133-136 Color Macro 2 Color Macro 35 137-140... -
Page 25: Cleaning, Maintenance, & Troubleshooting
Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside this fixture. Please refer all other service issues to an authorized ADJ service technician. Should you need any spare parts, please order genuine parts from an authorized ADJ dealer. -
Page 26: Specifications
S P E C I F I C AT I O N S Light Source: • 7x 8-Watt RGBW (4-IN-1 – Red, Green, Blue & White) LEDs • 50,000 Hour Average LED Life Features: • Compact, black gloss metal housing •... - Page 27 D I M E N S I O N S Dimensions not to scale. 7.75” (197mm) 5.5” (140mm) 4.17” (106mm) 7.4” (187.8mm)
