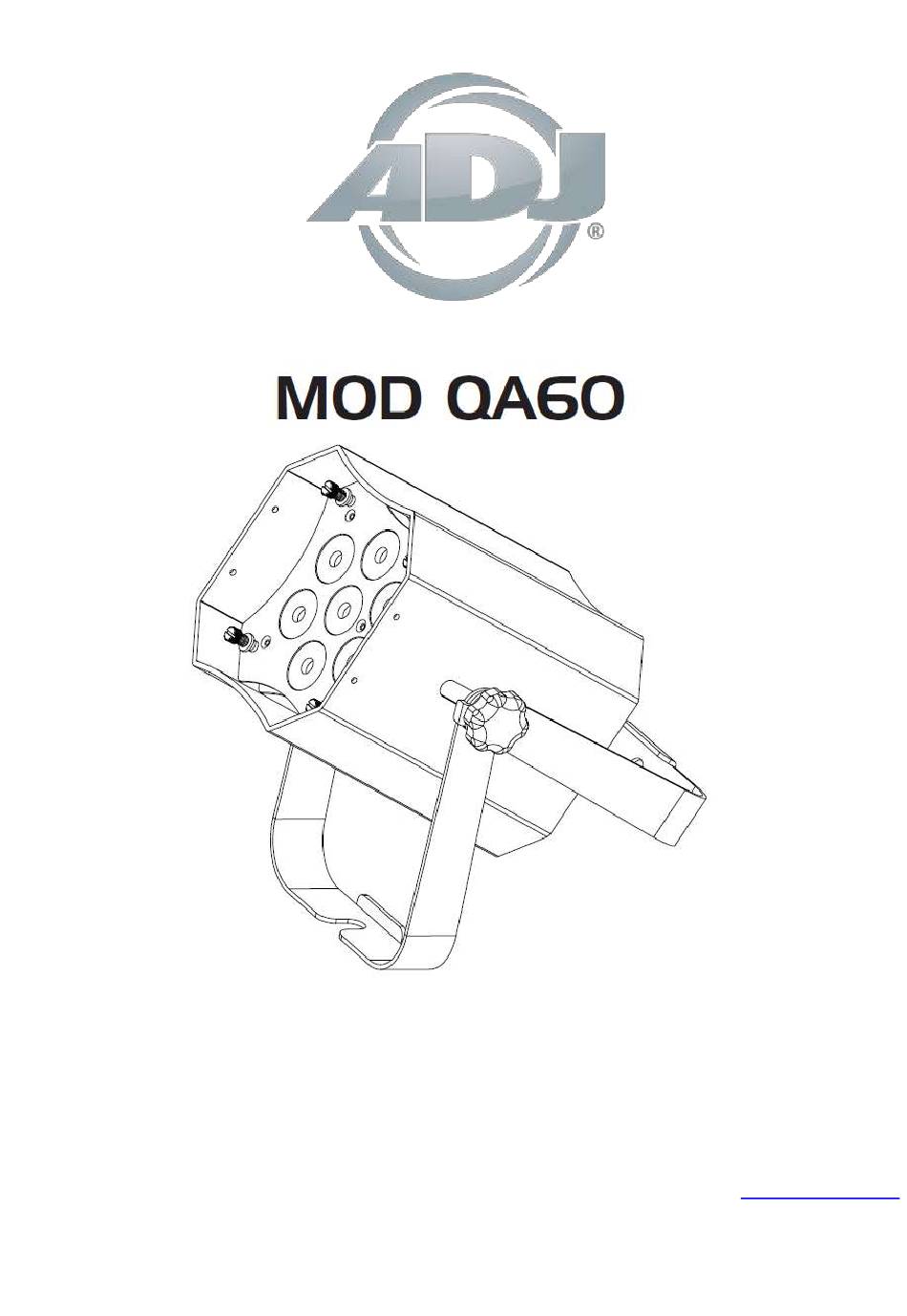

- Page 1 User Instructions A.D.J. Supply Europe B.V. Junostraat 2 6468 EW Kerkrade The Netherlands www.americandj.eu...
- Page 2 ©2018 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.
-
Page 3: Table Of Contents
SPECIFICATIONS ..................................26 ROHS - A great Contribution to the Conservation of Environment ..................27 WEEE – Waste of Electrical and Electronic Equipment ......................27 NOTES ....................................28 A.D.J. Supply Europe B.V. – www.americandj.eu – MOD QA60 Instruction Manual Page 3... -
Page 4: Introduction

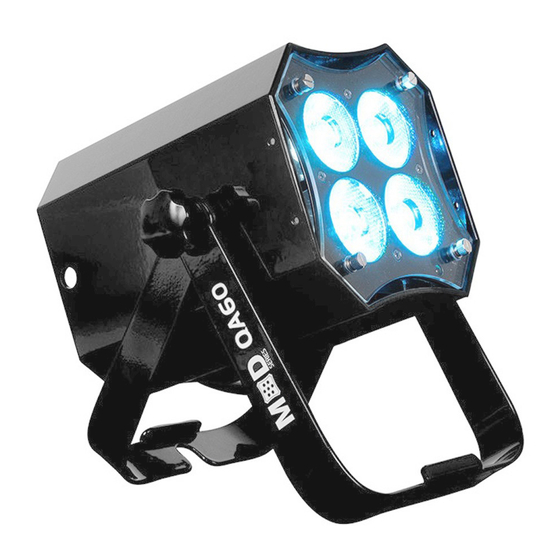

Introduction: The ADJ MOD QA60 is a DMX intelligent, high powered LED par fixture. This fixture can be used in a stand alone set up or connected in a Master/Slave set up. The MOD QA60 has seven operating modes: Sound Active mode, Auto Run mode, Color Change mode, Color Fade mode, RGBA Dimmer mode, Static Color mode, and DMX controlled. -
Page 5: Safety Precautions
C. The fixture has been exposed to rain or water. D. The fixture does not appear to operate normally or exhibits a marked change in performance. E. The fixture has fallen and/or subjected to extreme handling. A.D.J. Supply Europe B.V. – www.americandj.eu – MOD QA60 Instruction Manual Page 5... -
Page 6: Control Panel Layout
CONTROL PANEL LAYOUT LCD DISPLAY UP BUTTON MODE BUTTON DOWN BUTTON SET UP BUTTON DMX IN POWER IN DMX OUT POWER OUT A.D.J. Supply Europe B.V. – www.americandj.eu – MOD QA60 Instruction Manual Page 6... -
Page 7: Dmx Set Up
2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable terminator (ADJ part number Z-DMX/T) will decrease the possibilities of erratic behavior. - Page 8 Pin 1 Data compliment (- signal) Pin 2 Pin 2 Data True (+ signal) Pin 3 Pin 3 Not used Do Not Use Not used Do Not Use A.D.J. Supply Europe B.V. – www.americandj.eu – MOD QA60 Instruction Manual Page 8...
-
Page 9: Dmx Addressing
In the case of the MOD QA60, when in 10 Channel you should set the starting DMX address of the first unit to 1, the second unit to 11 (10 + 1), the third unit to 21 (11 + 10), and so on. (See chart below for more details.) -
Page 10: Channel Mode
PULSE STROBING SLOW - FAST 160 - 191 LED ON 192 - 223 RANDOM STROBING SLOW - FAST 224 - 255 LED ON MASTER DIMMER 0 - 255 0% - 100% A.D.J. Supply Europe B.V. – www.americandj.eu – MOD QA60 Instruction Manual Page 10... -
Page 11: Channel Mode
COLOR CHANGE 12 192 - 207 COLOR CHANGE 13 208 - 223 COLOR CHANGE 14 224 - 239 COLOR CHANGE 15 240 - 255 COLOR CHANGE 16 A.D.J. Supply Europe B.V. – www.americandj.eu – MOD QA60 Instruction Manual Page 11... - Page 12 When Channel 7 is between the values of 205-255, Channel 8 is in Sound Active Mode, and Channel 9 will control the sound sensitivity. A.D.J. Supply Europe B.V. – www.americandj.eu – MOD QA60 Instruction Manual Page 12...
-
Page 13: Channel Mode
COLOR CHANGE 12 192 - 207 COLOR CHANGE 13 208 - 223 COLOR CHANGE 14 224 - 239 COLOR CHANGE 15 240 - 255 COLOR CHANGE 16 A.D.J. Supply Europe B.V. – www.americandj.eu – MOD QA60 Instruction Manual Page 13... - Page 14 When Channel 7 is between the values of 205-255, Channel 8 is in Sound Active Mode, and Channel 9 will control the sound sensitivity. A.D.J. Supply Europe B.V. – www.americandj.eu – MOD QA60 Instruction Manual Page 14...
-
Page 15: Color Macro Chart
73-76 Color20 77-80 Color21 81-84 Color22 85-88 Color23 89-92 Color24 93-96 Color25 97-100 Color26 101-104 Color27 105-108 Color28 109-112 Color29 113-116 Color30 117-120 Color31 121-124 Color32 125-128 A.D.J. Supply Europe B.V. – www.americandj.eu – MOD QA60 Instruction Manual Page 15... - Page 16 201-204 Color52 205-208 Color53 209-212 Color54 213-216 Color55 217-220 Color56 221-224 Color57 225-228 Color58 229-232 Color59 233-236 Color60 237-240 Color61 241-244 Color62 245-248 Color63 249-252 Color64 253-255 A.D.J. Supply Europe B.V. – www.americandj.eu – MOD QA60 Instruction Manual Page 16...
-
Page 17: System Menu
LCD backlight will be off after 20 seconds OPTION IR:ON IR remote function on OPTION IR:OFF IR remote function off OPTION SYSRESET Initialize the unit at the extra factory setting A.D.J. Supply Europe B.V. – www.americandj.eu – MOD QA60 Instruction Manual Page 17... -
Page 18: Operating Instructions
Operating through a DMX controller gives the user the freedom to create their own programs tailored to their own individual needs. The MOD QA60 has 5 DMX modes: 4 channel mode, 5 channel mode, 6 channel mode, 9 channel mode, and 10 channel mode. See pages 10-14 for each mode’s DMX traits. - Page 19 SET UP button to enter the strobe mode. 3. “STROB: XX” will be displayed, this is strobe mode. The strobing can be adjusted between “00” (flash off) to “15” (fastest flash). A.D.J. Supply Europe B.V. – www.americandj.eu – MOD QA60 Instruction Manual Page 19...
- Page 20 This function is used to activate and deactivate the infrared sensor. When this function is activated the unit can be controlled using the ADJ UC IR or Airstream IR app. Please see page 21 for remote controls and functions. 1. Plug the fixture in and press the MODE button until “OPTION” is displayed.
-
Page 21: Master-Slave Configuration
The UC IR infrared remote gives you control of various functions (See below). To control the fixture you must aim the remote at the front of the fixture and be no more than 30 feet away. To use the ADJ UC IR you must first activate the fixtures infrared sensor, to activate the sensor please see the instructions on page 20. -
Page 22: Dimmer Curve Chart
Down Time (ms) Rise Time (ms) Down Time (ms) Standard (default) Stage 1100 1540 1660 1180 1520 1860 1940 Architectural 1380 1730 2040 2120 Theatre 1580 1940 2230 2280 A.D.J. Supply Europe B.V. – www.americandj.eu – MOD QA60 Instruction Manual Page 22... -
Page 23: Dimensional Drawing
DIMENSIONAL DRAWING A.D.J. Supply Europe B.V. – www.americandj.eu – MOD QA60 Instruction Manual Page 23... -
Page 24: Housing Change
HOUSING CHANGE The MOD units housing is interchangeable. You can purchase the white housing kit through ADJ. Changing the housing is very simple process. Follow the instructions below to change the housing. For more help contact ADJ Customer Support. Start by unscrewing and removing Once the knobs and bracket have the bracket knobs. -
Page 25: Frost Filter
FROST FILTER The MOD QA60 comes with 3 interchangeable frost filters. To install the frost filter unscrew the four thumb screws holding lens in place. Remove the lens and install the filter inside the unit. Line up the thumb screw holes on the edges of filter with screw holes of the unit. -
Page 26: Specifications
5 DMX Modes: 4/5/6/9/10 Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. A.D.J. Supply Europe B.V. – www.americandj.eu – MOD QA60 Instruction Manual Page 26... -
Page 27: Rohs - A Great Contribution To The Conservation Of Environment
We are happy to answer any of your inquiries and welcome your suggestions at: info@americandj.eu A.D.J. Supply Europe B.V. – www.americandj.eu – MOD QA60 Instruction Manual Page 27... -
Page 28: Notes
Junostraat 2 6468 EW Kerkrade The Netherlands facebook.com/americandj Tel: +31 45 546 85 00 / Fax: +31 45 546 85 99 twitter.com/americandj Web: www.americandj.eu/ E-mail: support@adj.eu youtube.com/americandj A.D.J. Supply Europe B.V. – www.americandj.eu – MOD QA60 Instruction Manual Page 28...
