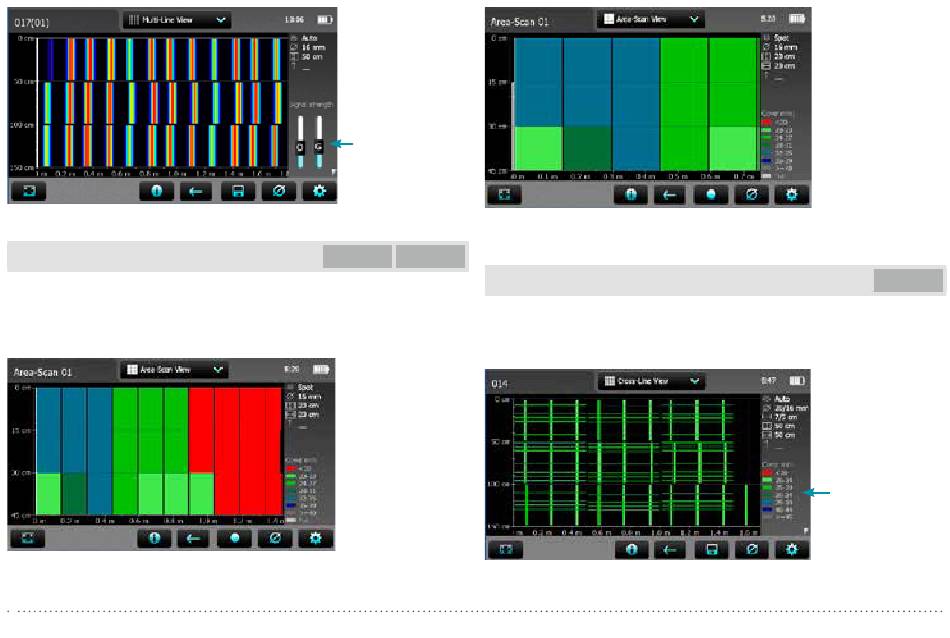

Figure 21: Multi-Line View with Signal Strength color spectrum
Area-Scan View
The Area-Scan View is in fact a simplified Multi-Line View which only
shows the lowest cover values in a predefined grid. It is mainly used in
combination with potential field measurements; e. g. combined with Ca-
nin+ measurements.
Figure 22: Area-Scan View (X- and Y-axis with different scale)
© 2014 Proceq SA
To sharpen the
color spectrum set
"Sharpen"
By changing the
O- and G-slider
positions the color
spectrum can be
changed (see Cross-
Line View).
Tap to switch among
different views.
Figure 23: Area-Scan View (zoomed to show X- and Y-axis in the same
PM-630 PM-650
Cross-Line View
The Cross-Line View can be displayed only if measurements have been
done and stored in the Cross-Line Mode. It is a plan view of the first and
second layer rebars.
scale)
PM-650
Tap to switch among
different views.
