Control & Display Panel - Santak Castle On-Line Series User Manual

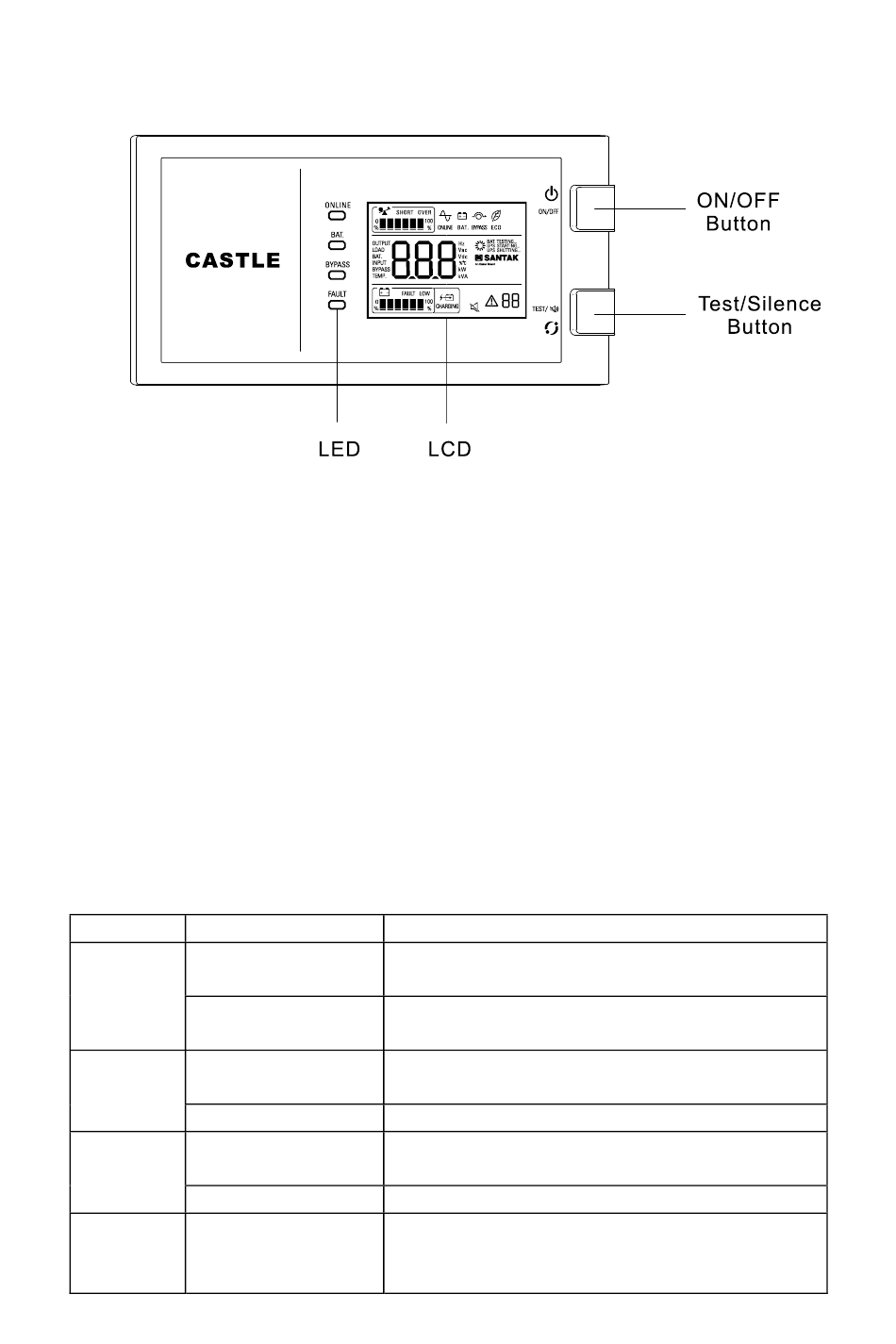

Control & Display panel is in the front of UPS, the panel includes 2
buttons, 4 LED indicators and 1 LCD screen.
1)
On/Off button : Turn on/off UPS.
2)
Function button
Mute (Press the button continuously for 2 to 10 seconds when
buzzer beep for bypass-mode or battery-mode, buzzer will be
●
muted; Press the button continuously more than 10 seconds when
buzzer beep for alarm, buzzer will be muted; repetition Repeated
operation will cancel previous operation);
Battery self-test (Press the button continuously for 2 to 10
seconds when UPS in Online mode);
●
Quick press the button to switch display meters.
3)
LED Indicator: There are 4 LED: Normal indicator, battery indicator,
●
bypass indicator and fault indicator.
Indicator Behavior
Online Light
Off
Battery Light
Blink per second
Bypass Light
Blink per second
Fault Light
3. Control & Display Panel
Description
UPS operates normally, power module
supply power for load.
Load powered by bypass (Not
ECO-mode), or UPS no output.
Battery supply power for load, Online
LED also lighted.
Charger or battery being abnormally.
UPS works in ECO-mode (Online LED
also lighted), or load powered by bypass.
Bypass being abnormally.
UPS in fault-mode, UPS will keep
powering for load when no EPO signal or
short-circuit fault.
- 22 -
