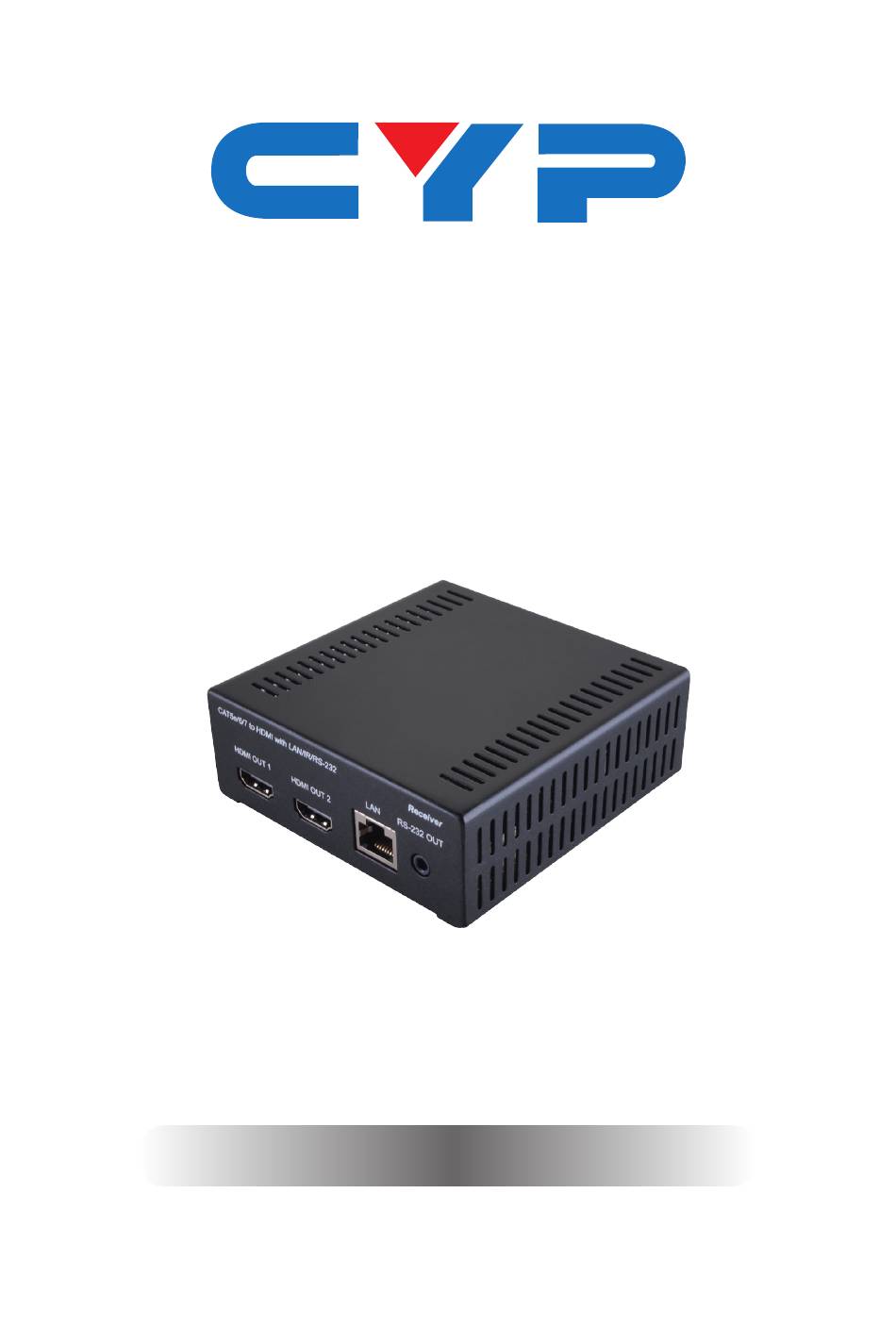

- Page 1 CHDBR-2HE 1 by 2 CAT5e/6/7 over HDMI with LAN/IR/RS232/Bi-directional PoE Receiver Operation Manual Operation Manual...
- Page 3 Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 D-Sub 9-Pin Definitions .....5 6.4 IR Cable Pin Assignment....5 7. -
Page 6: Introduction
1. INTRODUCTION The CAT5e/6/7 over HDMI Receiver accepts from the Transmitter unit the signal of resolutions up to 1080p Full HD, 4Kx2K timing, 3D and multi-channel digital audio formats and sends to two HDTV outputs. The HDMI can be connected to HDMI display for instant nearby display and the CAT5e/6/7 can be connected to CAT5e/6/7 to HDMI Transmitter for distance up to 100 meters with Bidirectional PoE feature. -
Page 7: Features
5. FEATURES • HDMI with 3D & 4Kx2K supported, HDCP and DVI compliant • HDMI outputs play identical video signal simultaneously • Supports data rate from 250Mbps up to 3Gbps • Supports wide range of PC resolutions from VGA to WUXGA and HDTV resolutions up to 4Kx2K (3840x2160@30Hz and 4096x2160@24Hz). -
Page 8: Operation Controls And Functions

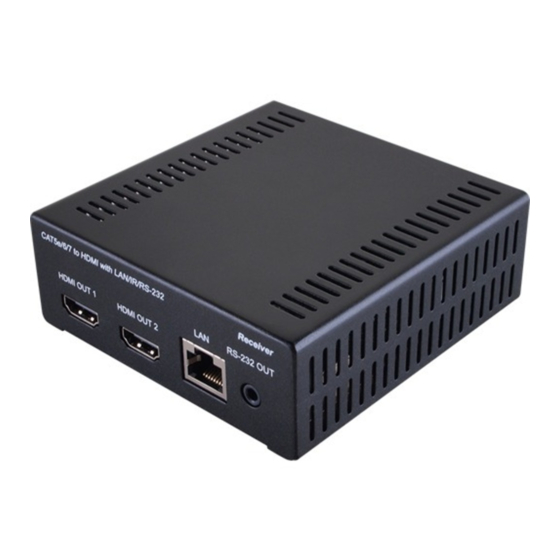

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel CAT5e/6/7 to HDMI with LAN/IR/RS-232 Receiver RS-232 OUT HDMI OUT 1 HDMI OUT 2 HDMI OUT 1 & 2: Connect to HDMI displays for instant image display or cascade with another family type Transmitter. The unit will detect HDMI OUT 1's EDID when it obtain a 4Kx2K EDID and send out the signal accordingly to other output ports. -
Page 9: Rear Panel
6.2 Rear Panel CAT5e/6/7 IN IR 2 POWER BLASTER LINK DC 24V IR 1 EXTENDER POWER LED: Once the power supply is connected the LED will illuminate. DC 24V: Plug the 24V DC power supply into the unit and connect the adaptor to an AC outlet. -
Page 10: D-Sub 9-Pin Definitions
6.3 D-Sub 9-Pin Definitions Define TxD/RxD RxD/TxD 6.4 IR Cable Pin Assignment IR Blaster Power 3.3 V IR Blaster Signal IR Extender IR Signal Power 3.3 V Grounding... -
Page 11: Connection Diagram
7. CONNECTION DIAGRAM IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT POE 24V IR IN IR IN IR IN IR IN... -
Page 12: Specifications
8. SPECIFICATIONS Video Bandwidth 340Mbps/10.2Gbps Input ports 1 x CAT5e/6/7, 1 x IR Extender, 1 x LAN, 1 x USB (Service only) CAT5e/6/7 Input Cable Up to 100 Meters Distance Output ports 2 x HDMI, 1 x RS-232 1 x IR Blaster, HDMI Output Cable Up to 10m@8 or12-bit 1080p Distance... -
Page 13: Cat5E/6/7 Cable Specification
8.1 CAT5e/6/7 Cable Specification Cable Range Pixel clock Video Data Supported Video Type rate Rate CAT5e/6/7 100 m <=225 MHz <=5.3 Gbps Up to 1080p, 60 Hz, 36 bits, 3D (data rates (HD Video) lower than 5.3 Gbps or below 225 MHz TMDS clock). - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw 20130711 MPM-CHDBR-2HE...
