Summary of Contents for Cypress CA-DVIAT

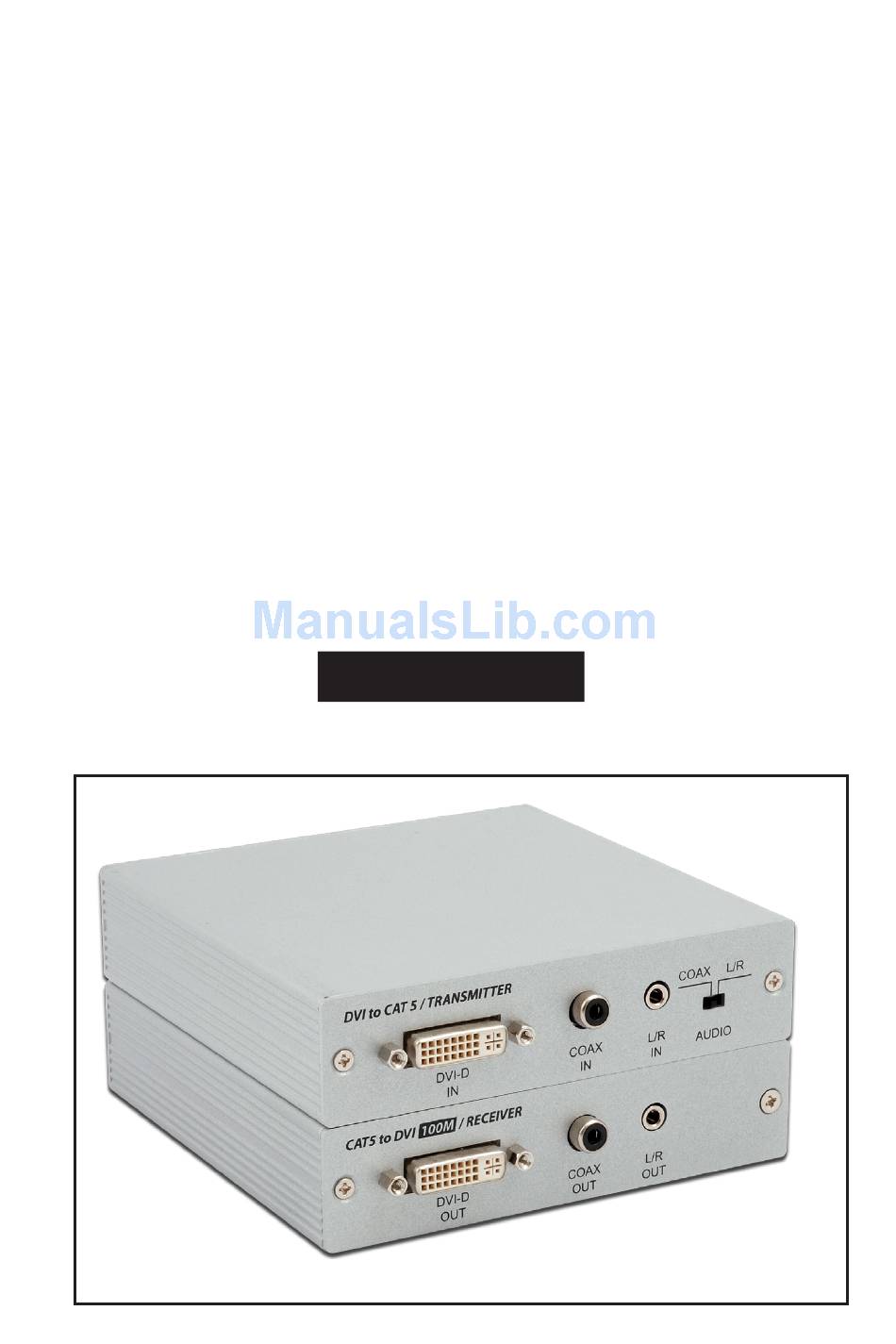

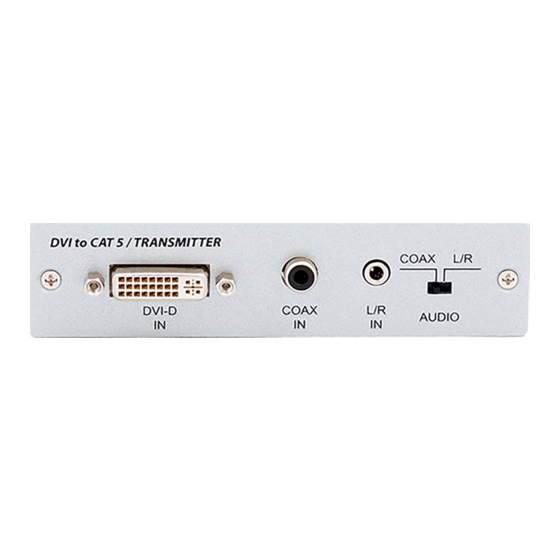

- Page 1 CA-DVIAT & CA-DVI100R DVI over CAT5 Transmitter & Receiver Box Operation Manual CA-DVIAT&CA-DVI100R...
- Page 2 Revision History Version No Date Summary of Change 20090401 Preliminary Release Precaution Failure to follow the precautions described below may cause damage to DVI over CAT 5 Transmitter and Receiver Box and void the warranty. DO NOT open the case. Doing so will void the warranty. If you find ...
-
Page 3: Table Of Contents
Table of Contents Introduction…………………………………………………..………. Application…………………………………………………....…. Contents………………………………………………......… System Require…………………………………….…………..……. Features……………………………………………..……..……… Operation Controls and Functions……………………………………. Transmitter’s Front Panel............Transmitter’s Rear Panel............Receiver’s Front Panel………………......….….… Receiver’s Rear Panel………………………………..….… Connection and Installation……………………………..……..… Specifications……………………………………………...……….. -
Page 4: Introduction
1. Introduction DVI transmitter and receiver over CAT 5 is a pair of extender for DVI signal - up to 100 meters long. Not only can this device transfer the HD image signal but also the analog/digital audio signal with coaxial and L/R audio port. This extender is perfect for extending high resolution digital display with crystal clear images over low cost CAT5 solution. -
Page 5: Features
5. Features Compliant with HDMI 1.2, and DVI 1.0 specifications. Support Equalizer, and Gain adjustment. Supports high definition input up to 1080P/WUXGA, output resolution follows input. Easy to install and simple to operate. Connect CAT 5 back to DVI without signal loss after 100 meter's ... -
Page 6: Transmitter's Rear Panel
6.2 Transmitter’s Rear Panel VIDEO DC 5V CAT5 OUTPUT ① VIDEO CAT5 OUTPUT-connect the VIDEO output to the VIDEO input of receiver with CAT-5/CAT-5E cable. ② Power Jack – Connect with 5V / 2.6A power adaptor with power supply. Note: 1.When using video connector only for signal transmit with transmitter and receiver, the DVI-D output signal will have auto HDCP protection. -
Page 7: Receiver's Rear Panel
6.4 Receiver’s Rear Panel CAT5 to DVI 100M / RECEIVER DVI-D COAX ① DVI-D OUT – Connect to DVI display monitor with DVI cable. ② COAX OUT – Connect to audio amplifier or audio equipment ’ s input with coaxial cable. ③... -
Page 8: Connection And Installation
7. Connection and Installation VIDEO (CAT-5 Cable) Co-ax Cable Cable Cable VIDEO DVI to CAT 5 / TRANSMITTER DC 5V COAX 100 Meters DVI-D COAX AUDIO CAT5 OUTPUT Transmitter unit Transmitter unit Front Rear VIDEO DC 5V CAT5 to DVI 100M / RECEIVER EQUALIZER GAIN... -
Page 9: Specifications
8. Specifications Transmitter Input port 1 x DVI-I female port (Accept DVI-D signal only) 1 x Coaxial 1 x L/R Audio Transmitter Output port 2 x CAT5 RJ 45 8pin Receiver Input port 2 x CAT5 RJ 45 8pin Receiver Output port 1 x DVI-I female port (Output DVI-D Signal only) 1 x Coaxial 1 x L/R Audio... - Page 12 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20090611 MPM-CADVI100R...
