Cypress CA-COMPAT Operation Manual

Cat5 series pc/hd audio over cat5 receiver at 100 meters
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PC/HD Audio over
CAT5 Receiver at
100 Meters
Operation Manual
CA-COMP100R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CA-COMPAT and is the answer not in the manual?

Questions and answers

Related Manuals for Cypress CA-COMPAT

Summary of Contents for Cypress CA-COMPAT

  • Page 1 PC/HD Audio over CAT5 Receiver at 100 Meters Operation Manual CA-COMP100R...
  • Page 2 TABLE OF CONTENTS 1. Introduction ..................3 2. Features ....................3 3. Package Contents ................3 4. Operation Controls and Functions ........... 4 4.1 Front Panel ..................4 4.2 Rear Panel ..................5 5. Specifications ..................6 5.1 Audio Performance ..............6...

  • Page 3: Package Contents

    1. Introduction This is the receiver (Rx) unit of PC/HD audio over CAT5 solution, works with the transmitter that can extend PC/HD with Audio signal through CAT-5 cables for a distance up to 100 meters. The installation of PC/HD audio over CAT5 is easy and quick, simply place receiver next to your display, and get all necessary cables connected to complete and enjoy.

  • Page 4: Operation Controls And Functions

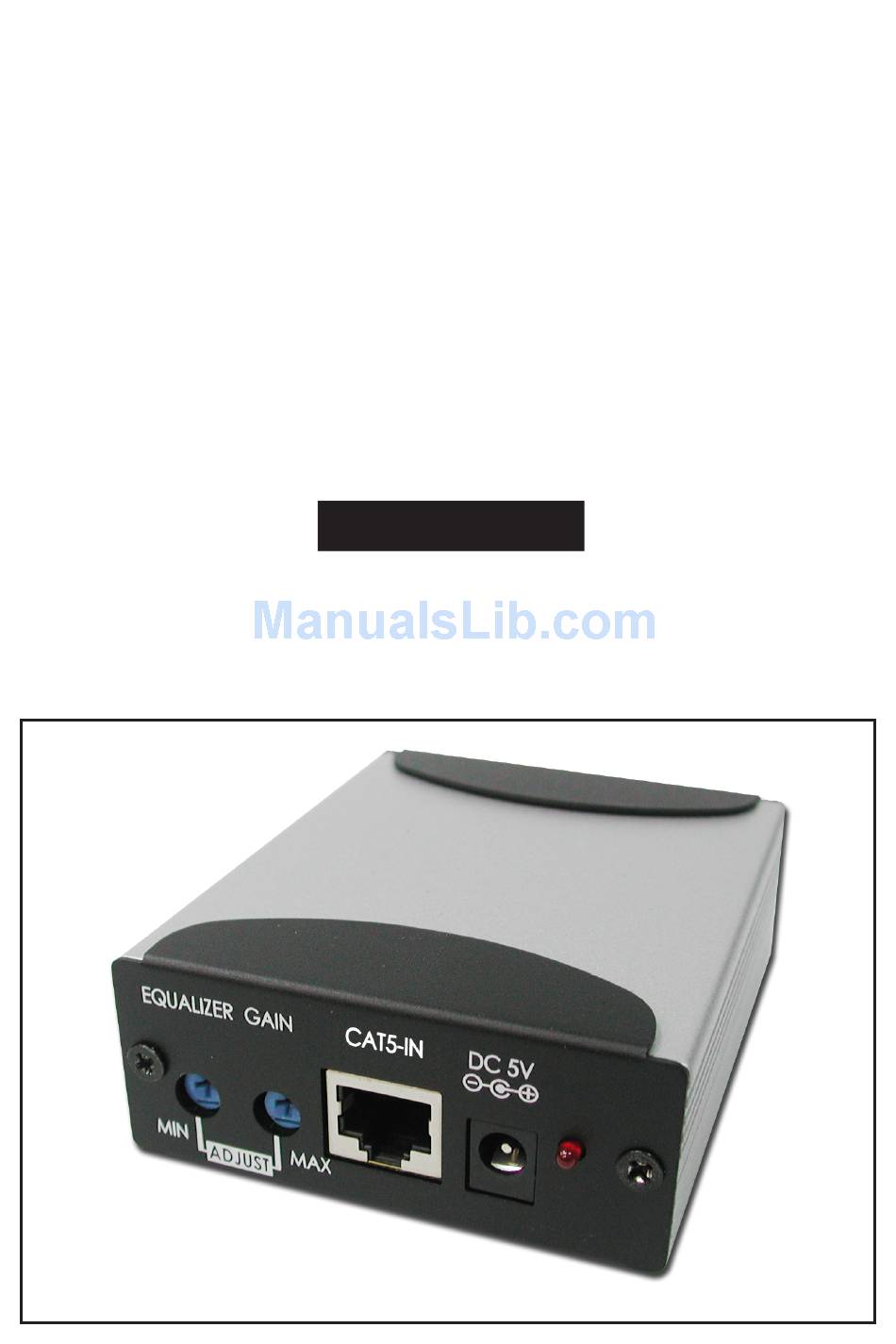

    4. Operation Controls and Functions 4.1 Front Panel EQUALIZER GAIN CAT5-IN DC 5V ADJUST 1. EQUALIZER: Use this switcher to adjust signal enhancement over long distance. 2. GAIN: Use this switcher to adjust brightness. 3. CAT5-IN: Connected the video output to the video input of the CAT5 receiver unit using CAT-5 cable.
  • Page 5 4.2 Rear Panel TOSLINK AUDIO PC/HD 1. Toslink output: Connected SPDIF output to the display audio input. 2. Audio output: Connected audio R/L output to the display audio input. 3. PC/HD output: Connect the PC/HDMI output port to the PC/HDMI input display with D-Sub 15pin cable.

  • Page 6: Specifications

    5. Specifications Supported Resolutions HD: up to 1080p; PC: up to UXGA Output Ports VGA, Audio L/R or Toslink/SPDIF Input Port CAT-5 Audio Input Toslink: Dolby AC3 / PCM 2CH L/R: PCM 2CH Power Supply 5V/1A DC (US/EU standards, CE/FCC/UL certified) Dimensions (mm) 99.5(W) x 77(D) x 32.5(H) Weight(g)
  • Page 8 Cypress Component over CAT5 series: Product Description CA-COMPAT Component over CAT5 Transmitter CA-COMP 50R Component over CAT5 Receiver at 50 meters CA-COMP 100R Component over CAT5 Receiver at 100 meters CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20071128 MPM-COMP100R...
