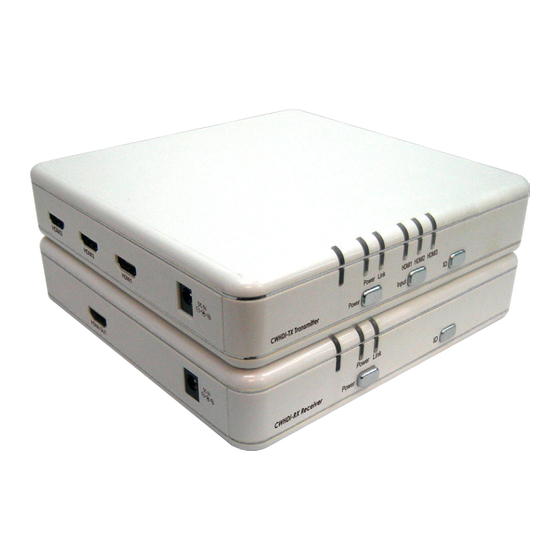

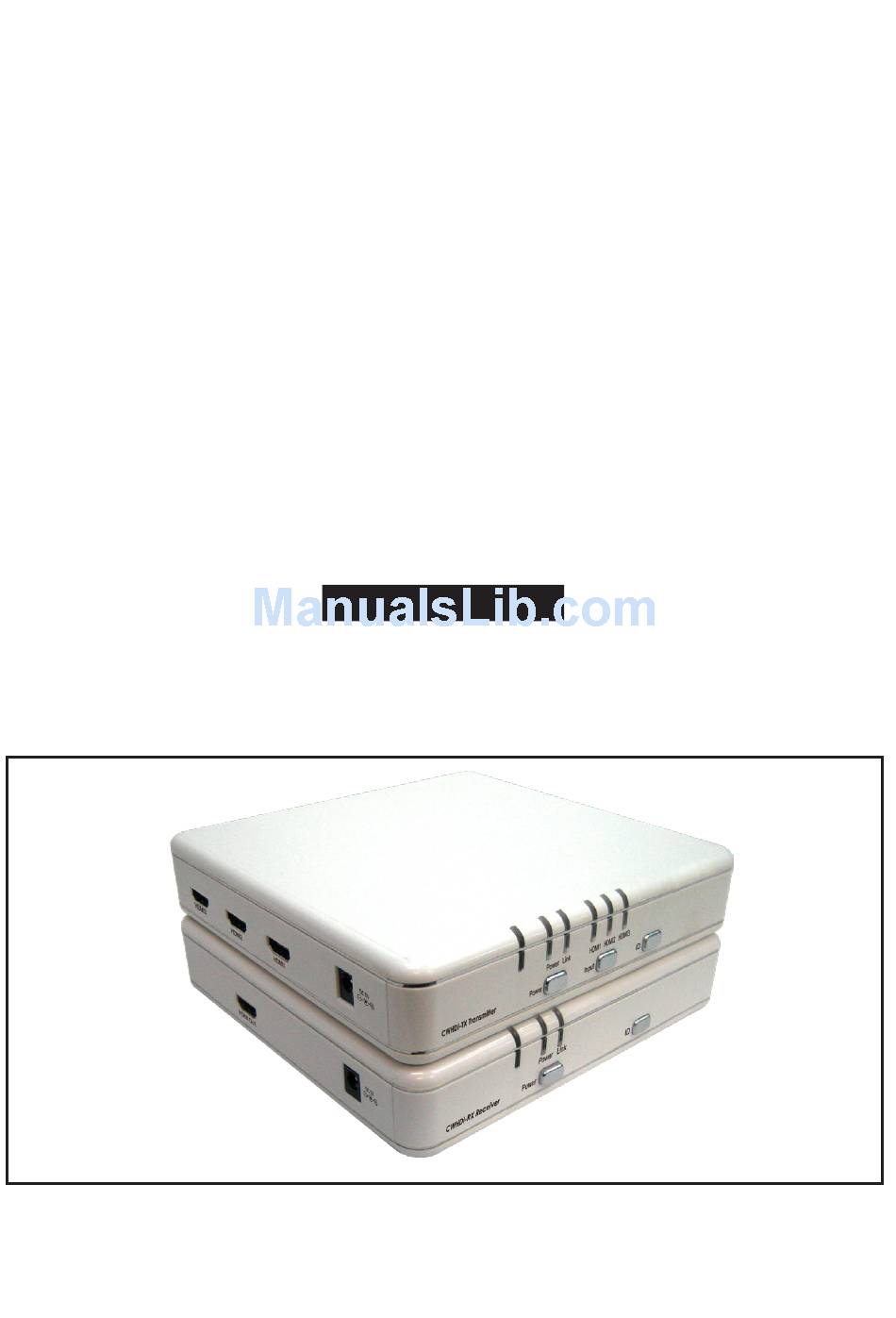

- Page 1 CWHDI-TX & RX Wireless HDMI Transmitter and Receiver Box Operation Manual CWHDI-TX & RX...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction................2. Features..................3. Package Contents..............4. Operation Controls and Functions.......... Transmitter side..............4.1.1 Front Panel................ 4.1.2 Rear Panel................. Receiver side..............4.2.1 Front Panel................. 4.2.2 Rear Panel................5. Remote Control................6. Connection and Installation............. 7. Specifications................8. -
Page 3: Introduction
1. Introduction This wireless HDMI transmitter and receiver box uses baseband technology with a Wireless High Definition Interface (WHDI) to deliver uncompressed HD video and audio up to 15~30 meters away, while maintaining superb, wired-equivalent quality and reliability without any lag. Both the transmitter and receiver are available with embedded antennas. -
Page 4: Operation Controls And Functions
4. Operation Controls and Functions Transmitter side 4.1.1 Front Panel Power Link HDMI1 HDMI2 HDMI3 CWHDI-TX Transmitter Power Input Power: Press to turn the system on/off. ① Input: Press to select input source (1/2/3). ② ID: Press the Transmitter and Receivers “ID” button for 2 seconds to ③... -
Page 5: Rear Panel
4.1.2 Rear Panel DC 5V HDMI3 HDMI2 HDMI1 ① HDMI 1/2/3 Inputs: Connect each of the input ports to the HDMI output of your source equipment such as DVD/Blu Ray players or set-top-boxes. ② Power: Plug the 5V DC power supply into this unit and connect the adaptor to an AC outlet. -
Page 6: Rear Panel
4.2.2 Rear Panel DC 5V HDMI OUT ① HDMI output: Connect the HDMI output to the HDMI input of your display using an HDMI cable. ② Power: Plug the 5V DC power supply into this unit and connect the adaptor to an AC outlet. -
Page 7: Connection And Installation
6. Connection and Installation HDMI Cable HDMI Cable LCD TV Blu-Ray HDMI Cable LCD TV Blu-Ray LCD TV LCD TV 30˚ 30˚ 30˚ 30˚ POWER POWER INPUT Transmitter CR-67 Receiver CR-68... -
Page 8: Specifications
7. Specifications Radio Power Transmit power is configurable up to 63mW (+18dBm) Video resolutions (partial list) 480i/p, 576i/p, 720p, 1080i, VGA@60/72, SVGA@60/72, XGA@60/70 and 1080p(24fps/30fps) Frequencies Supported 4.9 ~ 5.9GHz Modulation OFDM MIMO with WHDITH video-modem Technology Bandwidth 20MHz Wireless Range 15~30 meters open field Antenna Transmitter: 4 transmit antennas and 1 receive... -
Page 9: Troubleshooting
8. Troubleshooting Situation Check Point Check if the right adaptor is used. 5V 2.6A’s adaptor. Power LED is not Check all power connectors are plugged in illuminate when power correctly. Push the power buttons to turn on the devices. This is normal if the devices are pairing or learning, the LED will illuminate slowly when it is doing signal linking. - Page 12 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20070816 MPM-CWHDI-TX & RX...
