- Page 1 Active Connect Multimedia Transmitter and Receiver Box Operation Manual CAC-TXA&RXA...
-
Page 2: Revision History
Revision History Version No Date Summary of Change 20080929 Preliminary Release Precaution Failure to follow the precautions described below may cause damage to Active Connect Multimedia Transmitter and Receiver Box and void the warranty. DO NOT open the case. Doing so will void the warranty. If you find ... - Page 3 Table of Contents Introduction … ………………………………………........ Applications......…..……………………………………… Package Contents .....………………………………………………. System Requirements ....……………………………………….. Features ......……………………………………………….. Operation Controls and Functions..……………………..……….. Specifications..................
-
Page 4: Package Contents
1. Introduction Thank you for purchasing the Active Connect Multimedia Transmitter and Receiver Box (ACMTRB). This product is ideally suited for long distance transmission of your PS3/DVD or Blu Ray devices to an HDMI display. It is operational within 100M at 1080p/8bit and supports HDMI V1.3. The ACMTRB ’... - Page 5 RG6 Type 75 Ω coaxial cable (for cable TV) x 5 1080P/8bit → 100M 1080P/12Bit → 65M ± 10M Belden™ 7789A 23 solid AWG and solid 25AWG RGBHV Cable with 5 BNC. RESOLUTION DISTANCE 1080P-8bit 90 ± 10 m 1080P-12bit 65 ±...
-
Page 6: Operation Controls And Functions

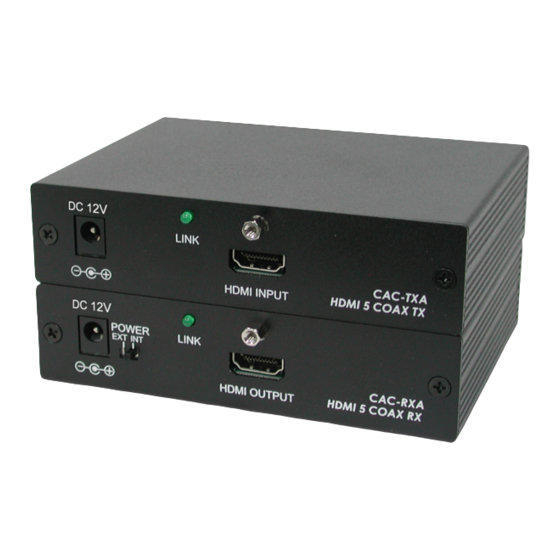

6. Operation Controls and Functions Please follow the step-by-step instruction below to install your Active Connect Multimedia Transmitter and Receiver Box. LINK HDMI INPUT POWER LINK EXT INT HDMI OUTPUT ① Connect one of the power adaptors to the Transmitter Box and plug the power cable into an AC outlet. -
Page 7: Specifications
CoaxialX5 HDMI-Cable HDMI-Cable HDMI-Cable Blu-ray 7. Specifications Input Port 1 HDMI to 5 BNC connectors Output Port 5 BNC connectors to 1 HDMI HDMI Specification V 1.3 HDMI Resolution 480i~1080p 50/60, 1080p 24, VGA~WUXGA CEC Function Bypass HDMI Audio PCM2, PCM 5.1, PCM 7.1, Dolby 5.1, DD+, D-TruHD, DTS-HD Color Space RGB 24~36, Y444 24~36, Y422 16~24... - Page 8 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20081013 MPM-CACRX&TX...
