- Page 1 HDMI Over CAT5 Receiver at 250 Meters Operation Manual CA-HDMI250R...
- Page 2 TABLE OF CONTENTS 1. Introduction................1 2. Features..................1 3. Package Contents..............1 4. Operation Controls and Functions........... 2 4.1 Front Panel................2 4.2 Rear Panel................2 5. Specifications................3 6. Connection and Installation............ 4...
-
Page 3: Package Contents

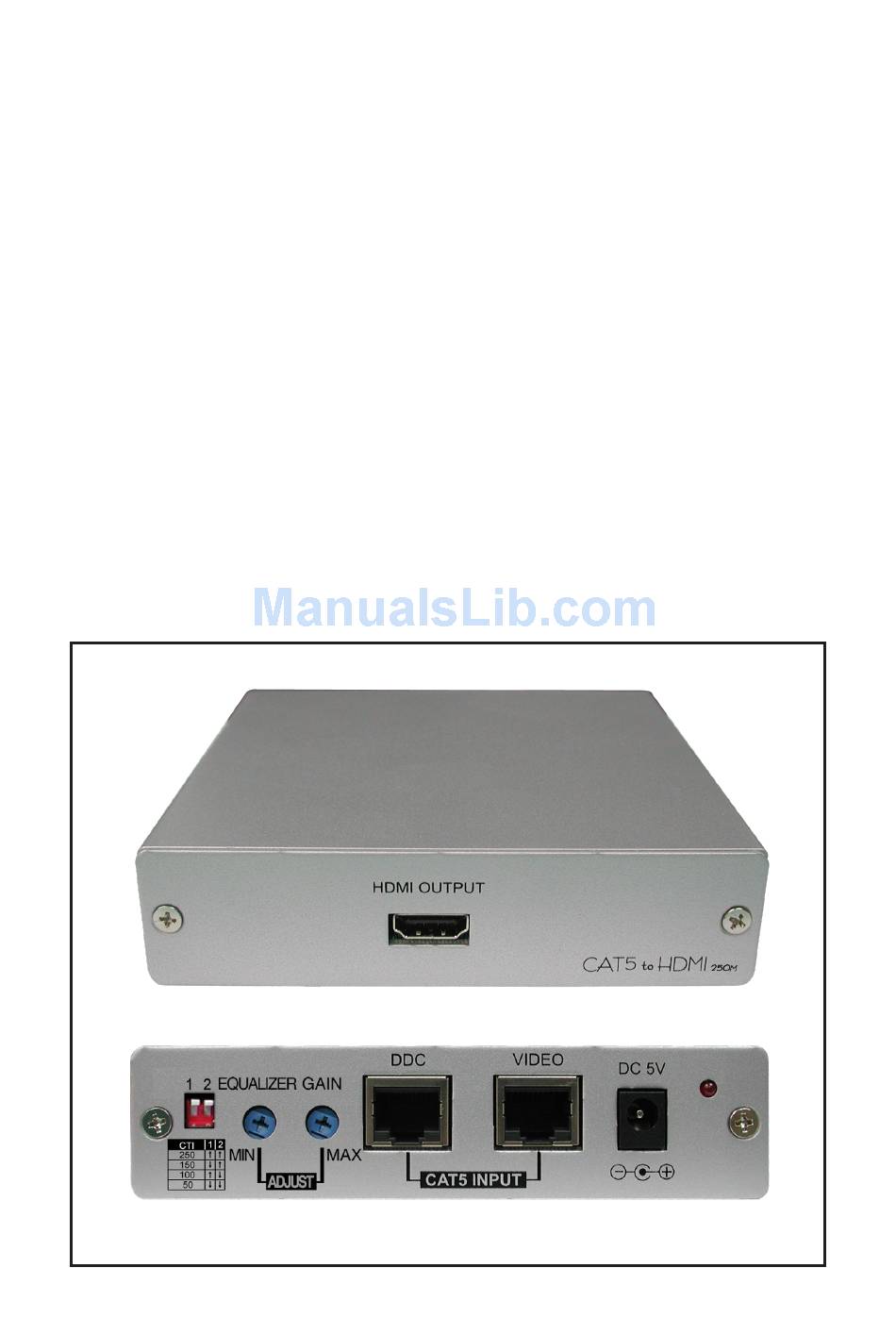

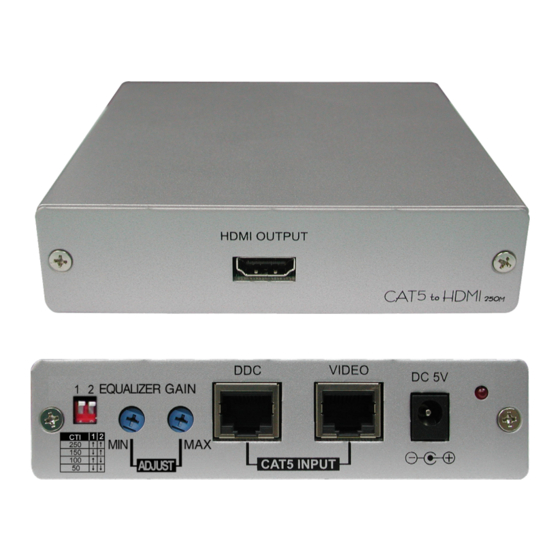

1. Introduction This is the receiver (Rx) unit of HDMI over CAT5 Tx/Rx solution, works with HDMI over CAT5 Transmitter, can extend HDMI signal through CAT-5 cables for a distance up to 250 meters. The installation of HDMI Over CAT5 is easy and quick, simply place the Transmitter next to your HDTV source such as a DVD player, then place this unit next to your display, and get all necessary cables connected to complete and enjoy. - Page 4 4. Operation Controls and Functions 4.1 Front Panel HDMI OUTPUT to HDMI 250 1 HDMI OUTPUT: Connect the HDMI output port to the HDMI input of your display. 4.2 Rear Panel VIDEO DC 5V EQUALIZER GAIN ADJUST CAT5 INPUT 1 Distance Control Jumper: Setting CTI, to use the twin jumpers to adjust to the optimized setting for different distance of connection first.
-
Page 5: Specifications
2 EQUALIZER: Use this switch to adjust signal enhancement over long distance. 3 GAIN: Use this switch to adjust brightness. 4 DDC INPUT: Connect the DDC input to the DDC output of the transmitter unit using CAT-5/CAT-5E/CAT-6 cable. Note: For advanced user only, if it's known that the DDC or HDCP data are required for the source and the display, you can use a single CAT-5 cable for the VIDEO connection only. -
Page 6: Connection And Installation
6. Connection and Installation DVD Player HDMI HDMI Cable Cable VIDEO (CAT-5 Cable) DDC (CAT-5 Cable) VIDEO DC 5V HDMI INPUT HDMI to CAT CAT5 OUTPUT Transmitter Unit Transmitter Unit Front Rear 250 Meters VIDEO DC 5V EQUALIZER GAIN HDMI OUTPUT to HDMI 250 ADJUST CAT5 INPUT... - Page 8 Cypress HDMI Over CAT5 Series: Description Product HDMI Over CAT5 Transmitter CA-HDMIAT HDMI Over CAT5 Receiver at 50 meters CA-HDMI 50R HDMI Over CAT5 Receiver at 100 meters CA-HDMI 100R HDMI Over CAT5 Receiver at 150 meters CA-HDMI 150R HDMI Over CAT5 Receiver at 250 meters CA-HDMI 250R CYPRESS TECHNOLOGY CO., LTD.
