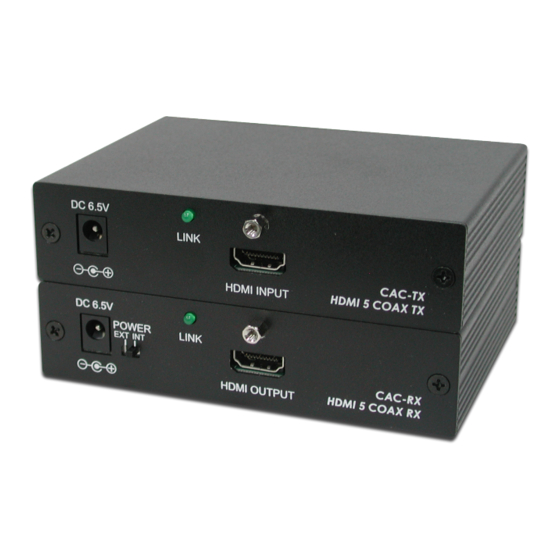

- Page 1 CAC-Tx&Rx Active Connect Multimedia Transmitter and Receiver Box Operation Manual CAC-TX&RX...
-
Page 2: Revision History
Revision History Version No Date Summary of Change 20080929 Preliminary Release Precaution Failure to follow the precautions described below may cause damage to Active Connect Multimedia Transmitter and Receiver Box and void the warranty. DO NOT open the case. Doing so will void the warranty. If you find ... - Page 3 Table of Contents Introduction …………………………………………........ Application......…………………………………………… Contents ......………………………………………………. System Require ......……………………………………….. Features ......……………………………………………….. Installation ......…………………………………………….. Specification..................
-
Page 4: System Requirements
1. Introduction Thank you for purchasing Active Connect Multimedia Transmitter and Receiver Box. Active Connect Multimedia Transmitter and Receiver Box is an useful device for long distance display of your game/player devices to your HDMI displayer. It allows distance up to 100M at 1080p/8bit and more in total for display and support up to HDMI V1.3 specification further, Active Connect Multimedia Transmitter and Receiver Box ’... - Page 5 RG6 Type 75 Ω coaxial cable (for cable TV) x 5 1080P/8bit → 100M 1080P/12Bit → 75M Belden™ 7789A 23 solid AWG and solid 25AWG RGBHV Cable with 5 BNC. RESOLUTION DISTANCE 1080P-8bit 85 ± 5 m 1080P-12bit 60 ± 5 m 1080P-8bit 65 ±...
- Page 6 6. Installation Please follow the step-by-step instruction below to install your Active Connect Multimedia Transmitter and Receiver Box. DC 6.5V LINK CAC-TX HDMI 5 COAX TX HDMI INPUT DC 6.5V POWER LINK EXT INT CAC-RX HDMI 5 COAX RX HDMI OUTPUT Connect one of the power adaptors to Active Connect multimedia Transmitter Box and plug in the power.
-
Page 7: Specifications
CoaxialX5 HDMI-Cable HDMI-Cable HDMI-Cable Blue-ray 7. Specifications Input port 1 HDMI to 5 BNC connectors Output port 5 BNC connectors to 1 HDMI HDMI Specification V 1.3 HDMI Resolution 480i~1080p 50/60, 1080p 24, VGA~WUXGA CEC Function Bypass HDMI Audio PCM2, PCM 5.1, PCM 7.1, Dolby 5.1, DD+, D-TruHD, DTS-HD Color Space RGB 24~36, Y444 24~36, Y422 16~24... - Page 8 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20081013 MPM-CACRX&TX...
