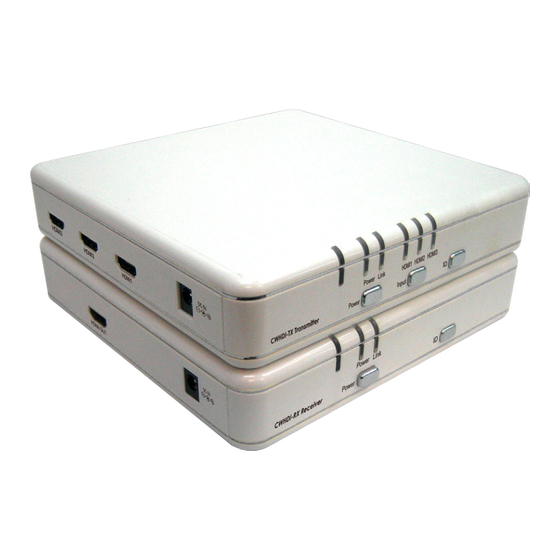

Wireless hdmi transmitter and receiver box
Hide thumbs Also See for CWHDI-TX:
Table of Contents

Advertisement

Quick Links

Download this manual
CWHDI-TX & RX
Wireless HDMI
Transmitter and
Receiver Box
Operation Manual
CWHDI-TX & RX

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CWHDI-TX and is the answer not in the manual?

Questions and answers

Related Manuals for Cypress CWHDI-TX

Summary of Contents for Cypress CWHDI-TX

  • Page 1 CWHDI-TX & RX Wireless HDMI Transmitter and Receiver Box Operation Manual CWHDI-TX & RX...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Introduction................2. Features..................3. Package Contents..............4. Operation Controls and Functions.......... Transmitter side..............4.1.1 Front Panel................ 4.1.2 Rear Panel................. Receiver side..............4.2.1 Front Panel................. 4.2.2 Rear Panel................5. Remote Control................6. Connection and Installation............. 7. Specifications................8.

  • Page 3: Introduction

    1. Introduction The wireless HDMI transmitter and receiver box are using baseband technology with Wireless High Definition Interface (WHDI) to deliver uncompressed HD video and audio up to 15~30 meters open field, while maintaining superb, wire-equivalent quality and robustness with no latency. The transmitter and receiver side are available with embedded antennas.

  • Page 4: Operation Controls And Functions

    4. Operation Controls and Functions Transmitter side 4.1.1 Front Panel Power Link HDMI1 HDMI2 HDMI3 CWHDI-TX Transmitter Power Input ① Power: Press to turn ON/OFF the system. ② Input: Press to select input source (1/2/3). ③ ID: Press transmitter “ID” button and receiver “ID” button for 2 second to pair the system.

  • Page 5: Rear Panel

    4.1.2 Rear Panel DC 5V HDMI3 HDMI2 HDMI1 ① HDMI 1/2/3 Inputs: Connect each of the input ports to the HDMI output of your source equipment such as DVD player or set-top-box. ② Power: Plug the 5V DC power supply into this unit and connect the adaptor to AC wall outlet.

  • Page 6: Rear Panel

    4.2.2 Rear Panel DC 5V HDMI OUT ① HDMI output: Connect the HDMI output to the HDMI input of your display using HDMI cable. ② Power: Plug the 5V DC power supply into this unit and connect the adaptor to AC wall outlet. 5.

  • Page 7: Connection And Installation

    6. Connection and Installation HDMI Cable HDMI Cable LCD TV Blu-Ray HDMI Cable LCD TV Blu-Ray LCD TV LCD TV 30˚ 30˚ 30˚ 30˚ POWER POWER INPUT Transmitter CR-67 Receiver CR-68...

  • Page 8: Specifications

    7. Specifications Radio Power Transmit power is configurable up to 63mW (+18dBm) Video resolutions (partial list) 480i/p, 576i/p, 720p, 1080i, VGA@60/72, SVGA@60/72, XGA@60/70 and 1080p(24fps/30fps) Frequencies Supported 4.9 ~ 5.9GHz Modulation OFDM MIMO with WHDITH video-modem Technology Bandwidth 20MHz Wireless Range 15~30 meters open field Antenna Transmitter: 4 transmit antennas and 1 receive...

  • Page 9: Troubleshooting

    8. Troubleshooting Situation Check Point Check if the right adaptor is used. 5V 2.6A’s adaptor. Power LED is not Check all power connectors are plugged in illuminate when power correctly. Push the power buttons to turn on the devices. This is normal if the devices are pairing or learning, the LED will illuminate slowly when it is doing signal linking.
  • Page 12 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20070816 MPM-CWHDI-TX & RX...

This manual is also suitable for:

Cwhdi-rx
