- Page 1 CHDBR-2HE HDMI over Single CAT5e/6/7 Receiver with Dual Simultaneous HDMI Outputs Operation Manual Operation Manual...
- Page 3 Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 IR Cable Pin Assignment....5 6.4 RS-232 Cable Pin Definitions ....5 7. -
Page 6: Introduction
1. INTRODUCTION The HDMI over CAT5e/6/7 Receiver is designed to receive an HDBaseT™ signal from a compatible transmitter or matrix unit. It features full 5Play™ convergence allowing the transmission of video, Audio, Control (IR/RS-232), Power over Ethernet (PoE) and LAN serving over a single CAT5e/6/7 cable up to 100m. -
Page 7: Features
5. FEATURES • HDMI (with 3D format and 4K2K resolution support), HDCP and DVI compliant • Dual simultaneous HDMI outputs • Supports data rates from 250 Mbps up to 3 Gbps • Supports a wide range of resolutions - PC from VGA to WUXGA and HDTV up to 4K2K (3840×2160@30 Hz and 4096×2160@24 Hz) •... -
Page 8: Operation Controls And Functions

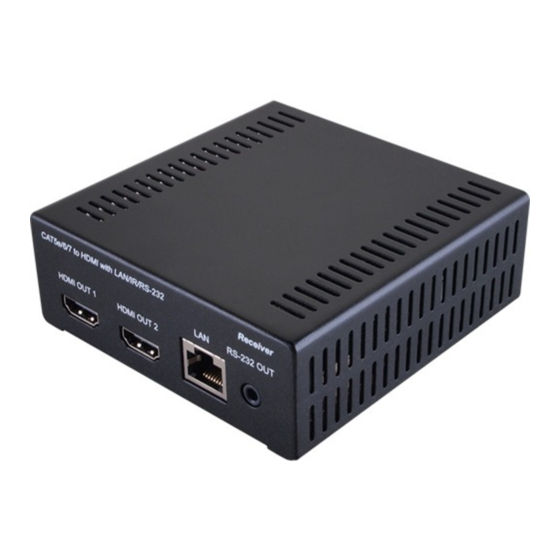

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel Receiver RS-232 OUT HDMI OUT 1 HDMI OUT 2 HDMI OUT 1/2: Connect each of the HDMI outputs to an HDMI display for simultaneous HDMI distribution, or cascade the output to another transmitter to extend the operating distance. The unit will read the EDID settings of the display device connected to HDMI OUT 1. -
Page 9: Rear Panel
6.2 Rear Panel CAT5e/6/7 IN IR 2 POWER BLASTER LINK DC 24V IR 1 EXTENDER POWER LED: This LED will illuminate when the device is connected to a power supply. DC 24V: Connect the 24 V DC power supply to the receiver and plug the adaptor into an AC outlet. -
Page 10: Ir Cable Pin Assignment
6.3 IR Cable Pin Assignment IR Blaster Power 3.3V IR Blaster Signal IR Extender IR Signal Power 3.3V Grounding 6.4 RS-232 Cable Pin Definitions DEFINE TxD/RxD RxD/TxD... -
Page 11: Connection Diagram
7. CONNECTION DIAGRAM Blu-ray Player Router HDMI (with Internet Input Connection) 1.5m Serving 60° 60° RS-232 RS-232 In Transmitter HDMI In HDBaseT HDMI to CAT5e/6 with LAN/IR/RS232 Transmitter IR1 Blaster Power DC 24V IR2 Extender Power Extender Blaster RS-232 Equipped Supply PC or Control System... -
Page 12: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 340 Mbps/10.2 Gbps Input Ports 1×CAT5e/6/7, 1×LAN, 1×IR Extender, 1×USB Mini-B (Service only) Output Ports 2×HDMI, 1×IR Blaster, 1×RS-232 CAT5e/6/7 Cable Up to 100 meters Distances HDMI Cable Distances Up to 10 meters@1080p/8-bit or 12-bit HDMI Resolutions Up to 4K2K (3840×2160@30 Hz/4096×2160@ 24 Hz) -
Page 13: Cat5E/6/7 Cable Specifications
8.2 CAT5e/6/7 Cable Specifications CABLE TYPE RANGE PIXEL VIDEO DATA SUPPORTED VIDEO CLOCK RATE RATE CAT5e/6/7 100 m ≤225 MHz ≤5.3 Gbps Up to 1080p, (HD Video) 60 Hz,36 bits, 3D (data rates lower than 5.3 Gbps or below 225 MHz TMDS clock) 70 m >225 MHz... - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw 20130711 MPM-CHDBR-2HE...
