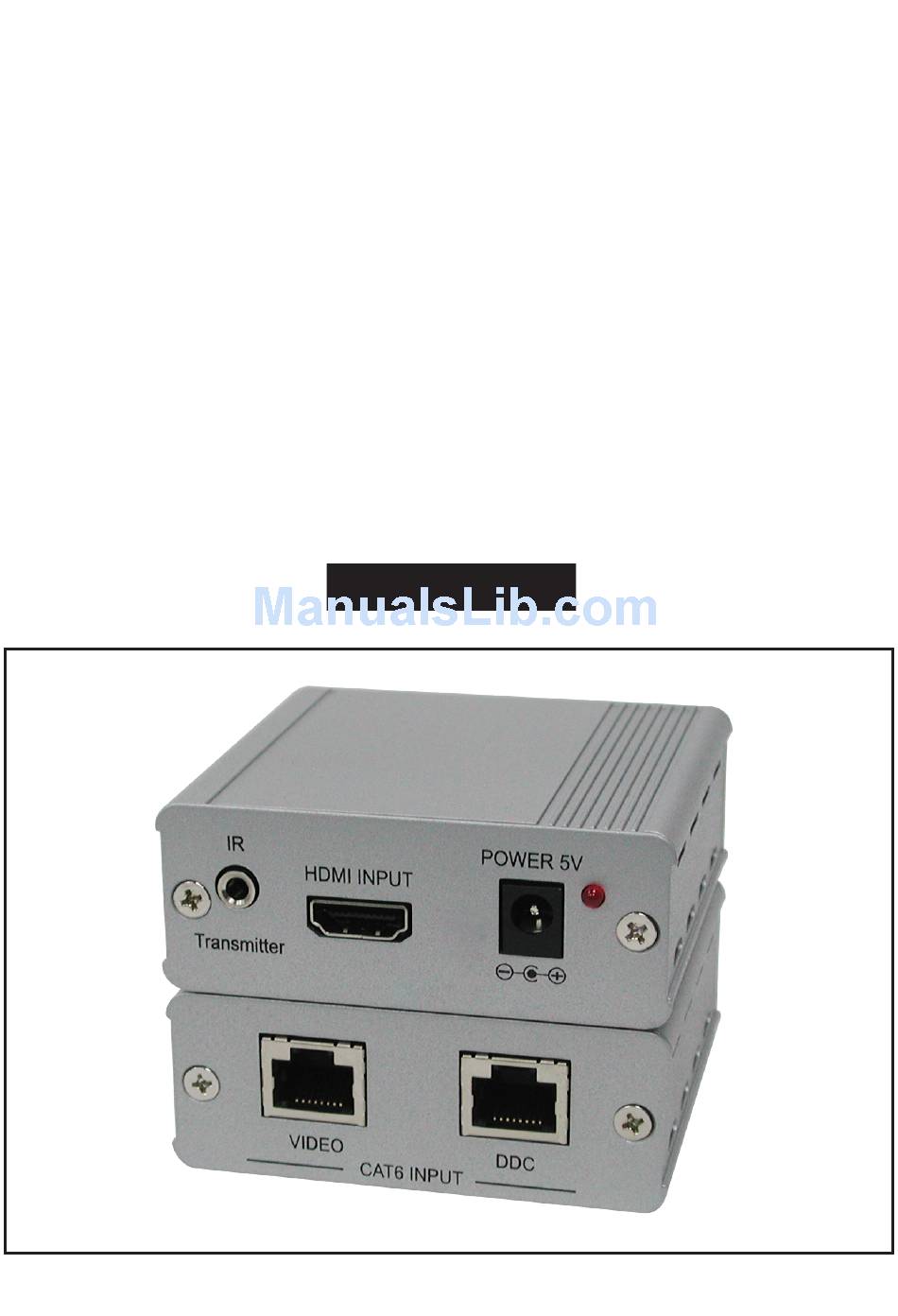

- Page 1 CH-106TX & RX HDMI v1.3 to CAT6 Transmitter & Receiver Operation Manual CH-106TX&RX...
- Page 3 Revision History Version No Date Summary of Change 20081208 Preliminary Release Precaution Failure to follow the precautions described below may cause damage to HDMI 1.3 Transmitter Box and void the warranty. DO NOT open the case. Doing so will void the warranty. If you find ...
-
Page 4: Table Of Contents
Table of Contents Introduction …...……………………………………………..………. Applications ………………..……………………………....…. Package Contents ………….………………………......… System Requirements ………………………………..……..……. Features ……………………...……………………..……..……… Specifications ……………………...……………………...……….. Operation Controls and Functions …………..………..…..……. Front Panel ................Rear Panel …………………………………………..…….… Connection and Installation ……………………………..……..…... -
Page 5: Introduction
1. Introduction The HDMI 1.3 transmitter and receiver over CAT 6 is an extend tool for your long distance HDMI display. Instead of using expansive HDMI cable, your existing CAT 6 cables/sockets also can perform the same functions like transfer Deep Color (12 bits/color) video and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) Digital audio, with a bandwidth up to 225MHz. -
Page 6: Specifications
8. Specifications Input Ports 1 x HDMI 1 x IR Receiver 1 x CAT-6 Input Video 1 x CAT-6 Input DDC Output Ports 1 x HDMI 1 x Blaster 1 x CAT-6 output for Video, 1 x CAT-6 output for DDC Power Supply 1x5V/2.6A DC (US/EU standards, CE/FCC/UL certified)) -
Page 7: Operation Controls And Functions
6. Operation Controls and Functions 6.1 Front Panel POWER 5V POWER 5V HDMI OUTPUT HDMI INPUT Receiver Transmitter ① HDMI input: Connect the HDMI input port to the HDMI or DVI output of your source equipment such as DVD player or set-top-box. ②... -
Page 8: Connection And Installation
° °... - Page 10 Acronyms Acronym Complete Term CAT6 Category 6 cable Digital Visual Interface EDID Extended Display Identification Data HDCP High-Bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface HDTV High-Definition Television Infrared LPCM Linear Pulse Code Modulation Standard SYNC Synchronize SXGA Super Extended Graphics Array Video Graphics Array...
