    1. Introduction Cypress CA-COMP50R is the receiver (Rx) unit of Component over CAT5 solution, works with CA-COMPAT (the transmitter), can extend Component signal through CAT-5 cables for a distance up to 50 meters. The installation of Cypress Component over CAT5 is easy and quick, simply place CA-COMP50R next to your display, and get all necessary cables connected to complete and enjoy.
  • Page 4 4. Operation Controls and Functions 4.1 Front Panel DC 5V CAT5-IN 1. CAT5-In: Connected the video output to the video input of the CAT5 receiver unit using CAT-5 cable. 2. DC 5V/1A: Power input. 3. Power ON/OFF indicator.

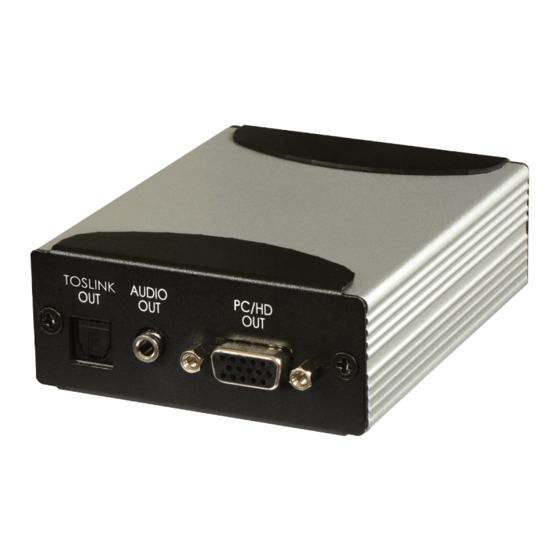

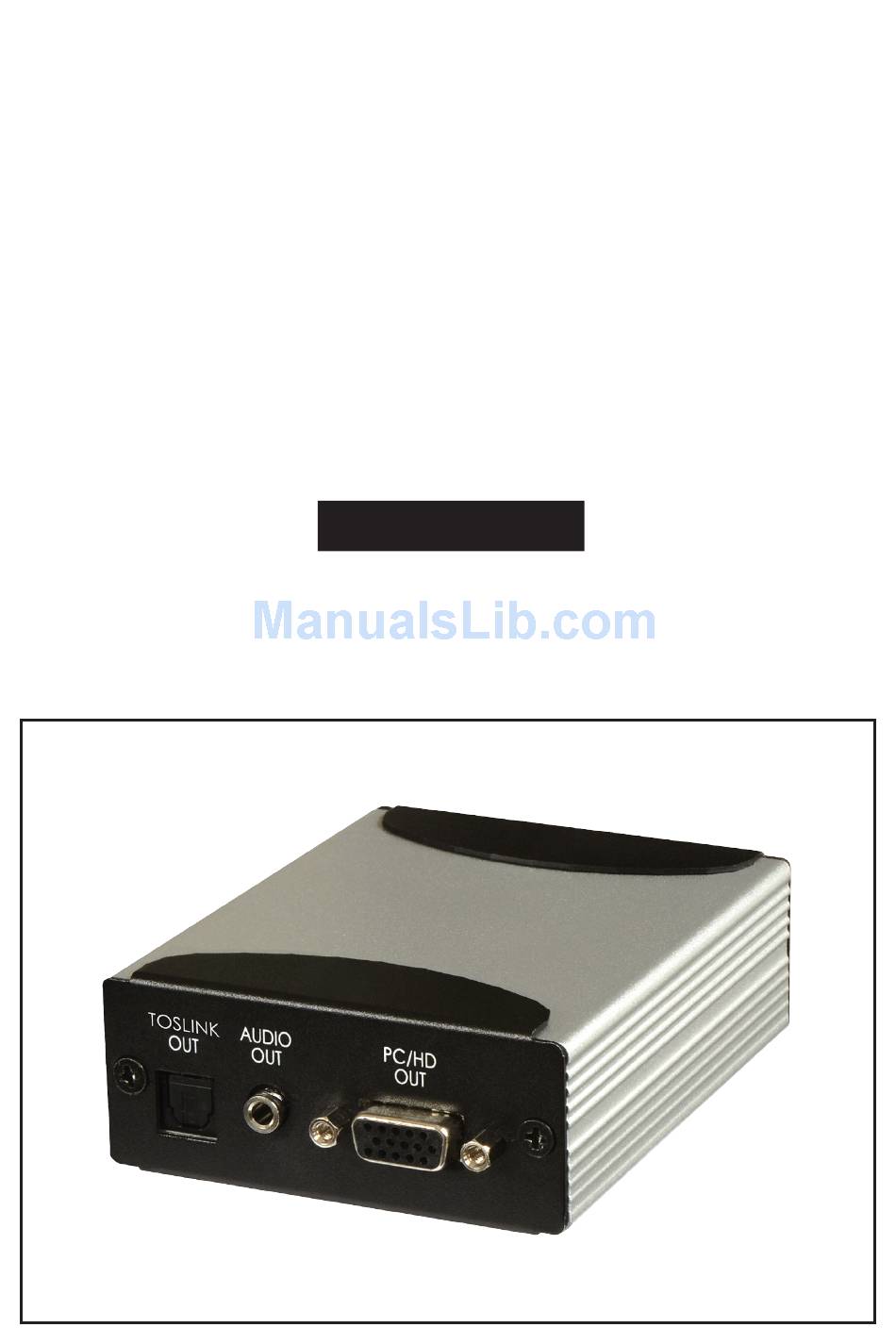

  • Page 5 4.2 Rear Panel TOSLINK AUDIO PC/HD 1. Toslink output: Connected SPDIF output to the display audio input. 2. Audio output: Connected audio R/L output to the display audio input. 3. PC/HD output: Connected the PC/HDMI output port to the PC/HDMI input display.

  • Page 6: Specifications

    5. Specifications Supported resolutions HD: up to 1080p; PC: up to UXGA Output audio source ports Audio L/R or Toslink/SPDIF input video source port CAT-5 Power Supply 5V/1A DC (US/EU standards, CE/FCC/UL certified) Dimensions (mm) 99.5(W) x 77(D) x 32.5(H) Weight(g) Chassis Material Metal...
  • Page 7 Cypress Component over CAT5 series: Product Description CA-COMPAT Component over CAT5 Transmitter CA-HDMI 50R Component over CAT5 Receiver at 50 meters CA-HDMI 100R Component over CAT5 Receiver at 100 meters CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20070920 MPM CA-COMP50R...
