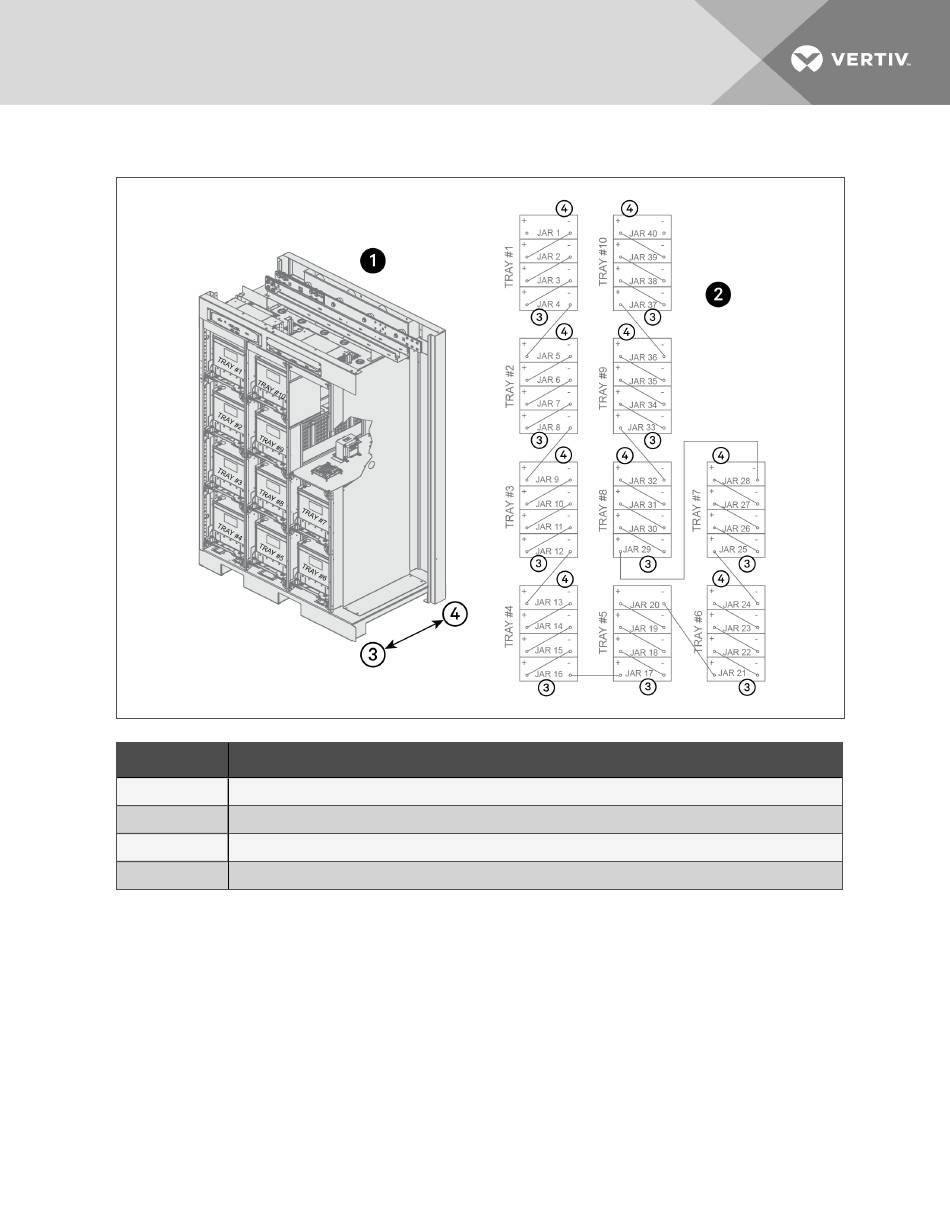

Figure 3.2 Top-Terminal Cabinet Battery-Interconnection Layout
Item
1
2
3
4
3.4 Interconnecting Battery Cables in a Front-terminal Cabinet
NOTE: Make sure that you complete all cabinet and battery interconnections before making any power cabling
connections. The interconnects are very hard to access after the power wiring is complete. Refer to the submittal
drawings that shipped with the battery system, or contact your Vertiv sales representative for the drawings.
Figure 3.3 on the next page, shows the interconnection between each battery tray and battery jar.
3 Electrical Installation
Description
Tray location
Cable interconnection
Front
Rear
13
